Gallery - Below you will find a showcase of some of our contracts completed in 2019.

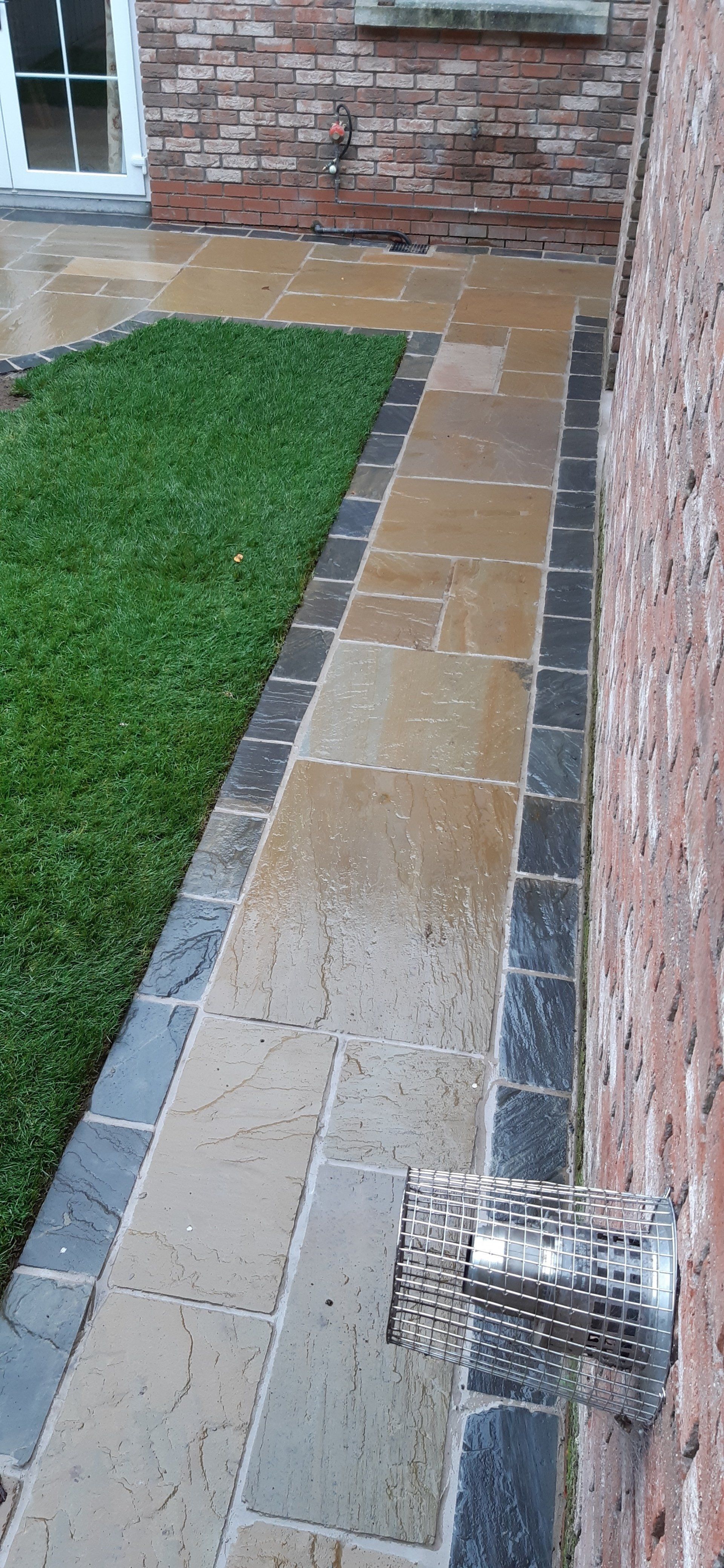

Install new patio area in back yard including drainage (under grass area & surface drain along driveway) retaining wall and new instant turf. Using natural sandstone flags and black lime stone border from Irish stone, Securalite retaining blocks from Tobermore and instant grass.

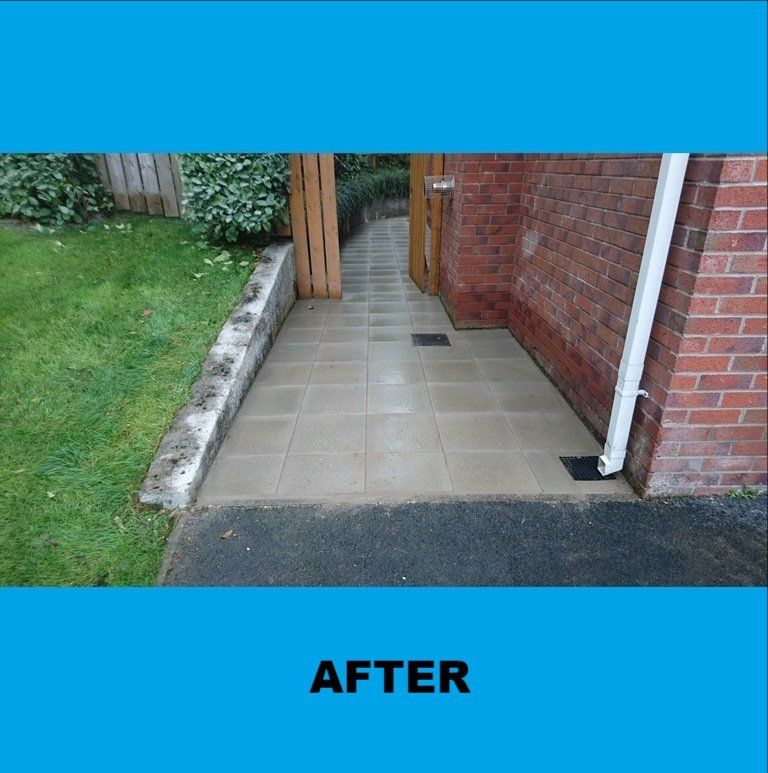

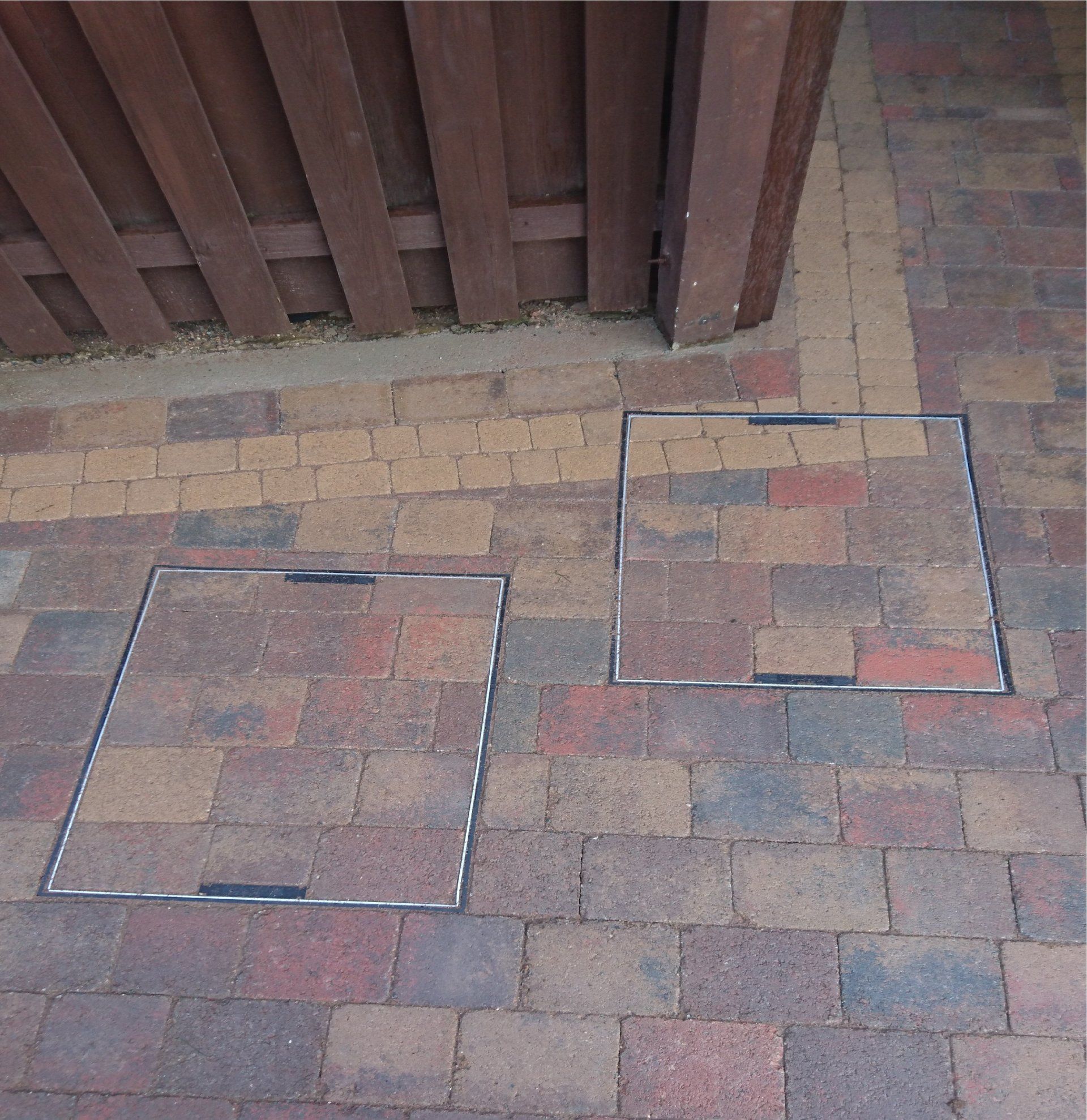

Replace old patio with new Mayfair silver flags with Sienna charcoal inlay including matching steps to patio area and back door. New drainage covers and pipework installed.
View more

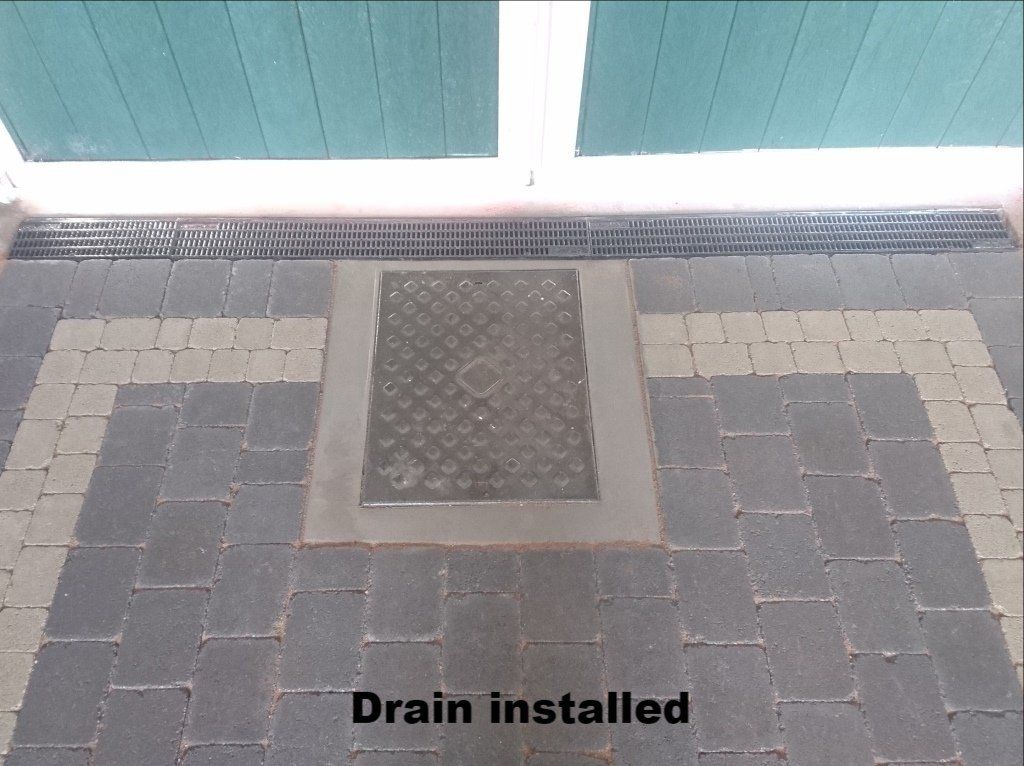

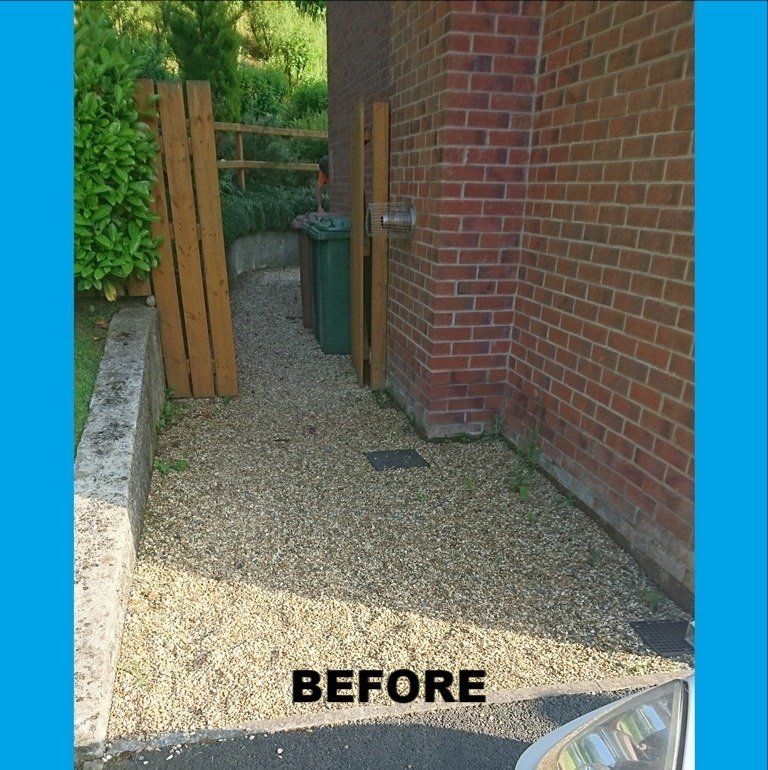

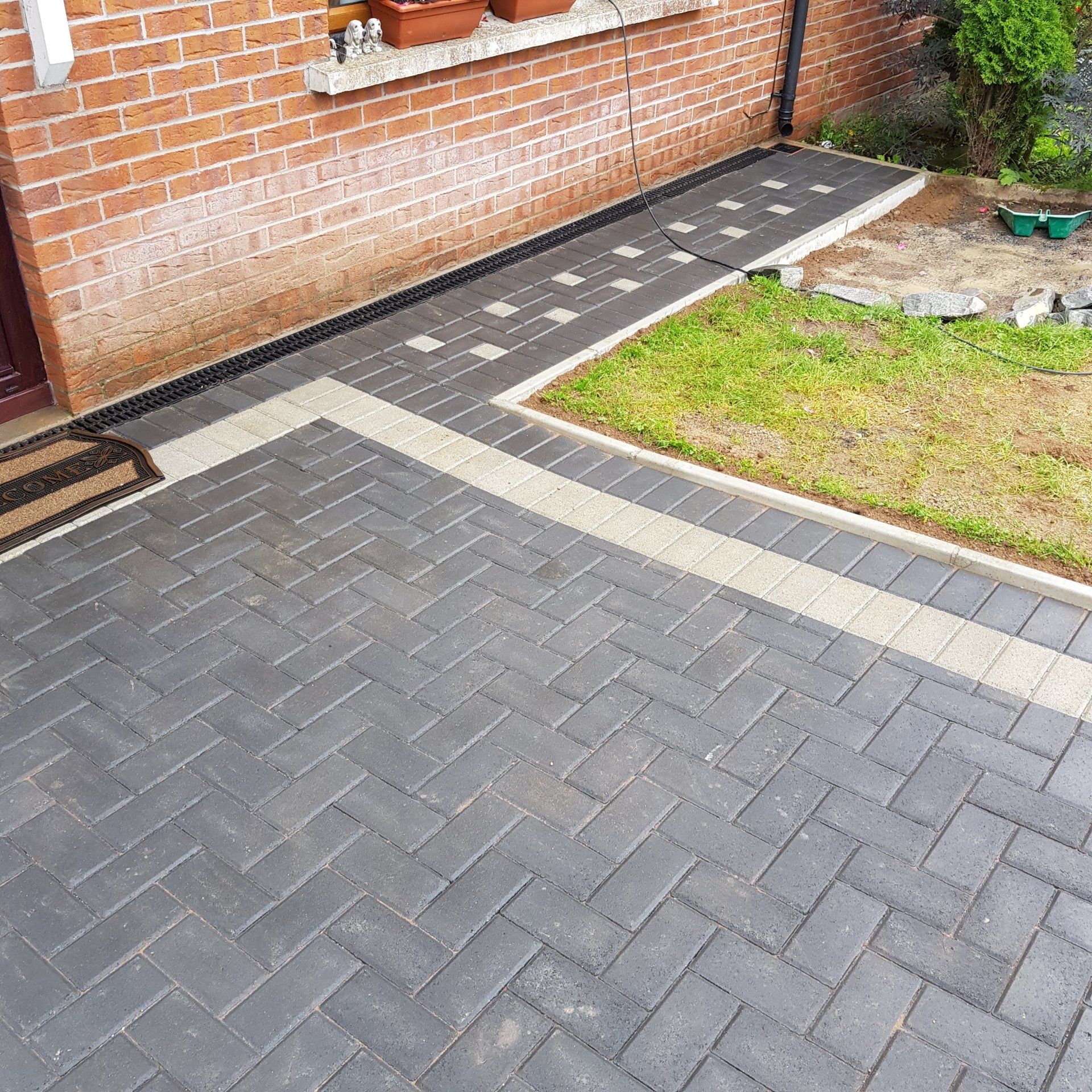

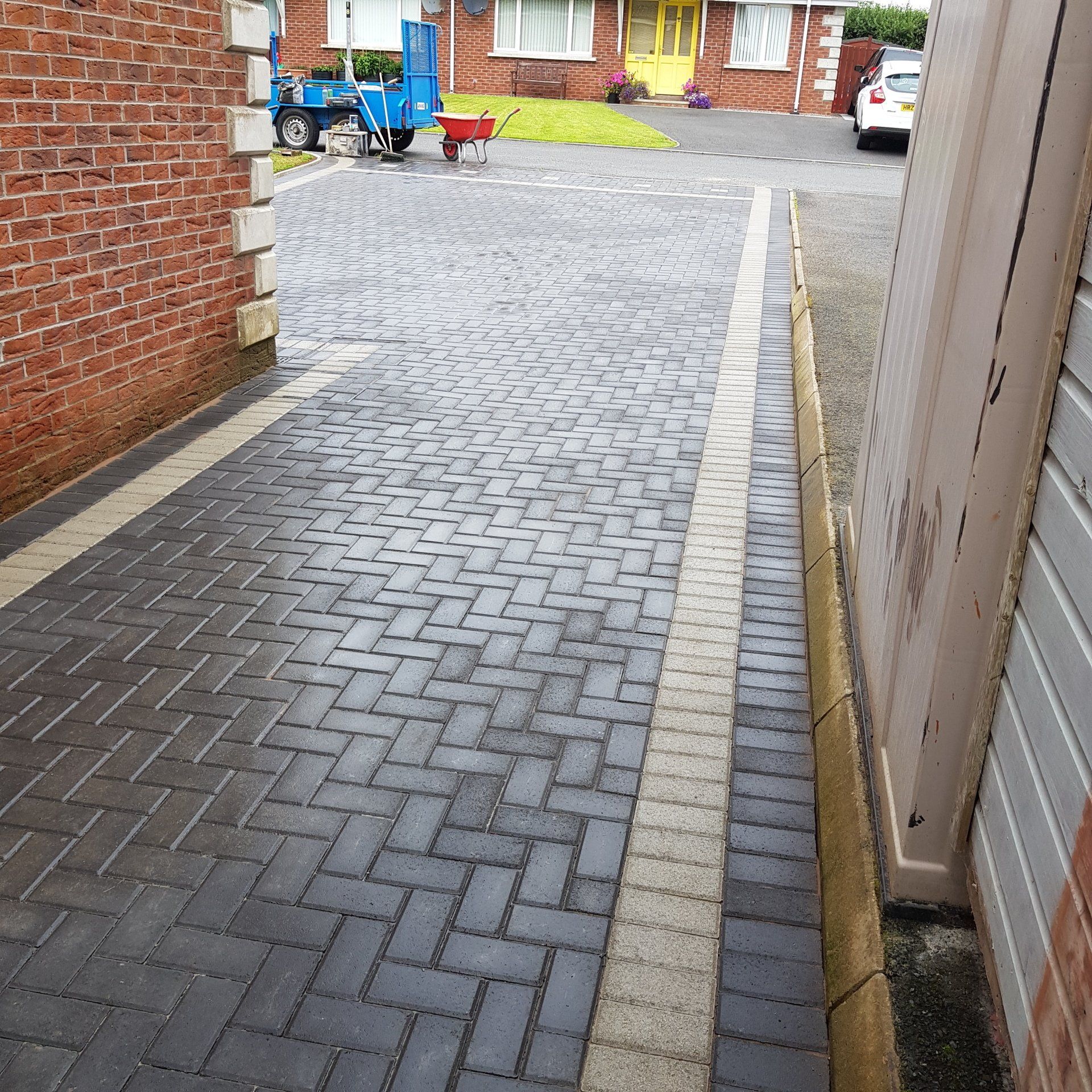

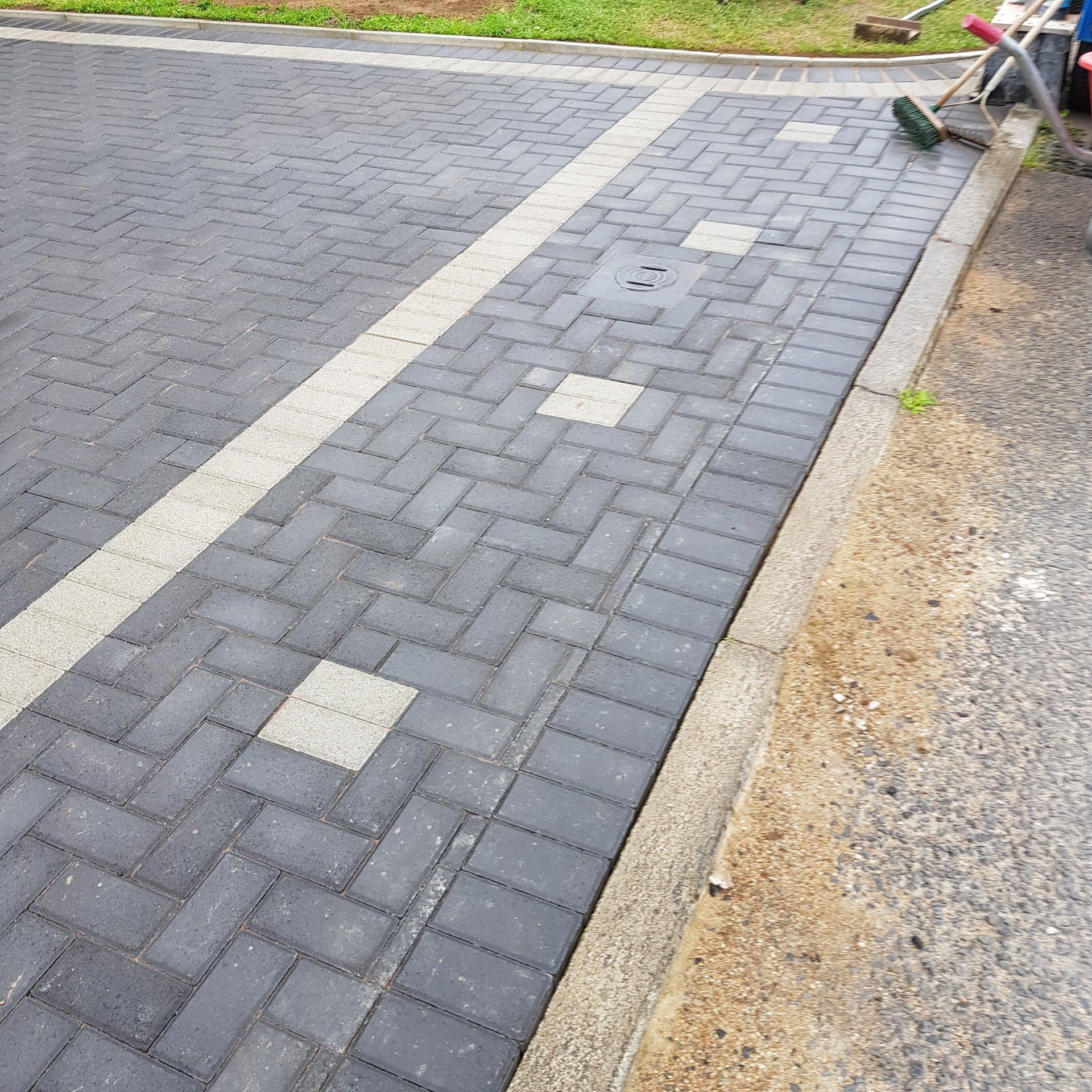

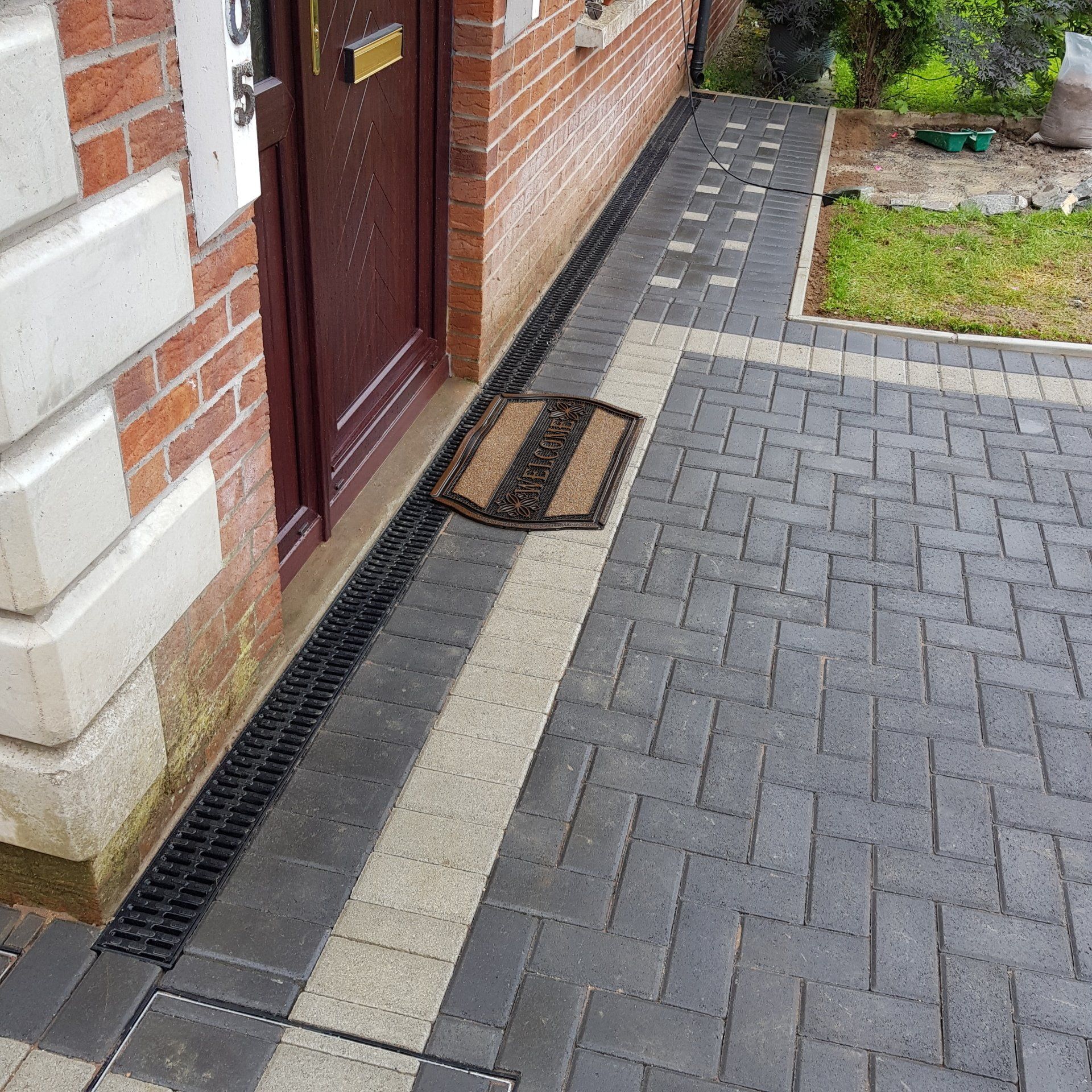

Replace existing stone alongside side of house with new Pedesta charcoal and natural paving blocks, installed new Step and installed new Clarke drain along front of house.
View more

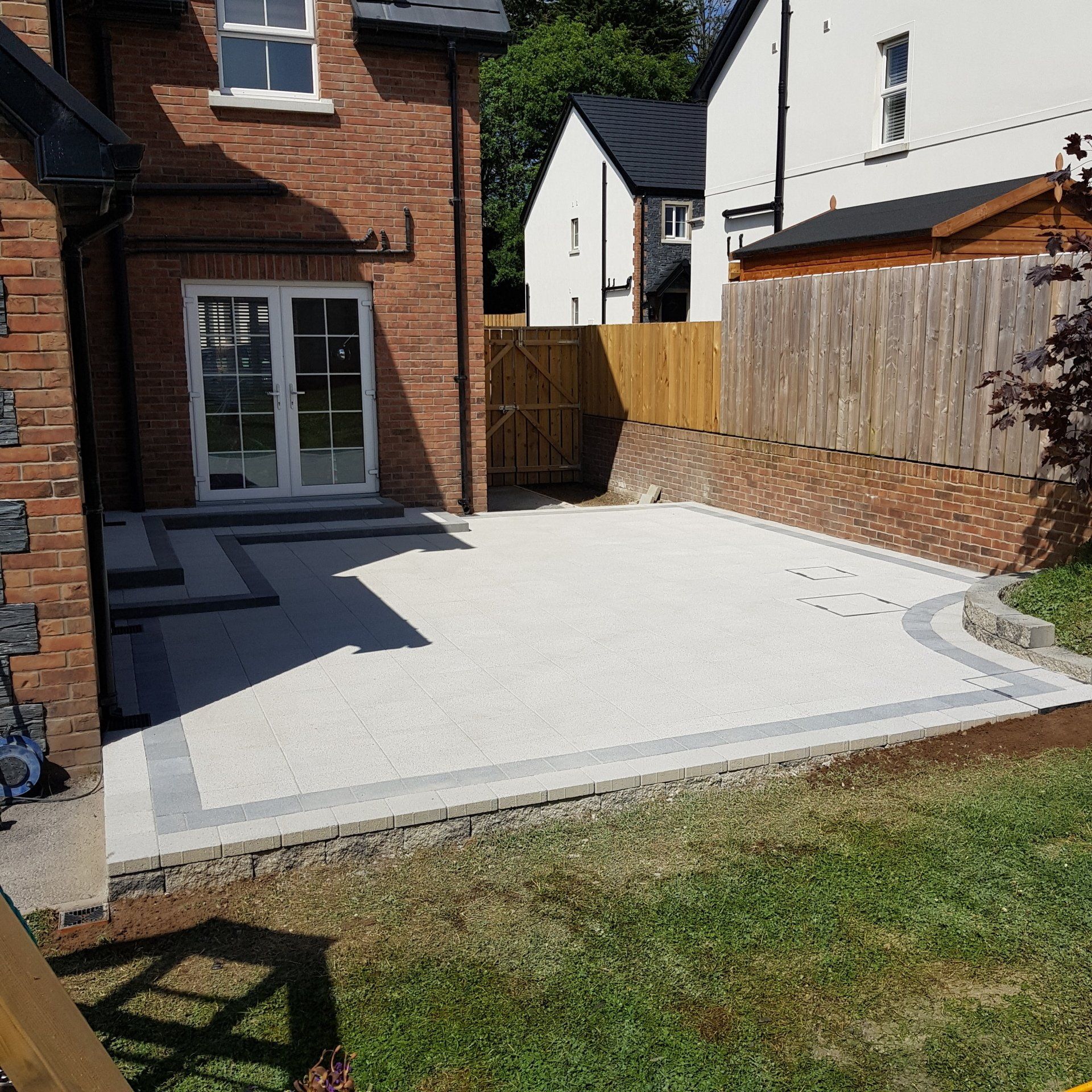

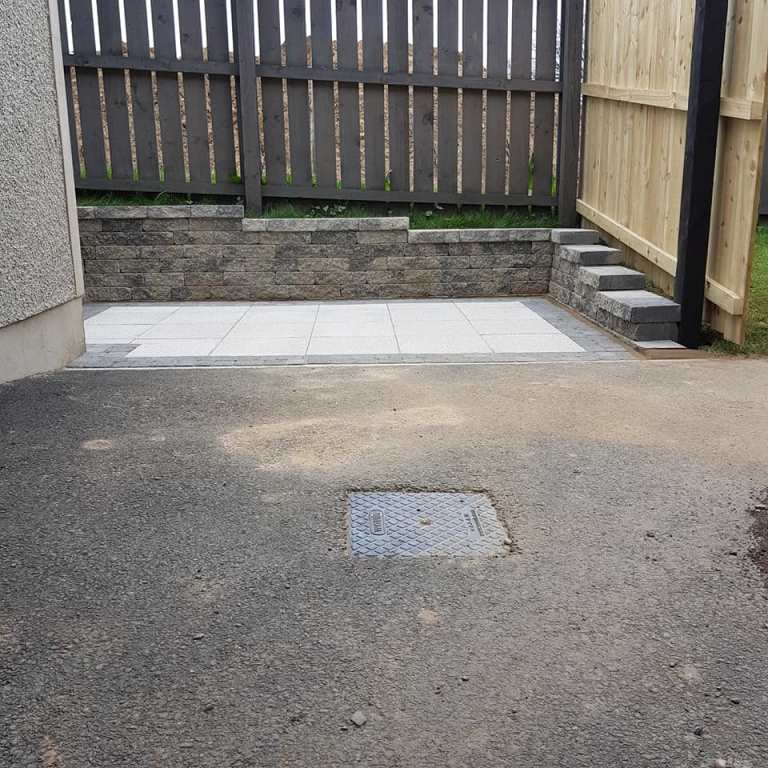

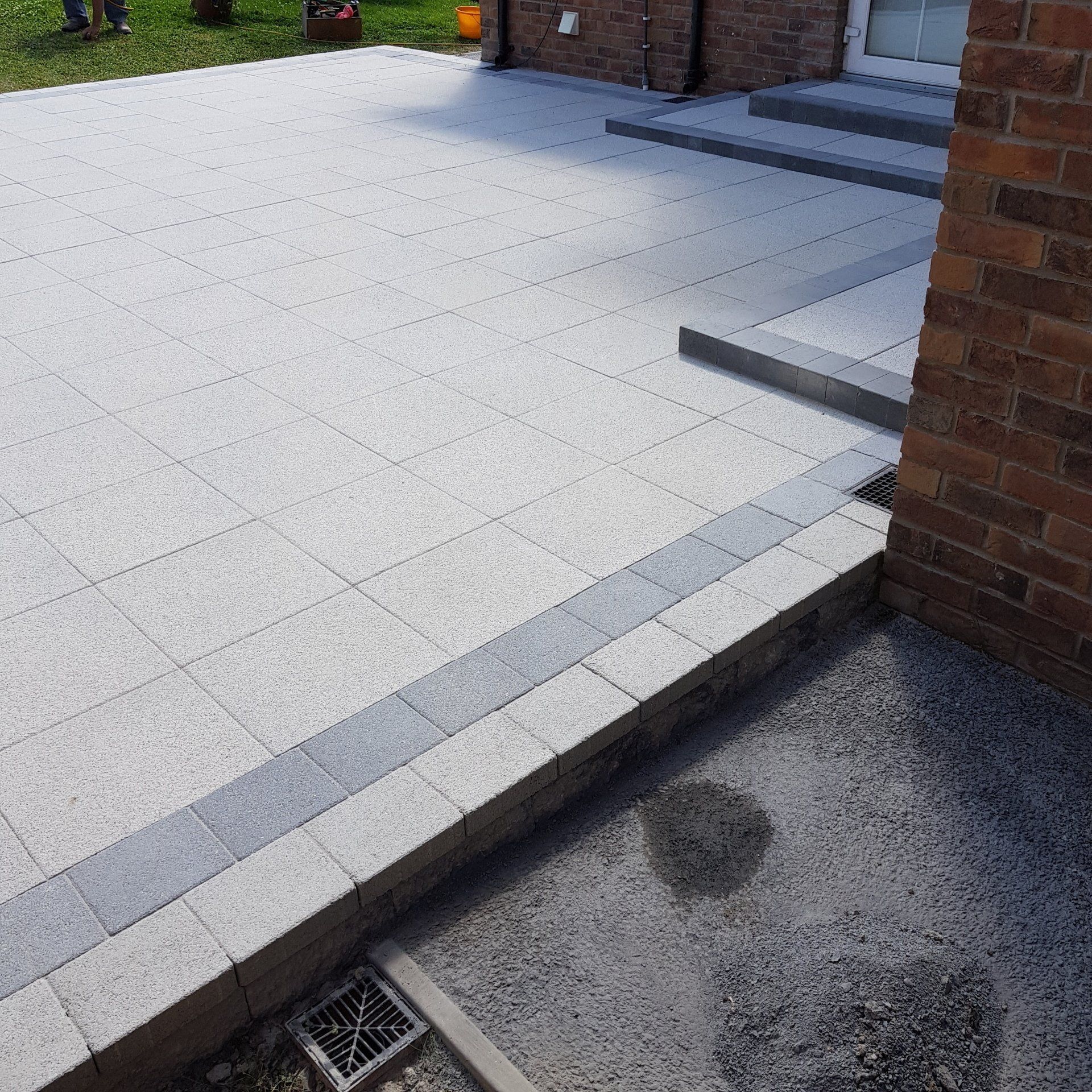

Job completed 12th April 2019, laid new patio area using Tobermore Mayfair silver with Tegula charcoal border. Also constructed ramp pathway to back door and paved the bin area and constructed securalite retaining wall.
Job completed 22nd March 2019, replacing grass area with Tegula slate paving blocks and pedesta charcoal border.
Job completed 8th March 2019, replacing grass area with Tegula heather paving blocks.

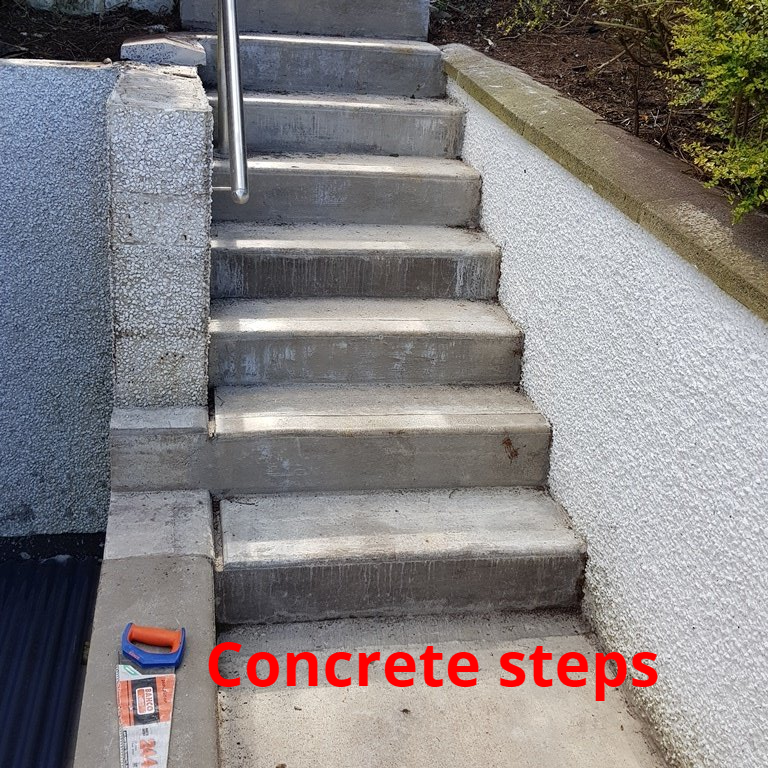

A job that we have been busy with during the beginning of 2019 which included construction of a concrete path replacing existing 3x2 flags, concreting alongside garage including drainage. Paving and steps to patio area in front of house and construction of a new bespoke tool shed.

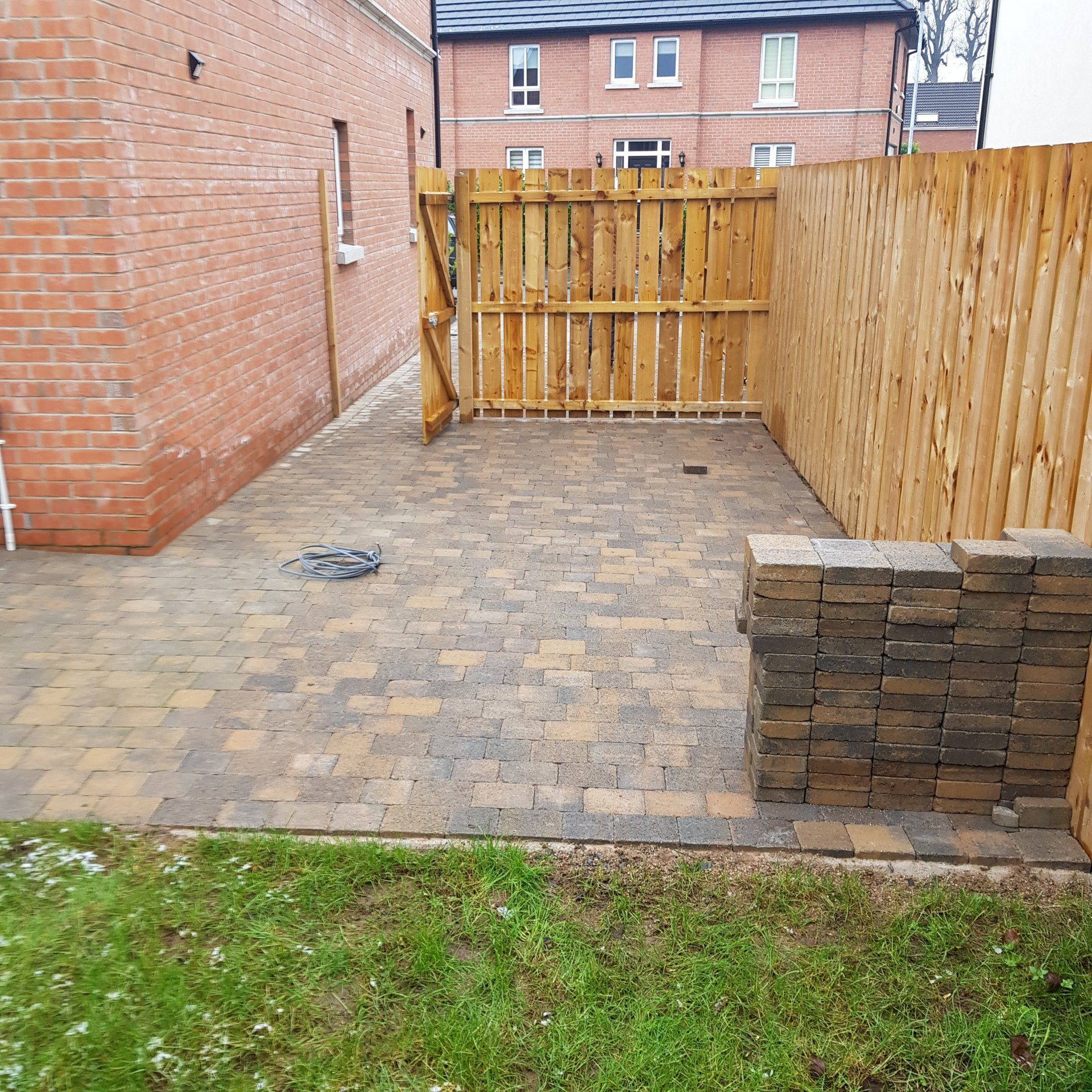

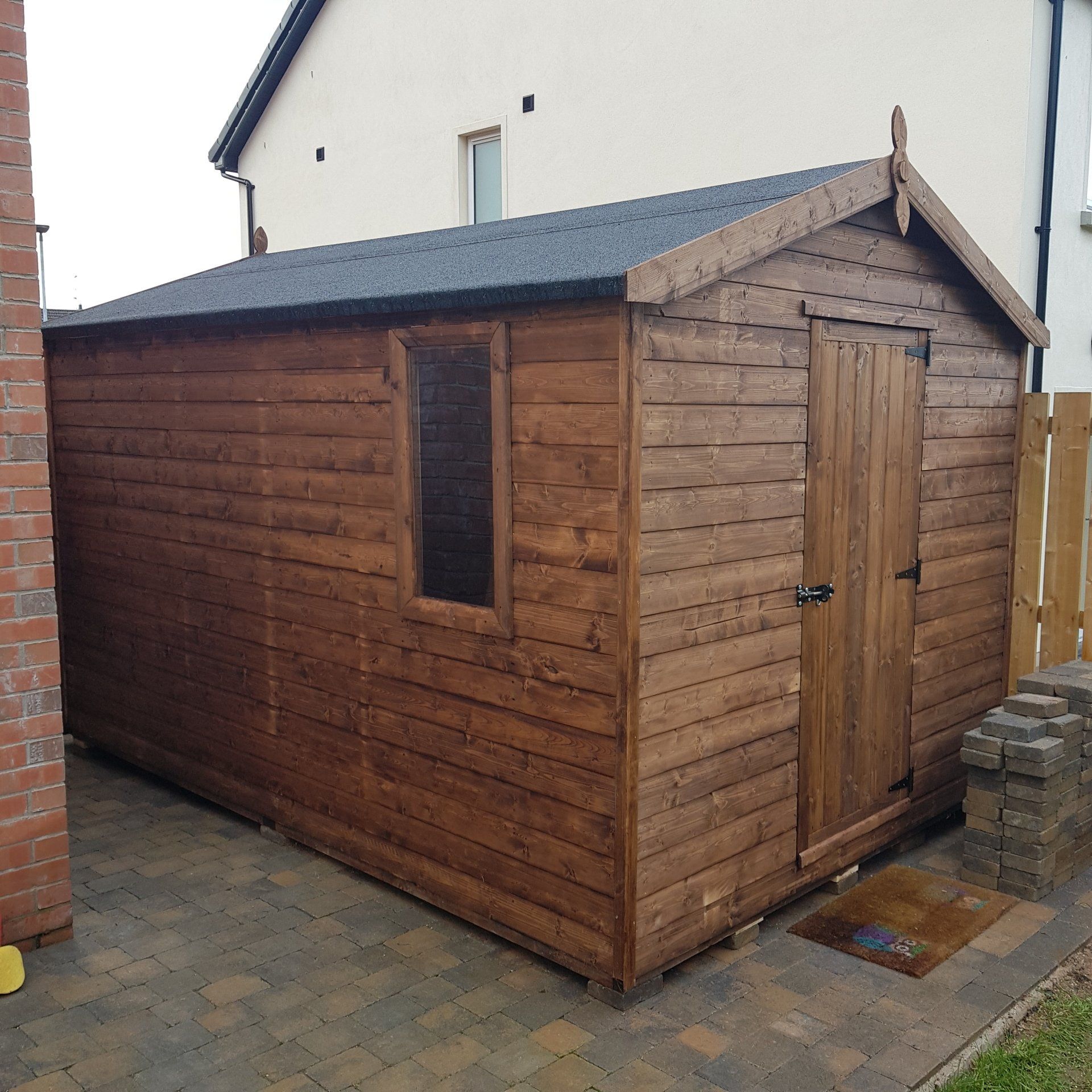

Job completed 24th January 2019. Extend existing paving alongside side of house with new Tegula Bracken paving blocks, installed new Aheadinsheds 12 x 8 shed and installed electrical sockets and lights.
Gallery - Below you will find a showcase of some of our contracts completed in 2018.
Job completed 12th December 2018. Construct concrete base for shed and erect 10ft x 13ft (3m x 4m) Yardmaster shed.

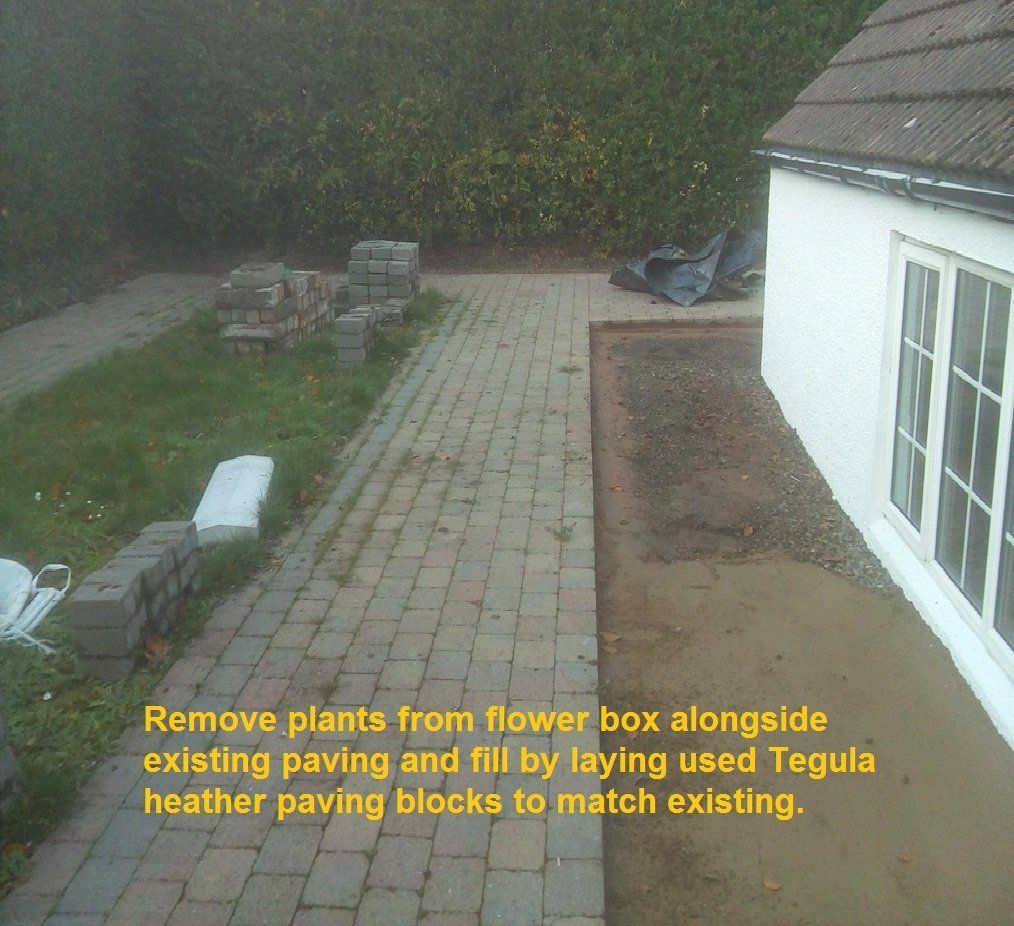

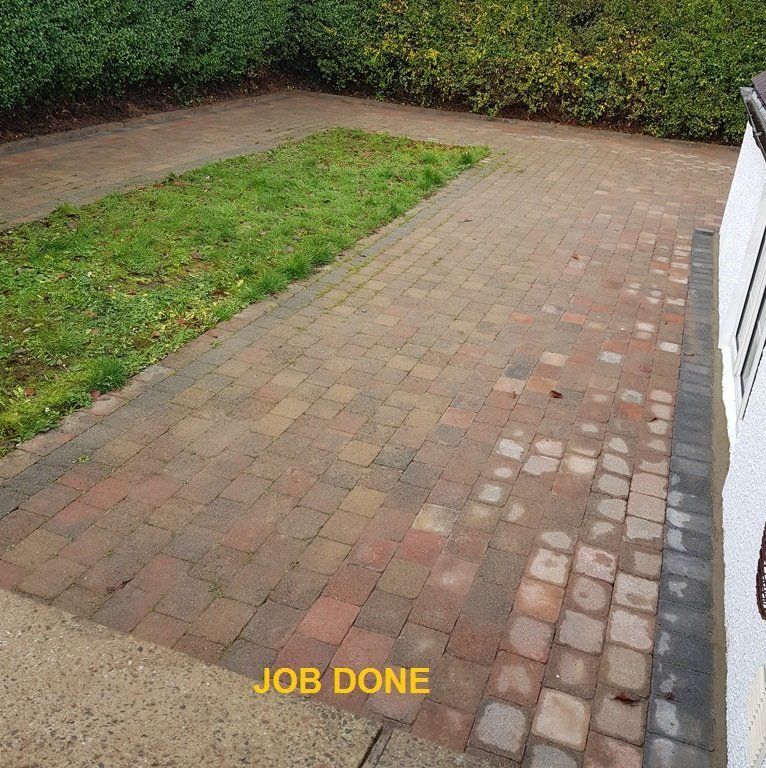

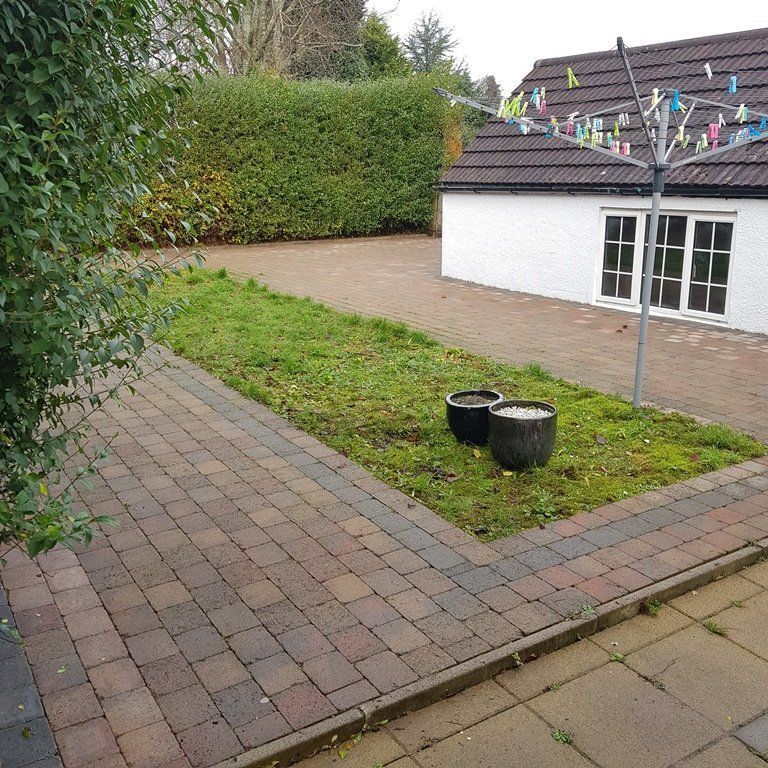

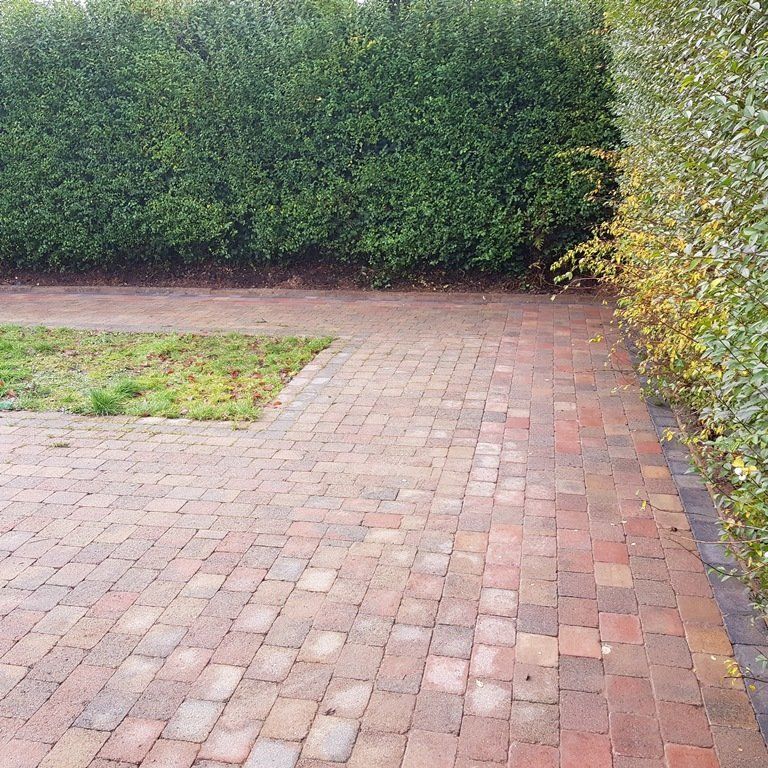

Job completed 4th December 2018. Lay used Tugela heather paving blocks to outer area of existing paving that was originally a flower bed. Vegetation was removed then compacted, a weed barrier blanket was laid and on top of this a layer of type 1 sub-base was placed and compacted. A screed layer of bedding sand was then placed onto which we laid some used paving blocks removed from a previous contract. The blend turned out very nice as it is difficult to tell the new area from the old.

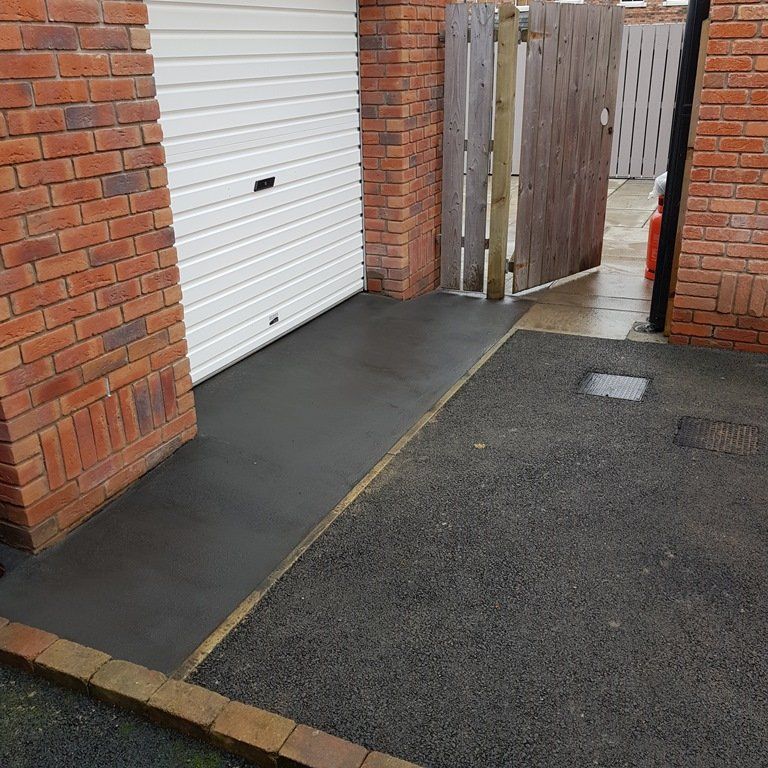

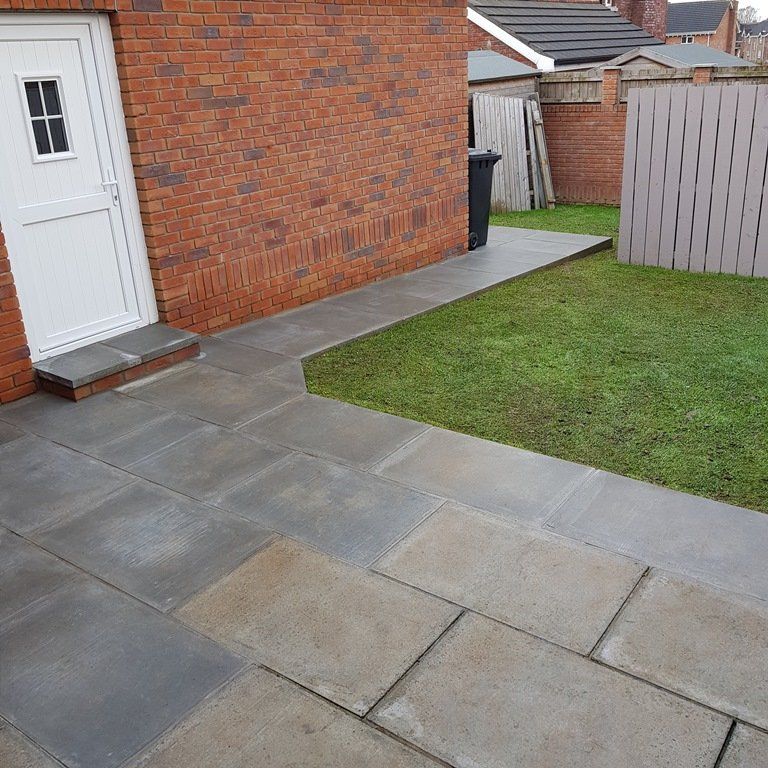

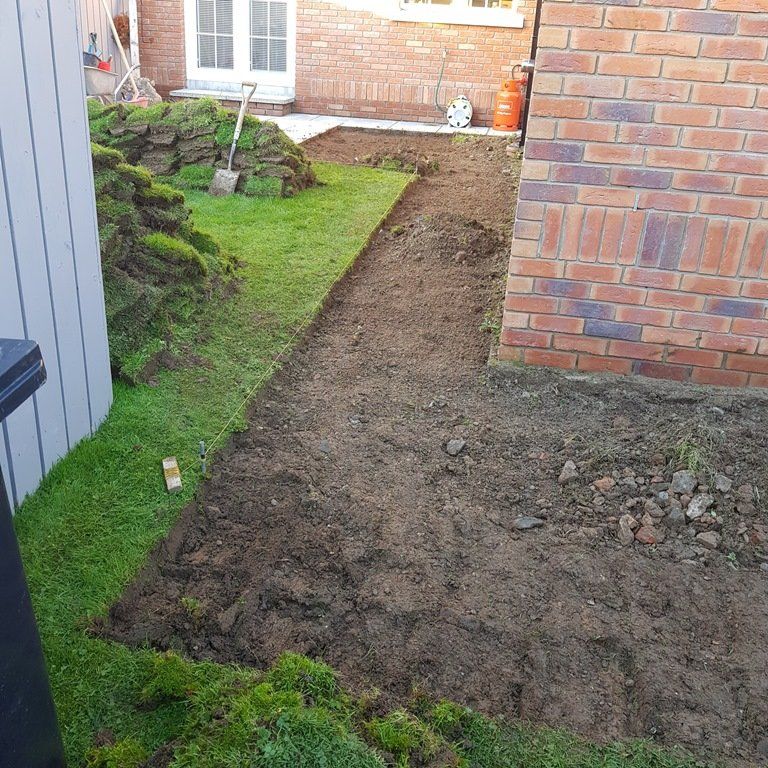

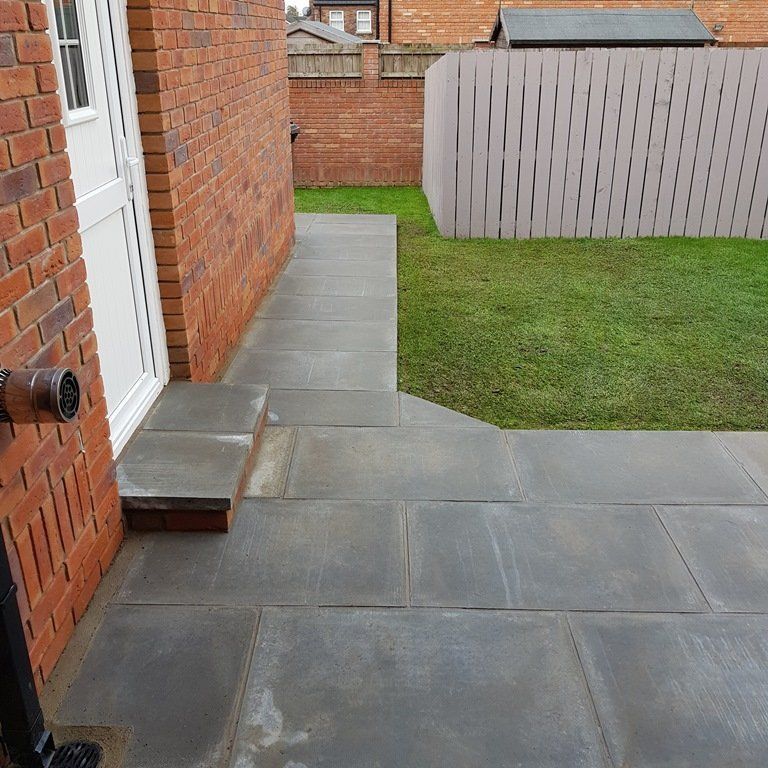

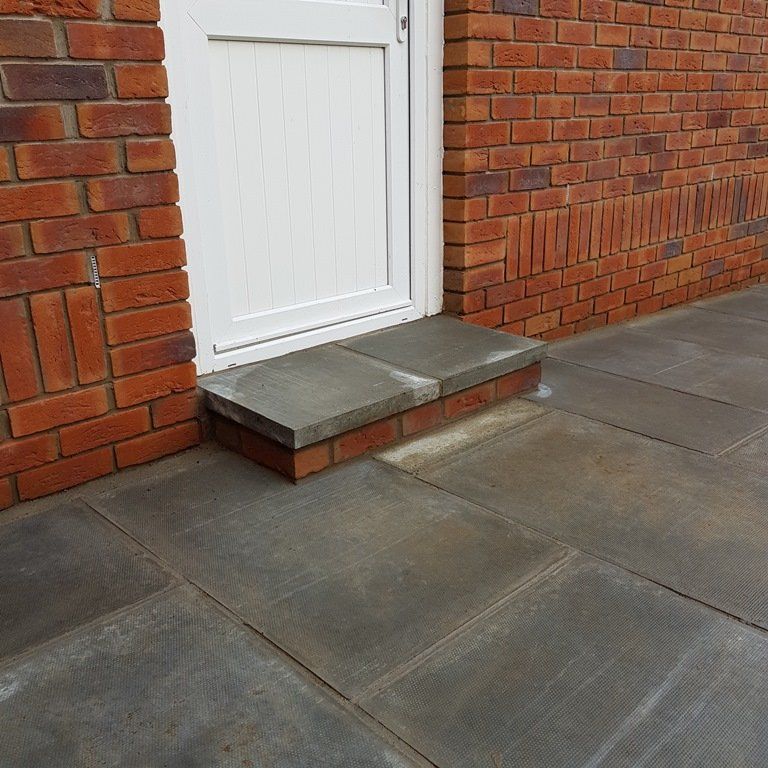

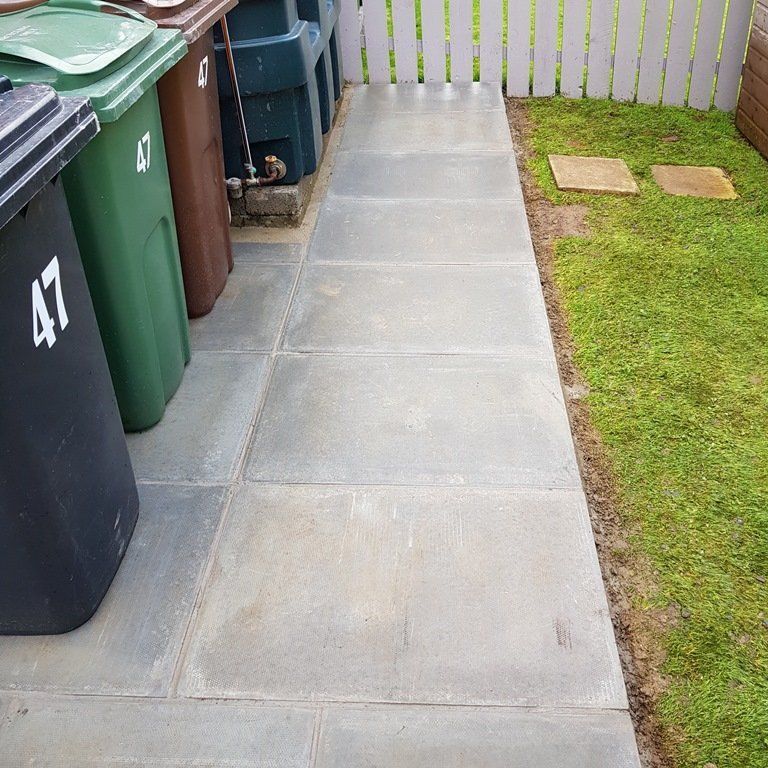

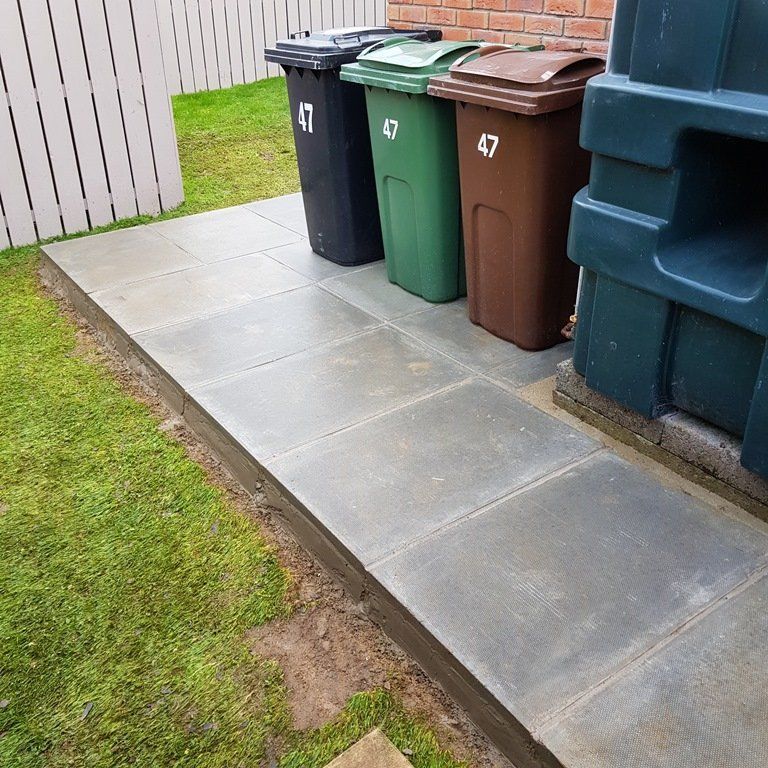

Job completed 20th November. Lay standard 2 x 4 flags to back yard including garage step, re-position gate and concrete (Black concrete) to garage ramp.
*****
(5 STAR Rating :source FB)
" Superb job
The guys did a superb job extending our paving round our new garage. The job was very competitively priced and Renier came to see us a couple of times to make sure we were happy with his plan. They were tidy through out the job and the end result was exactly what we wanted. Renier even went to the bother of adding a triangular slab so our bins would fit past the step and added black oxide to the cement ramp at the front of our garage so it would match the existing tar. Great job. Highly recommended.
CM."

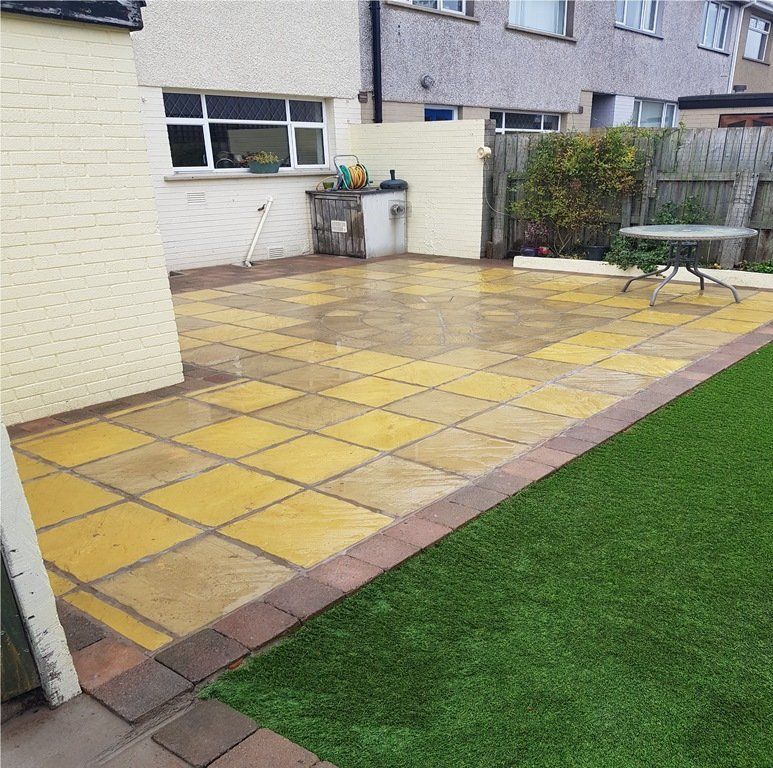

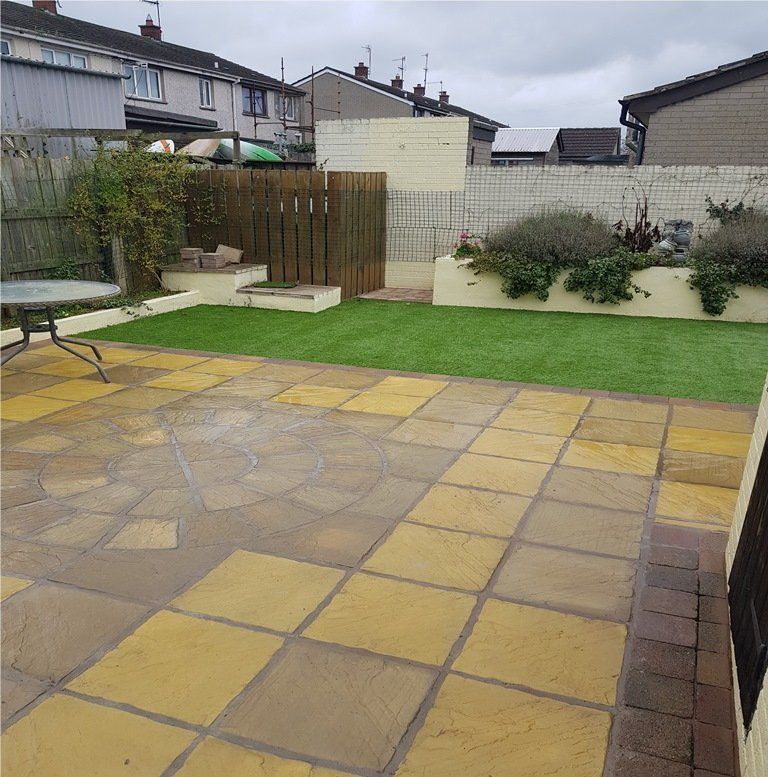

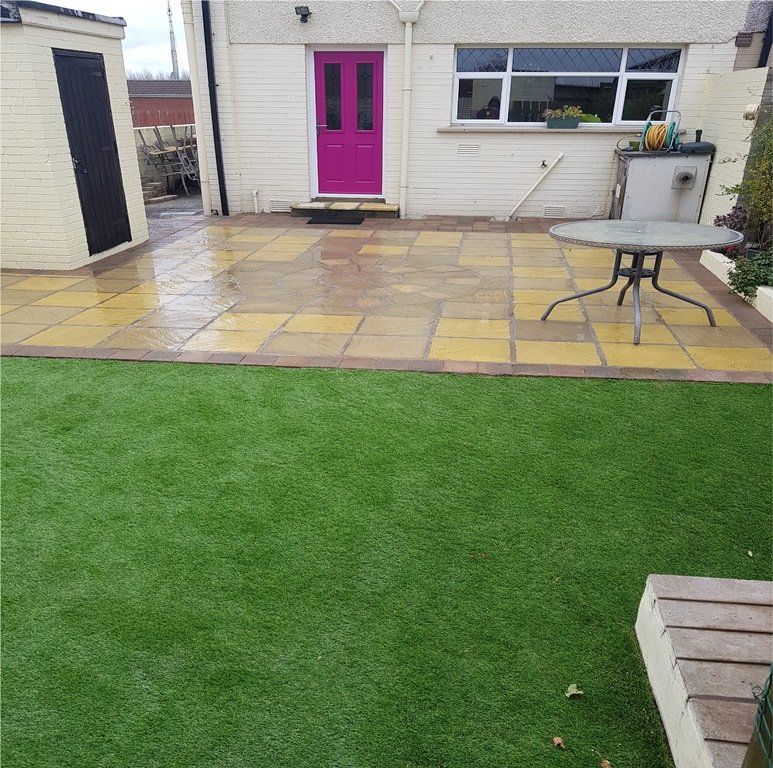

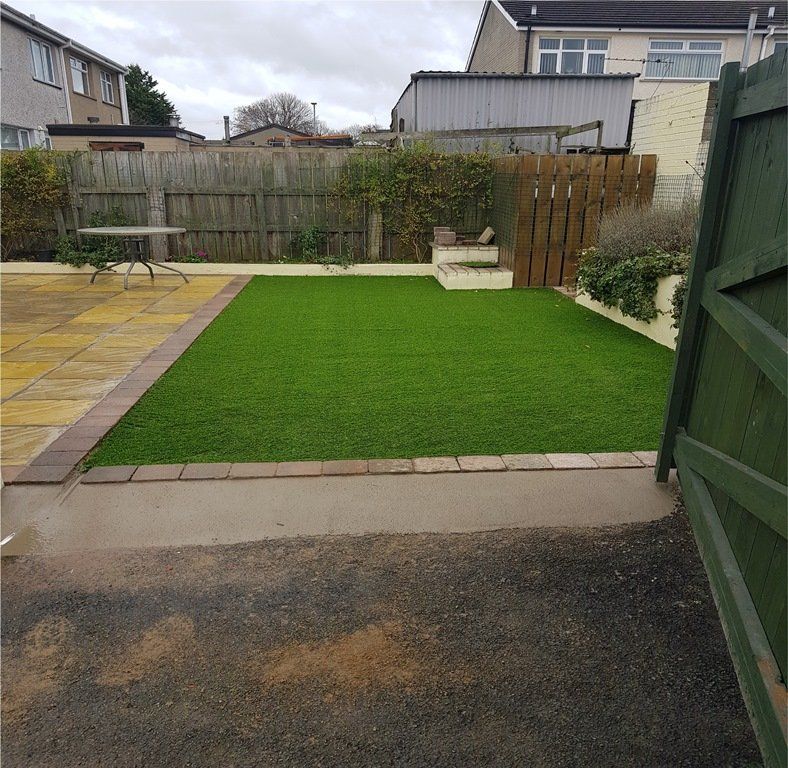

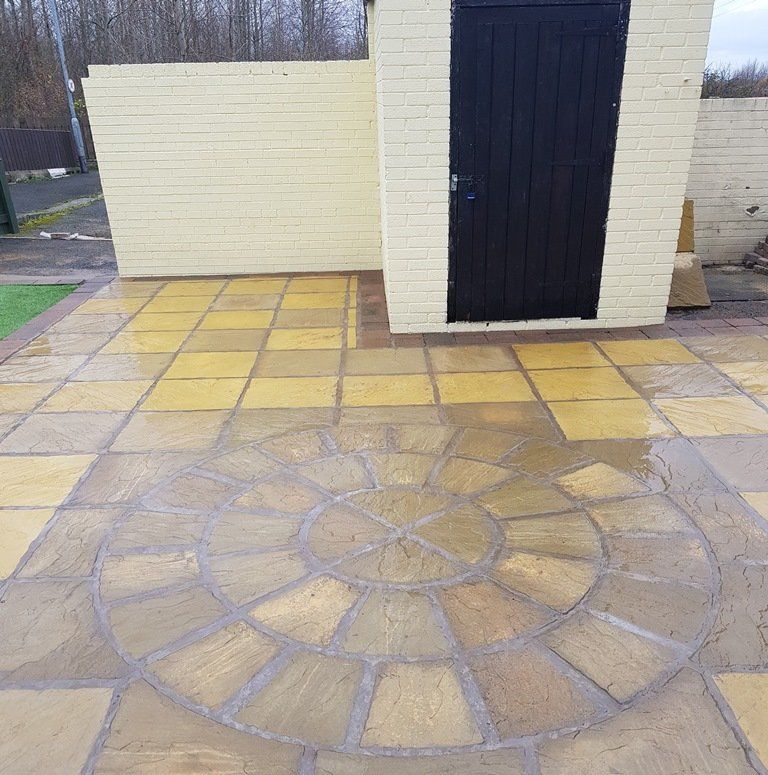

Job completed 6th November. Lay Sandstone flags to back yard including Tegula blocks at back door and lay artificial lawn to back area of yard total area 32 m2.

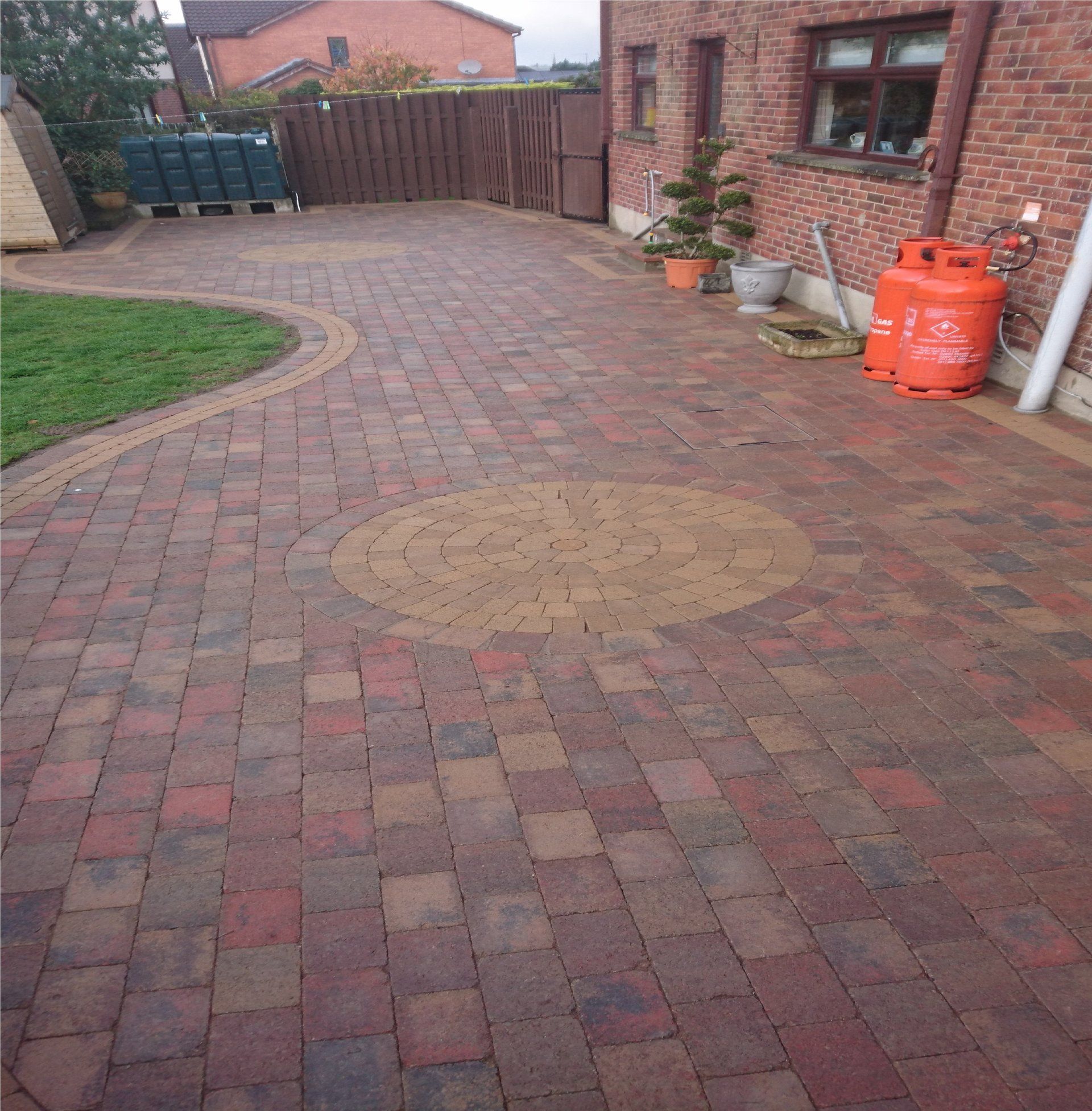

Job completed 26th October. Lay 78m2 Tobermore Tegula heather paving blocks to back yard including Garden stone wall, back step and flowerbed.
Job completed 1st October. Lay 32m2 Tobermore standard 400x400 natural flags to back yard and pathway.

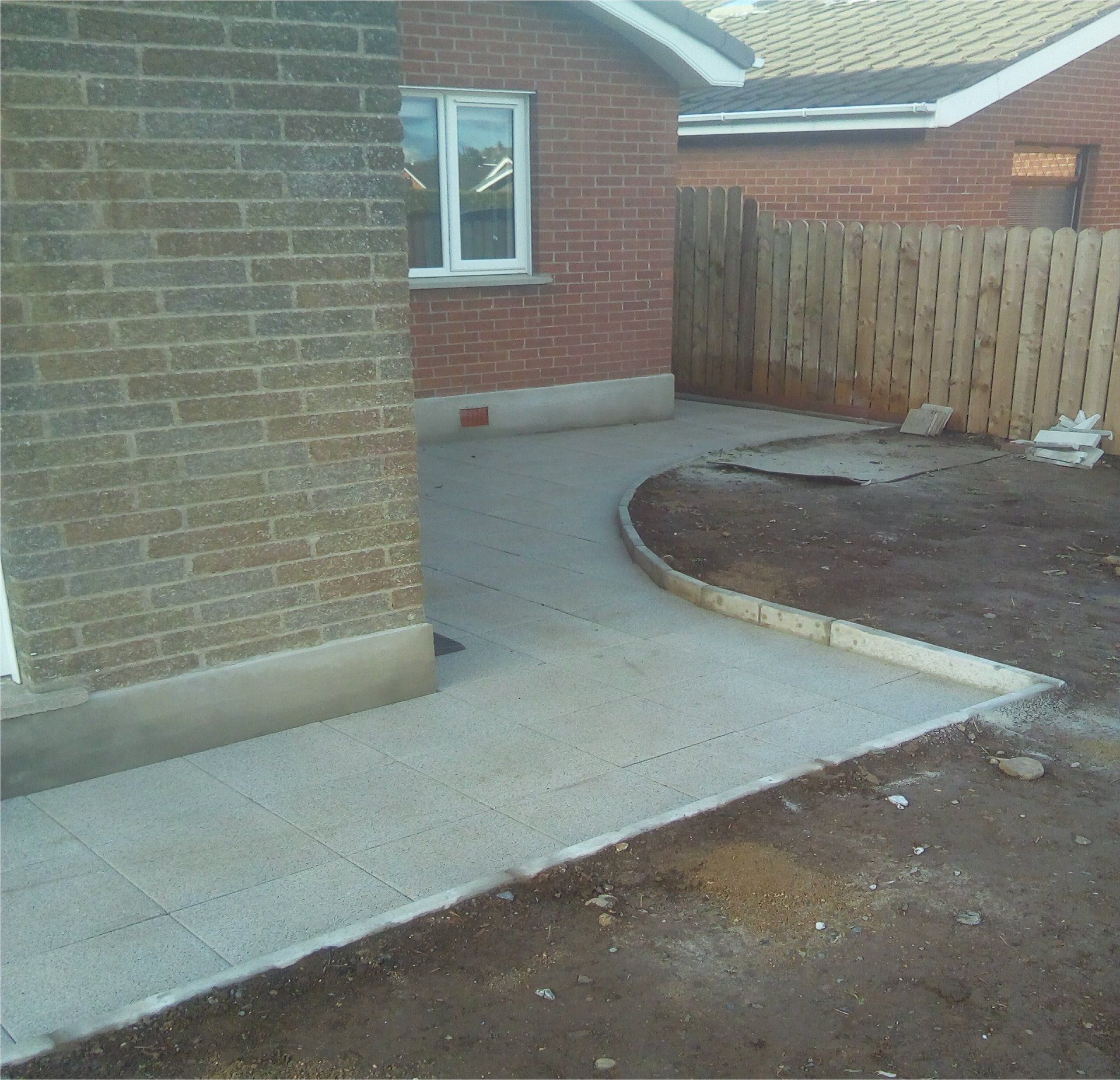

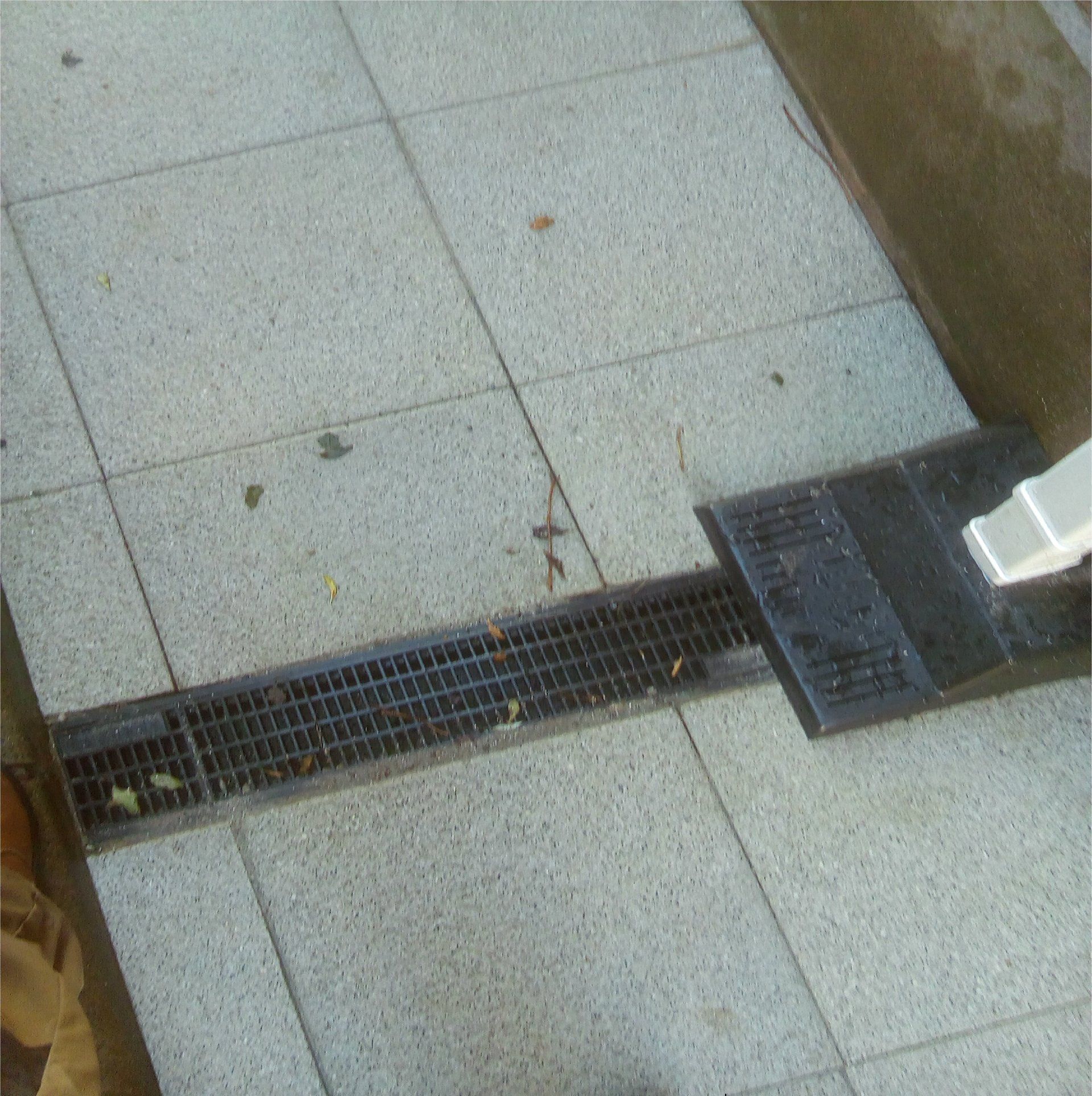

Job completed 21th September. Lay 26m2 Tobermore Mayfair silver flags to front pathway

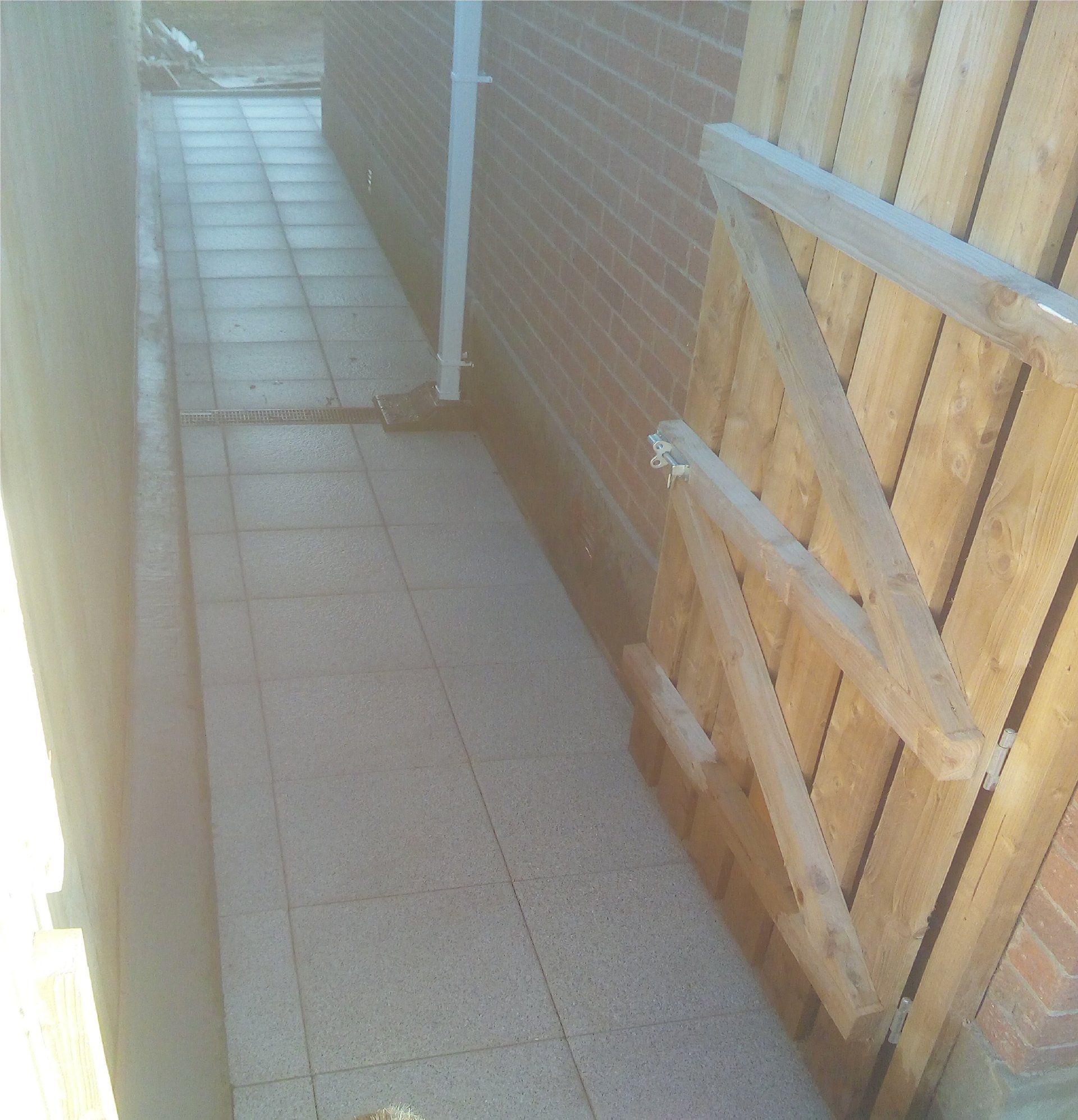

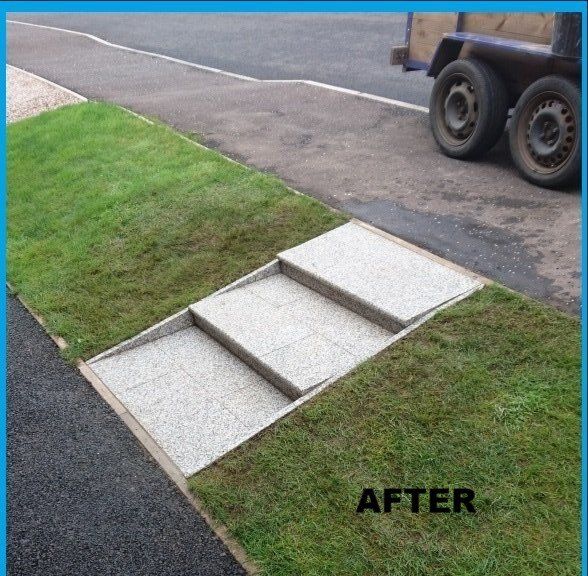

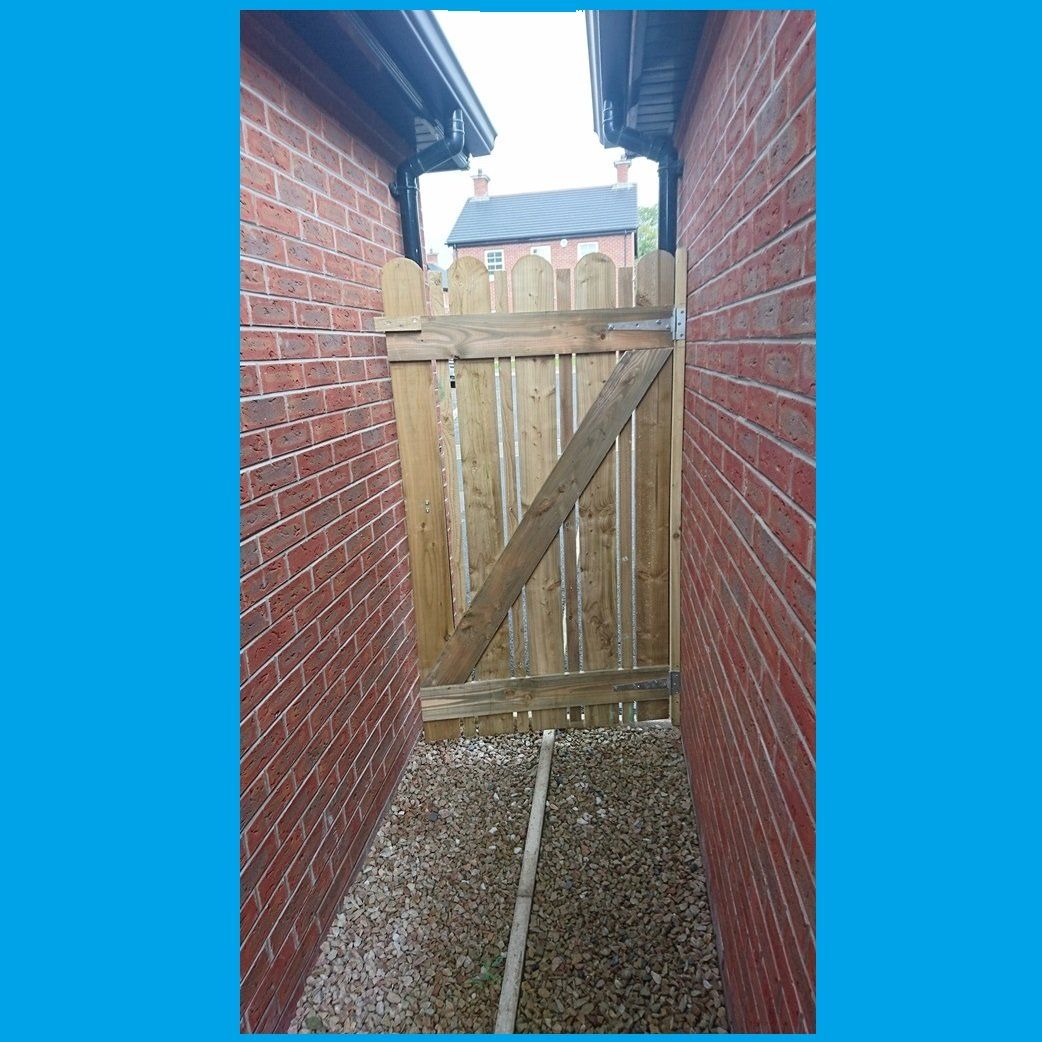

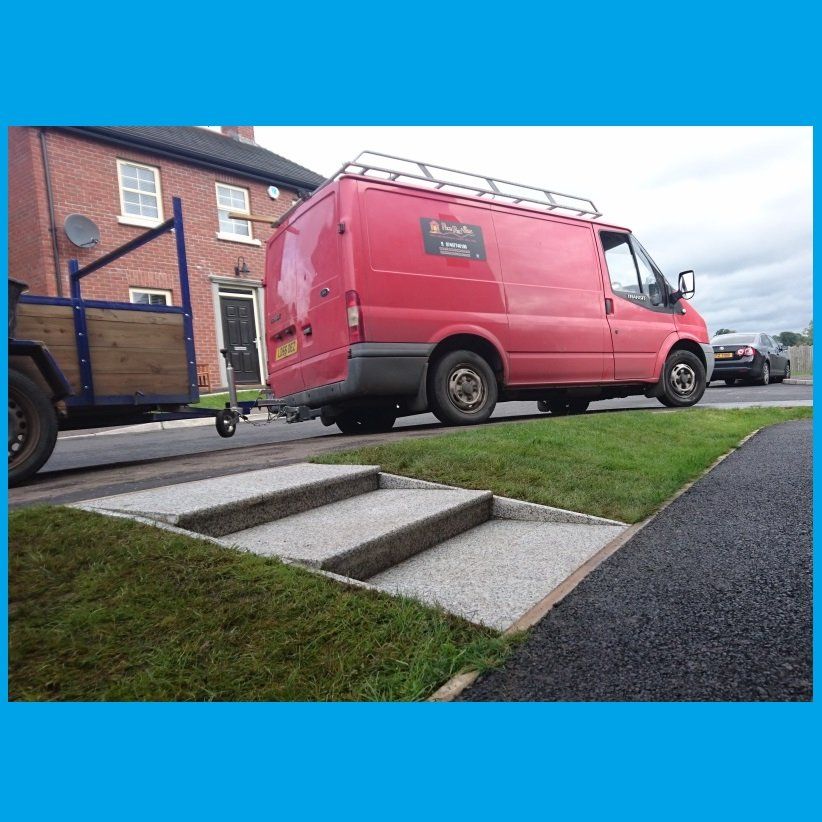

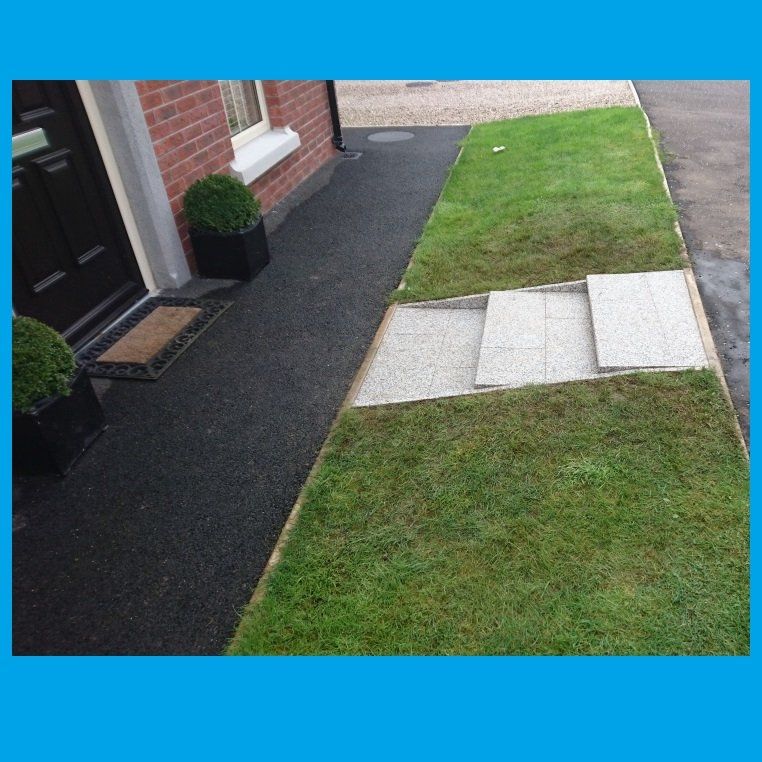

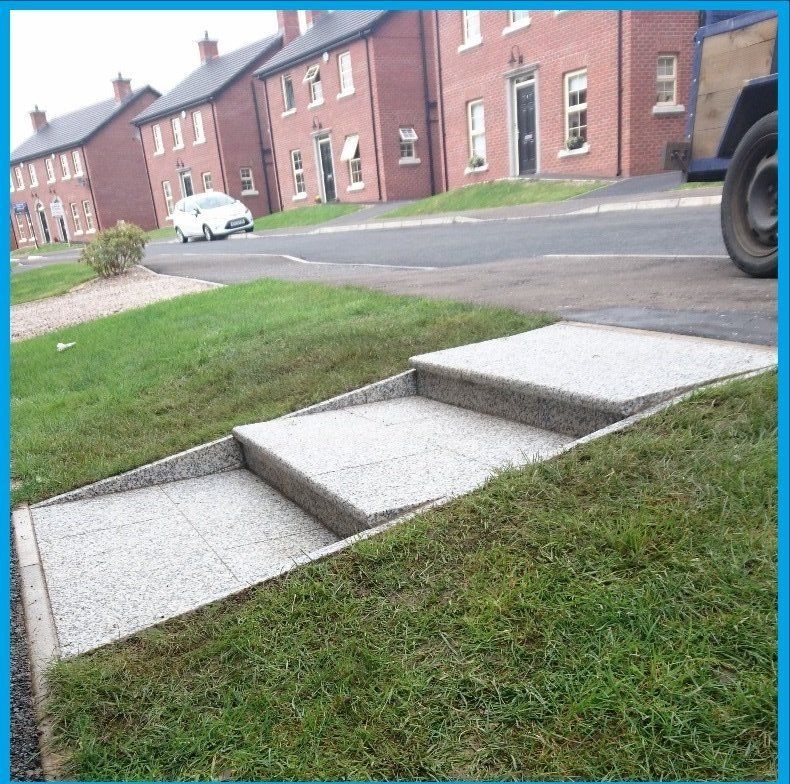

Job completed 14th September. Construct new steps using natural granite and construct new timber gate to match existing fence and install.
*****
(5 STAR Rating :source FB)
"Construct steps & gate
Exceptional standard of work. Competitive rates. Knowledgable and well organised. Nothing is too much trouble.
I have no hesitation recommending Renier and Reece. Any further work in the future I will definitely be getting in touch.
KM. "

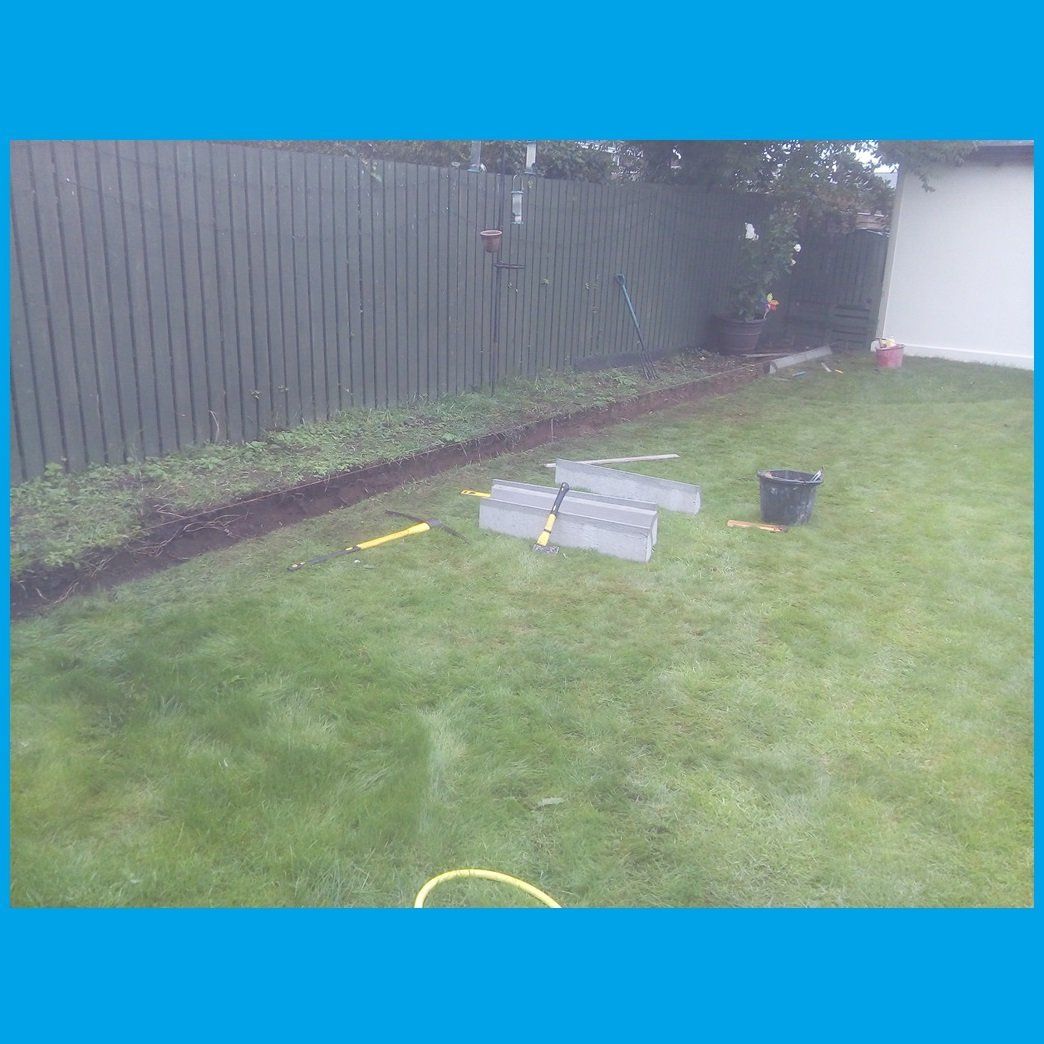

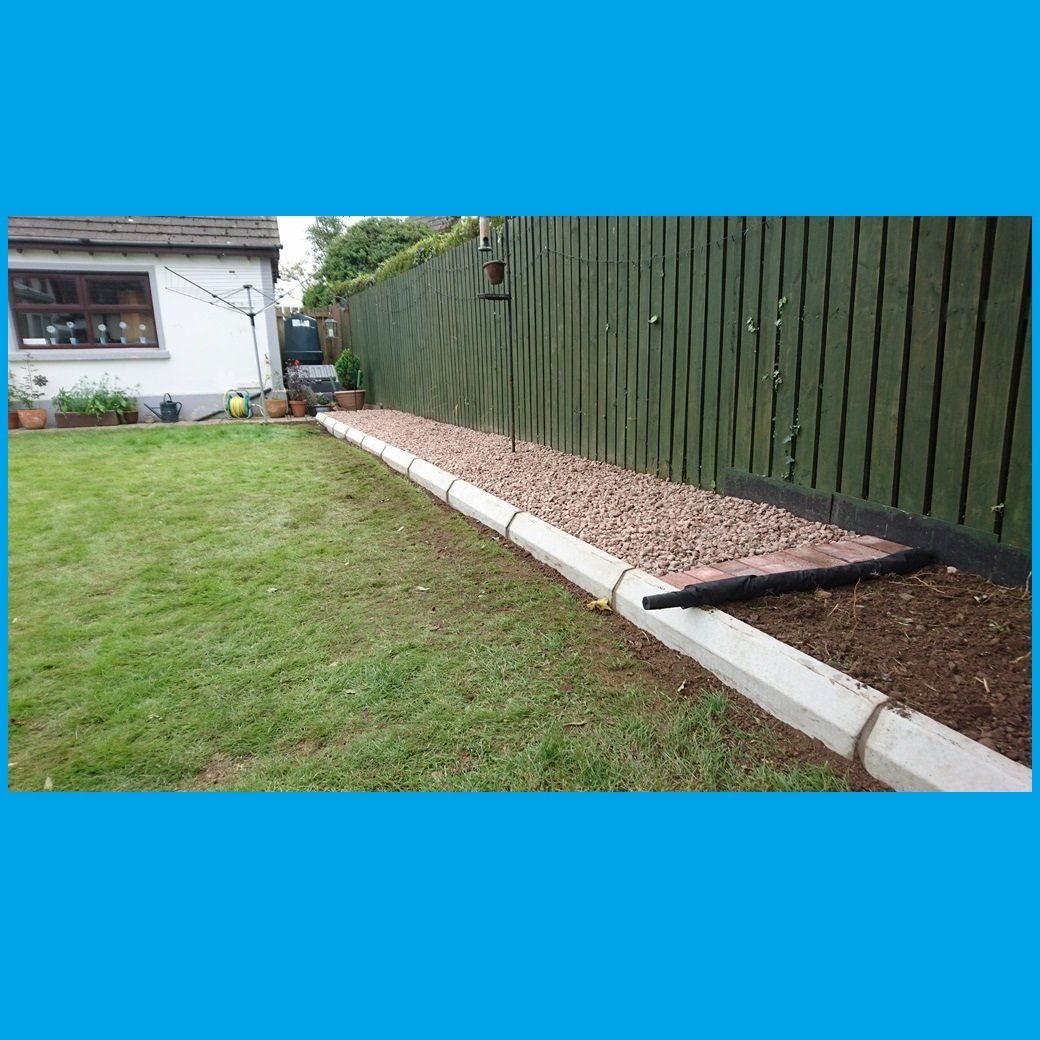

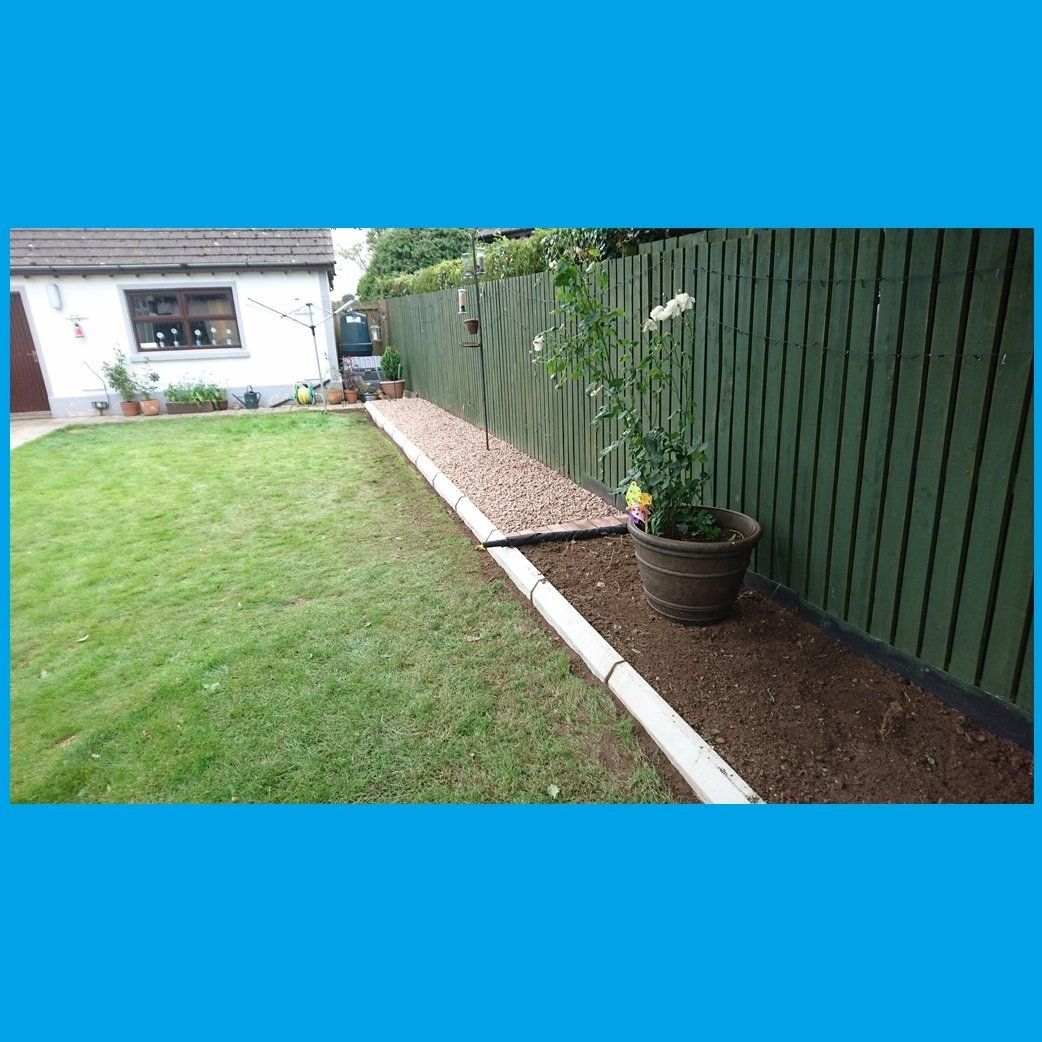

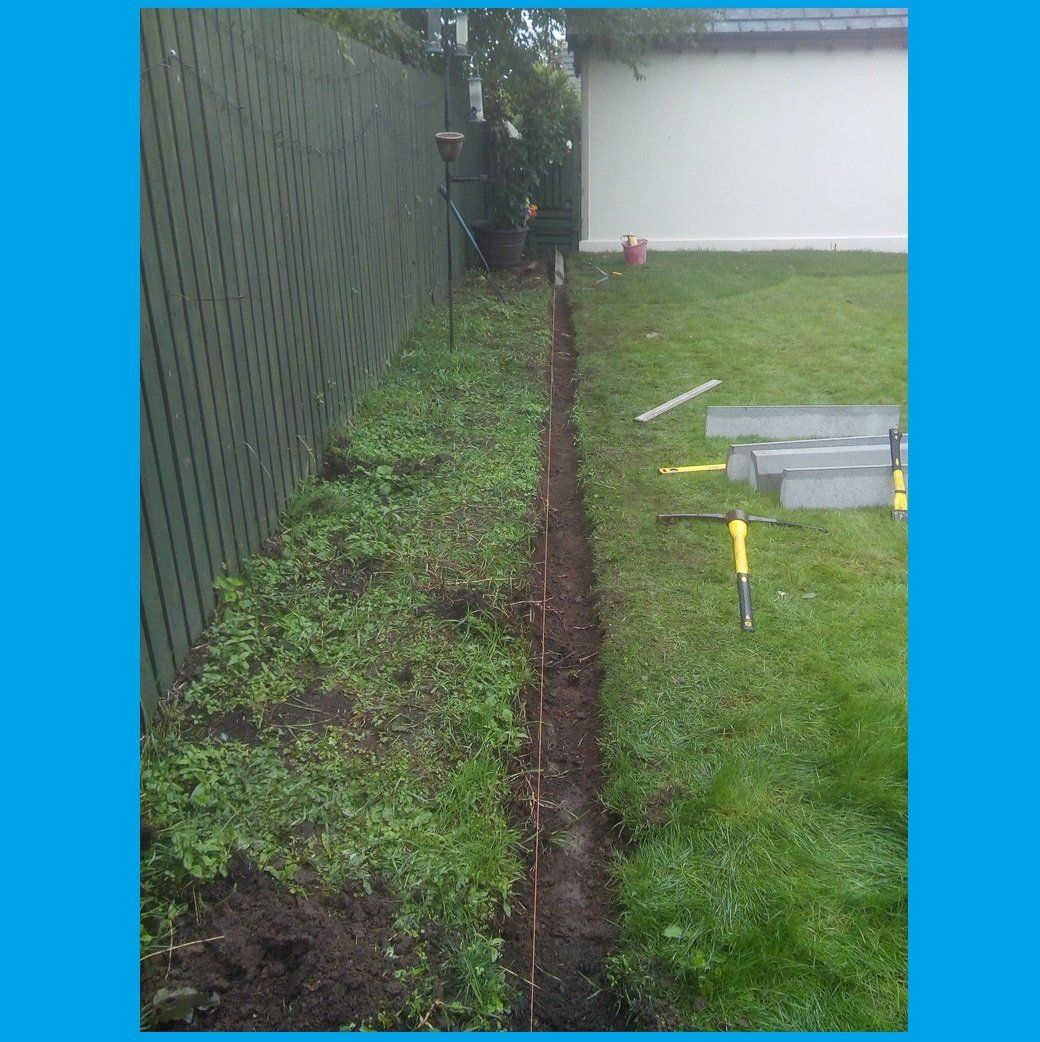

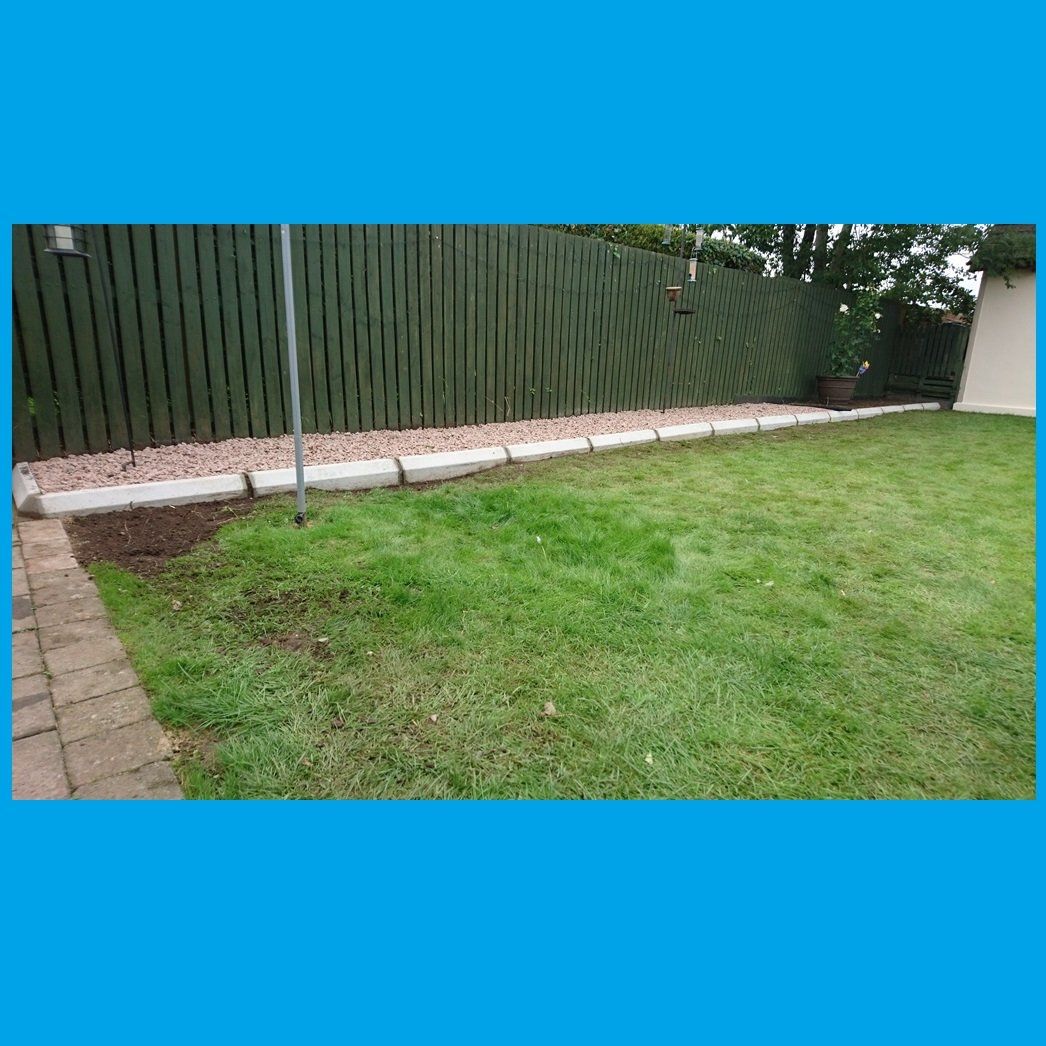

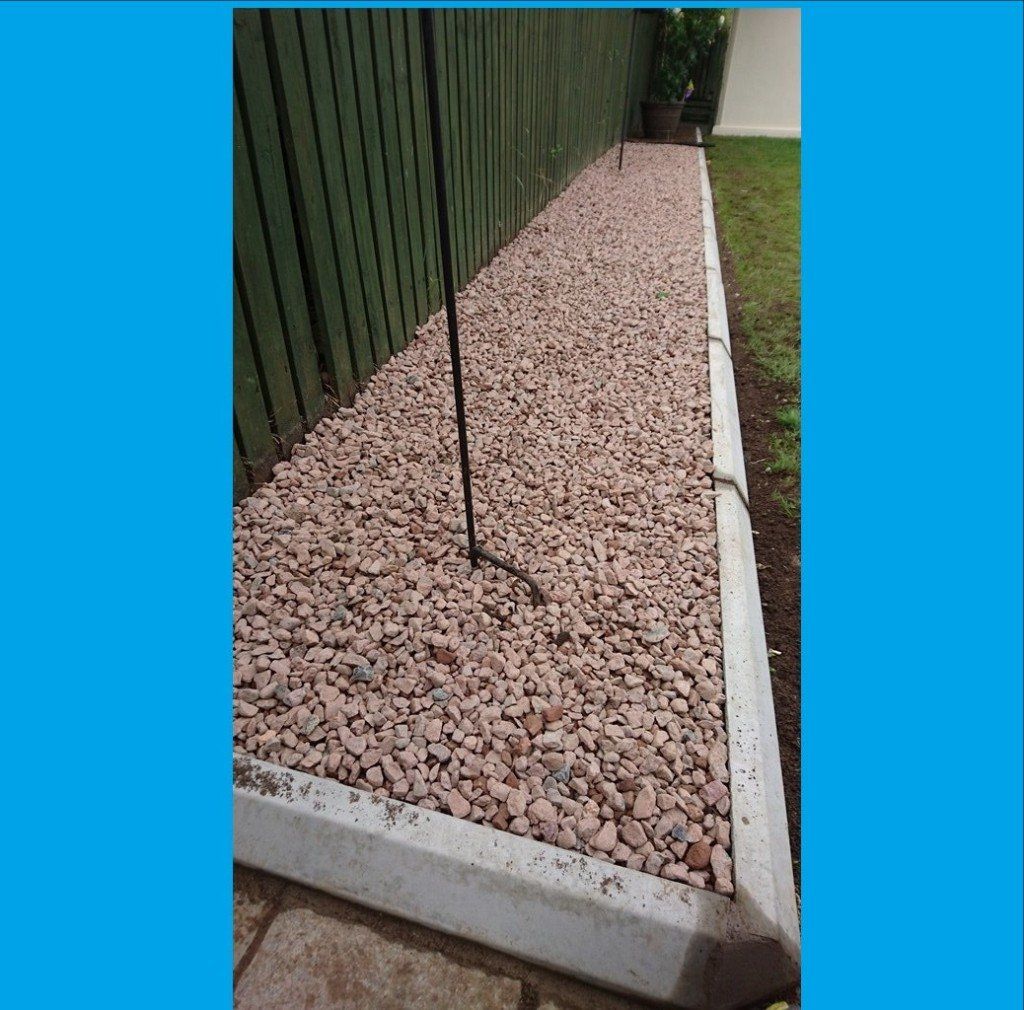

Job completed 12th September. Install 14m kerbing to form flower bed and finish with decorative stones.

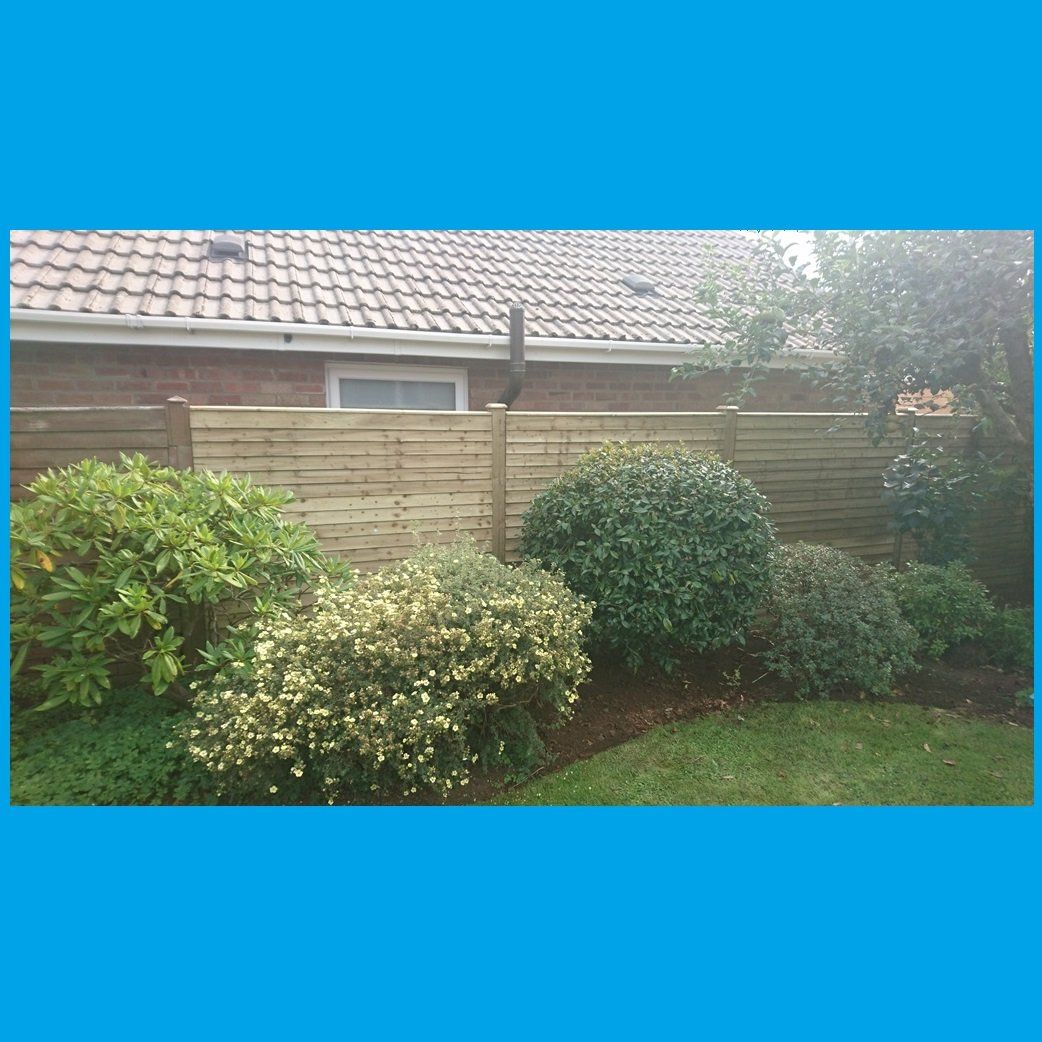

Job completed 7th September. Repair a section of fencing destroyed by storm.

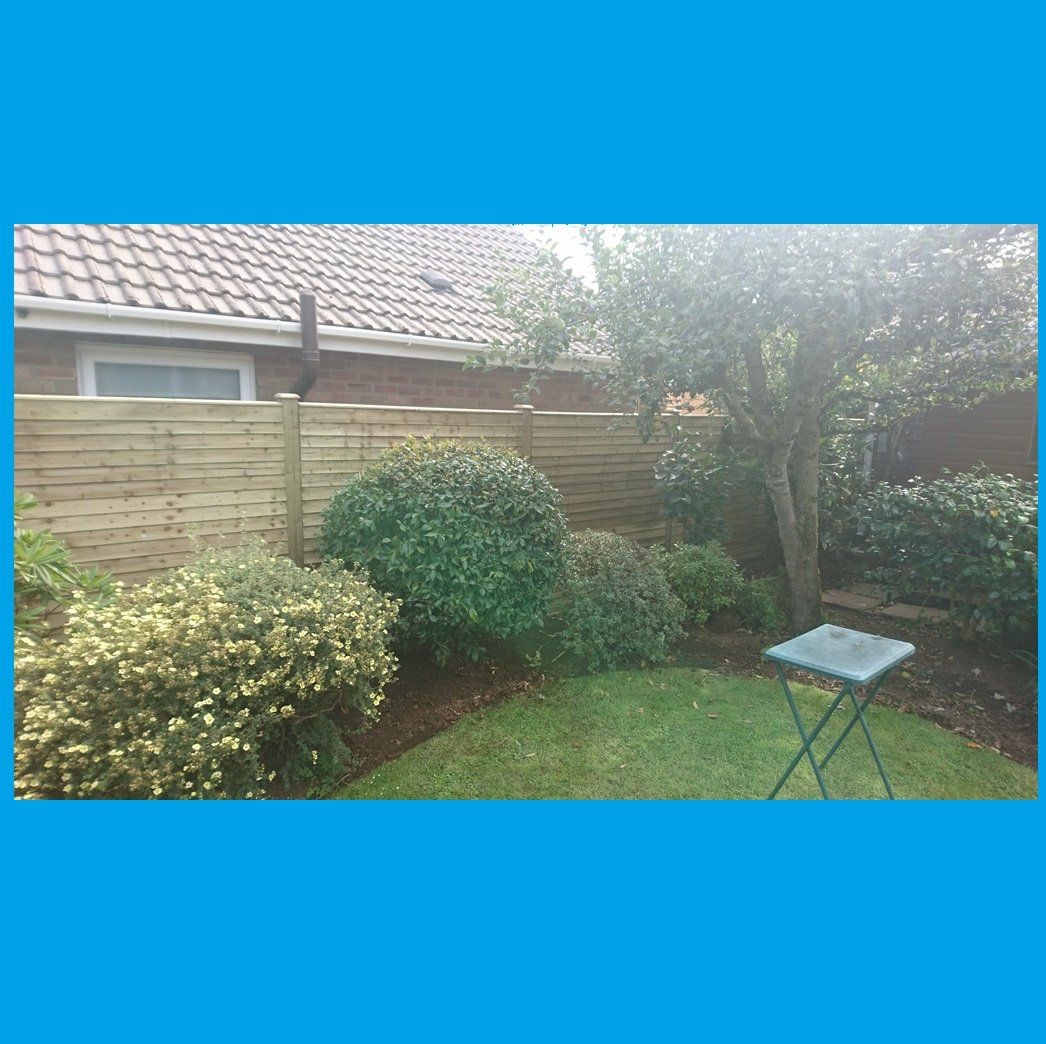

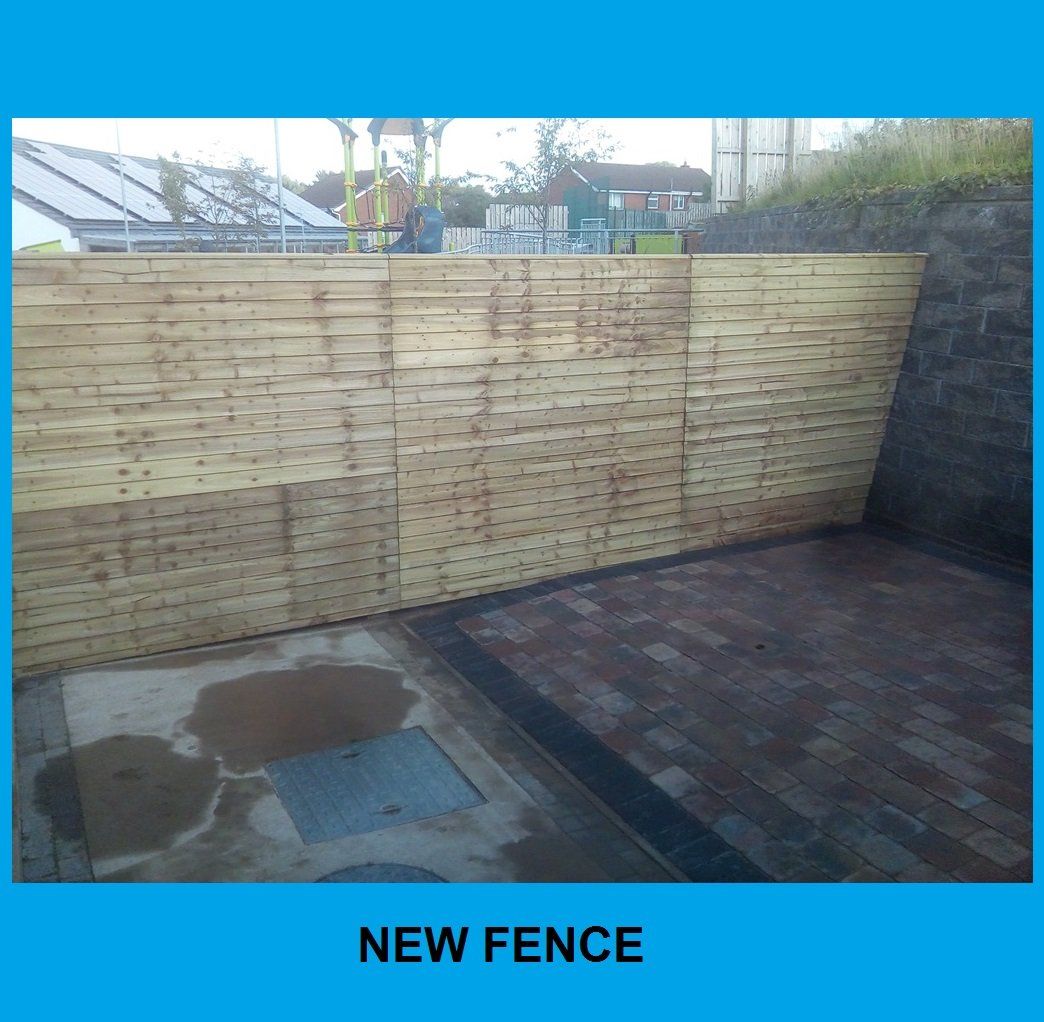

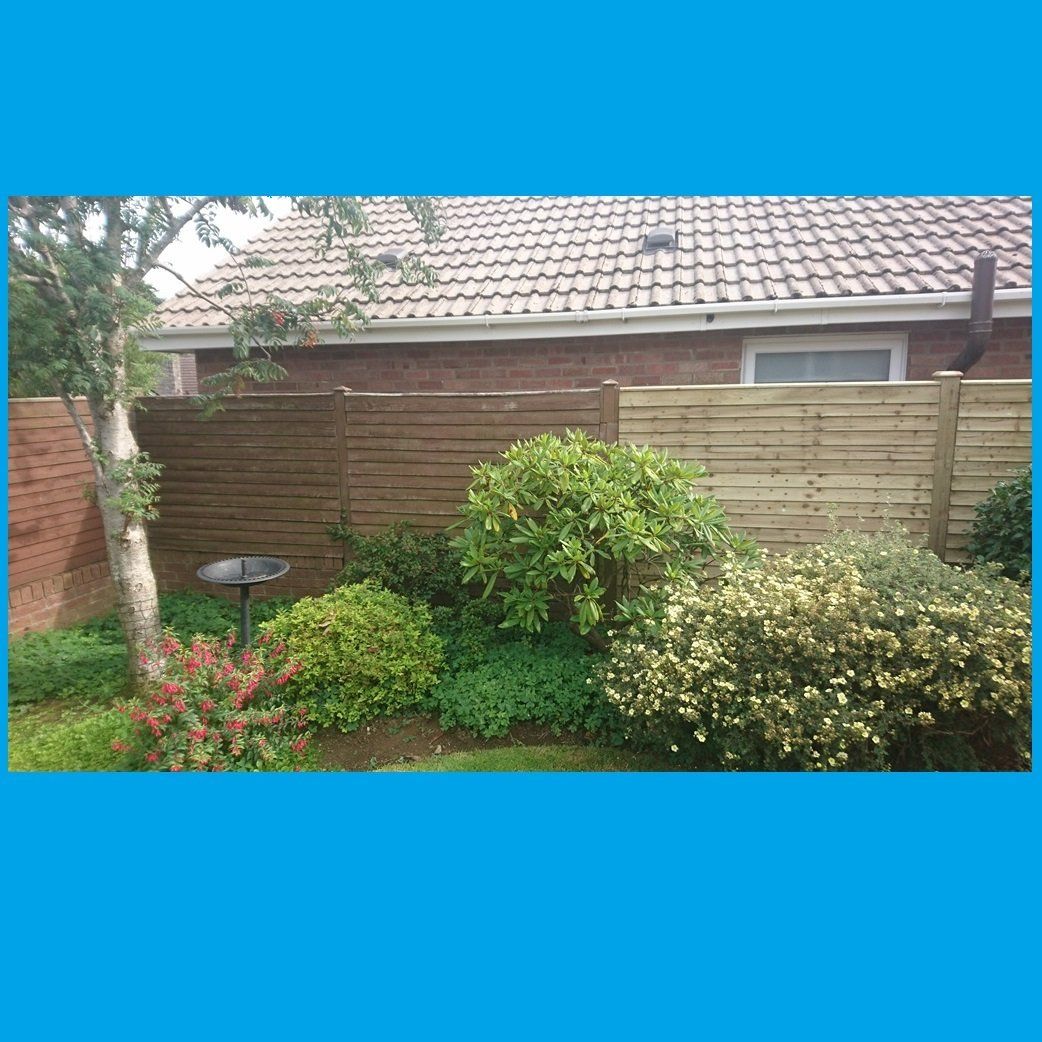

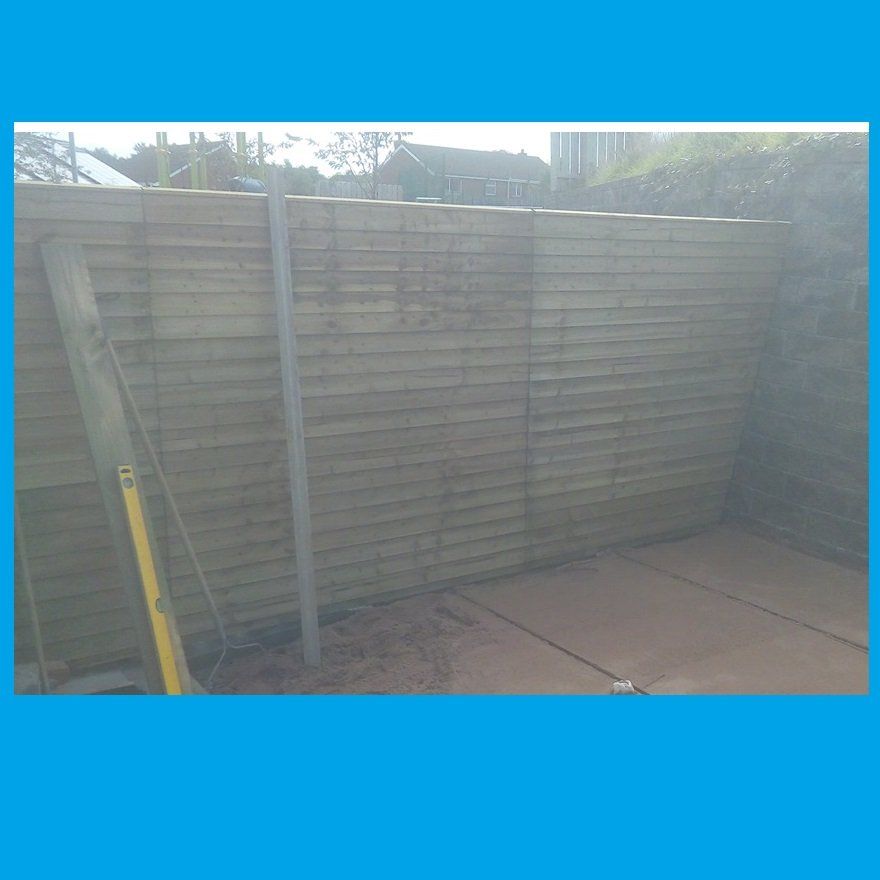

Job completed 4th September. 16m2 Tegula heather paving and new panel fencing.

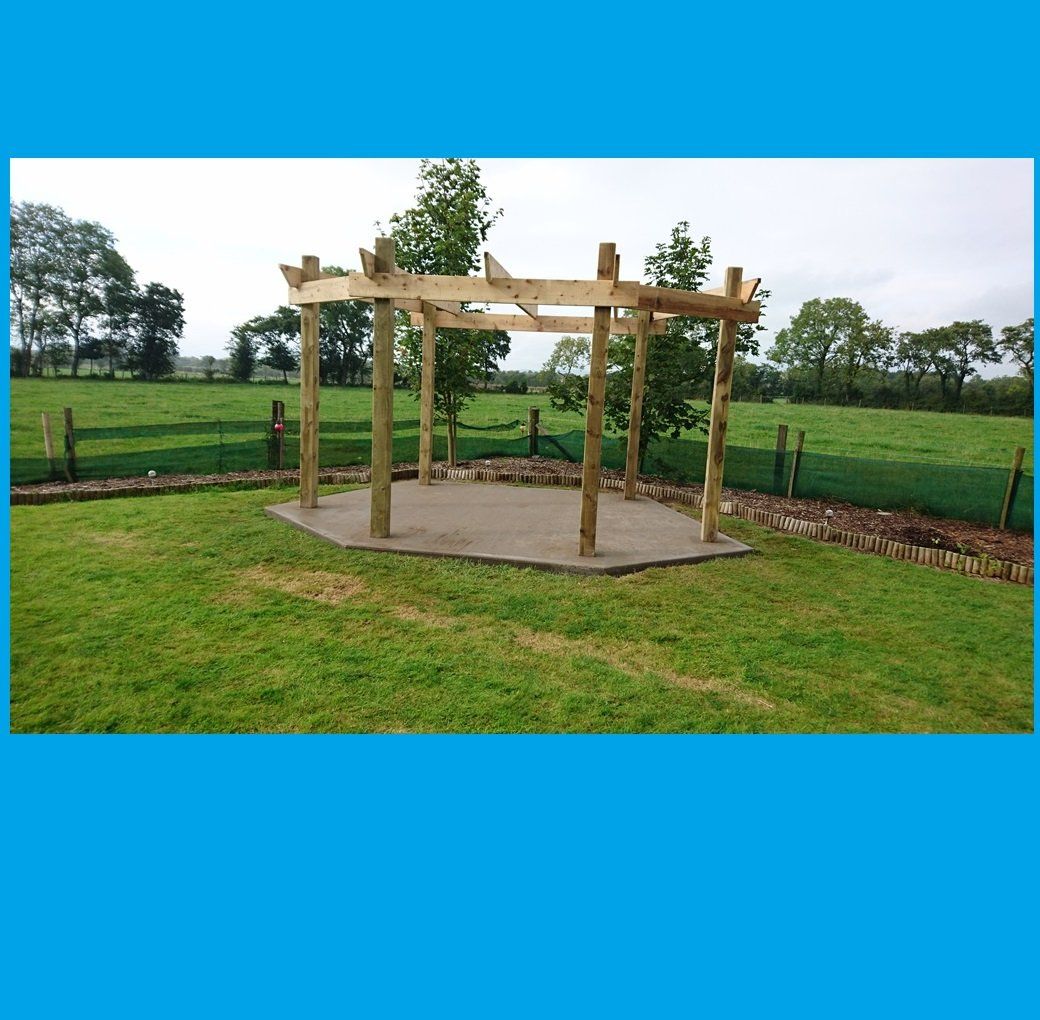

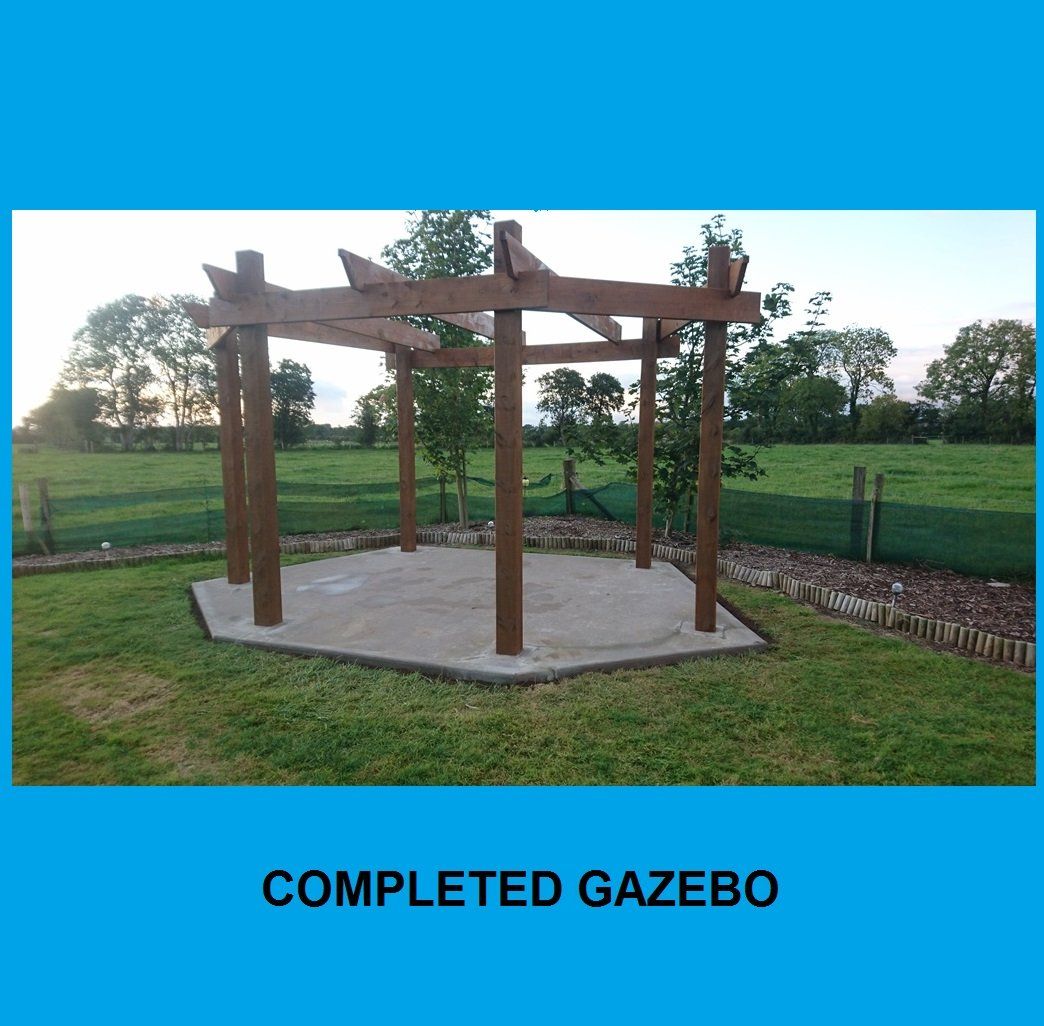

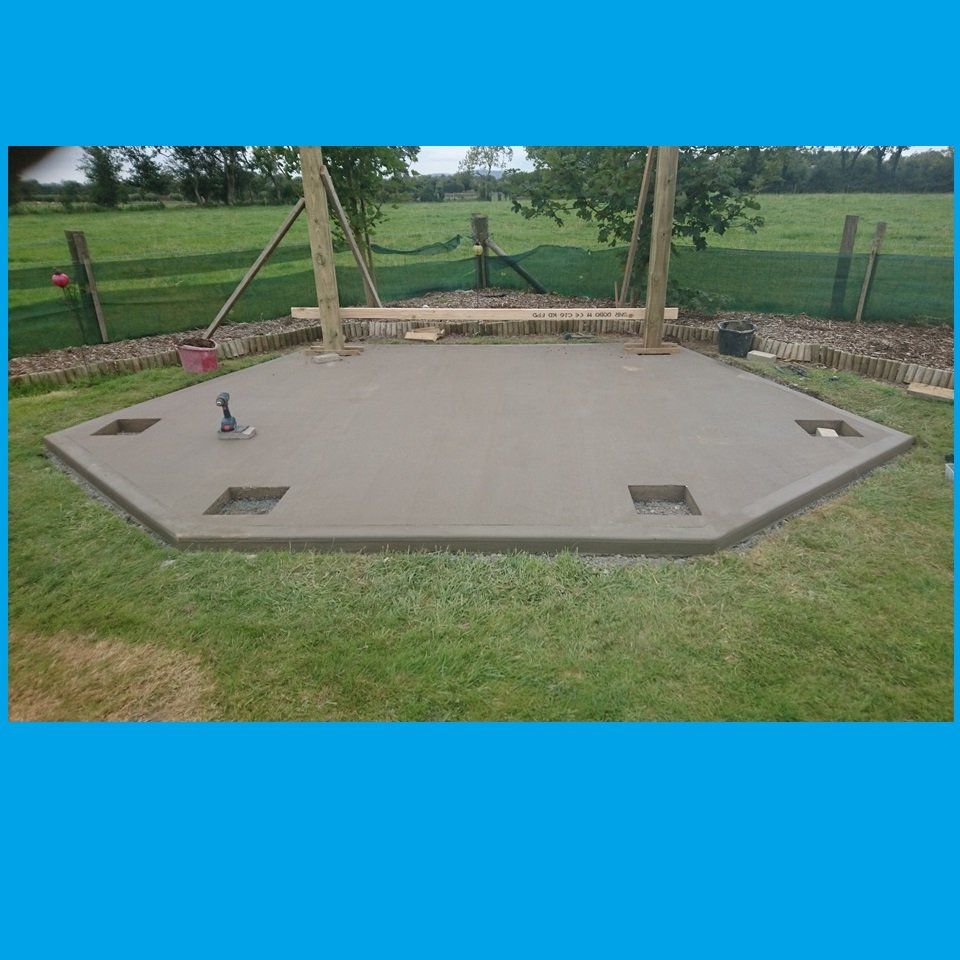

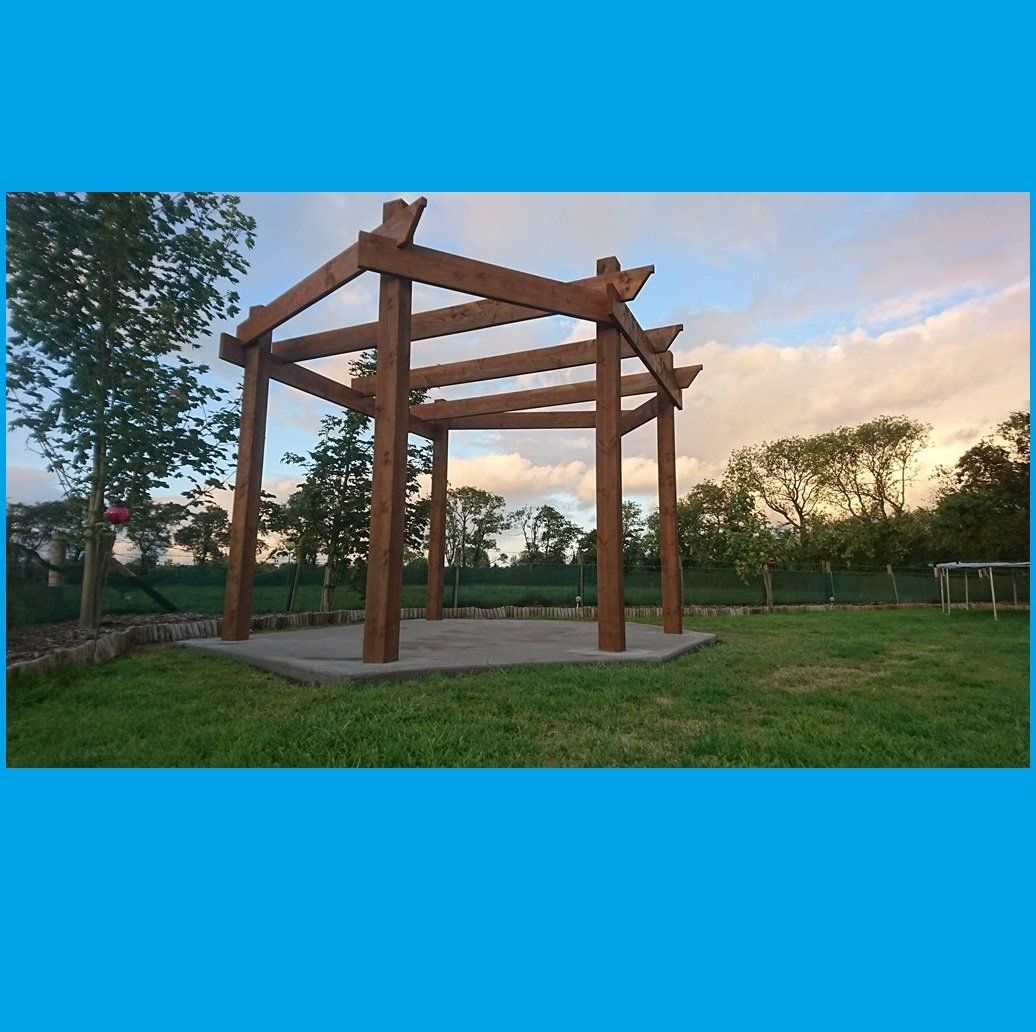

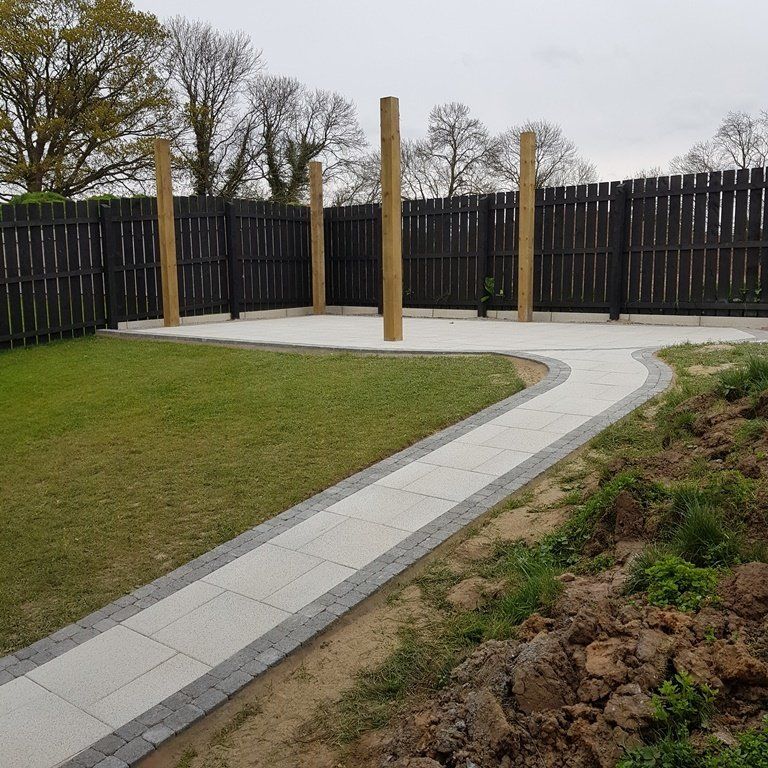

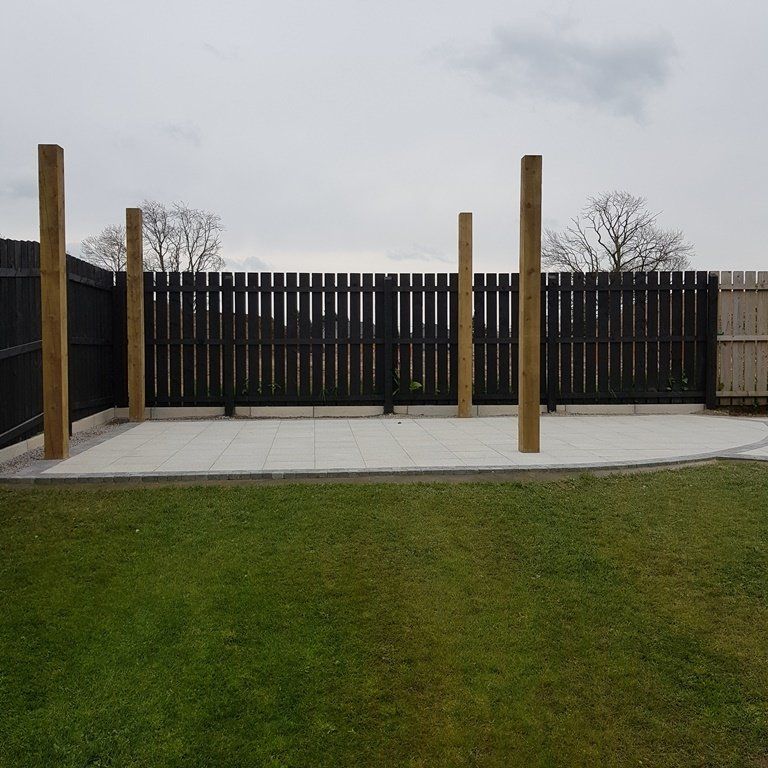

Job completed 30th August. Six sided bespoke gazebo designed & constructed by Pave Patio & Shed plus 25m2 Tobermore Mayfair sandstone flags to patio and steps

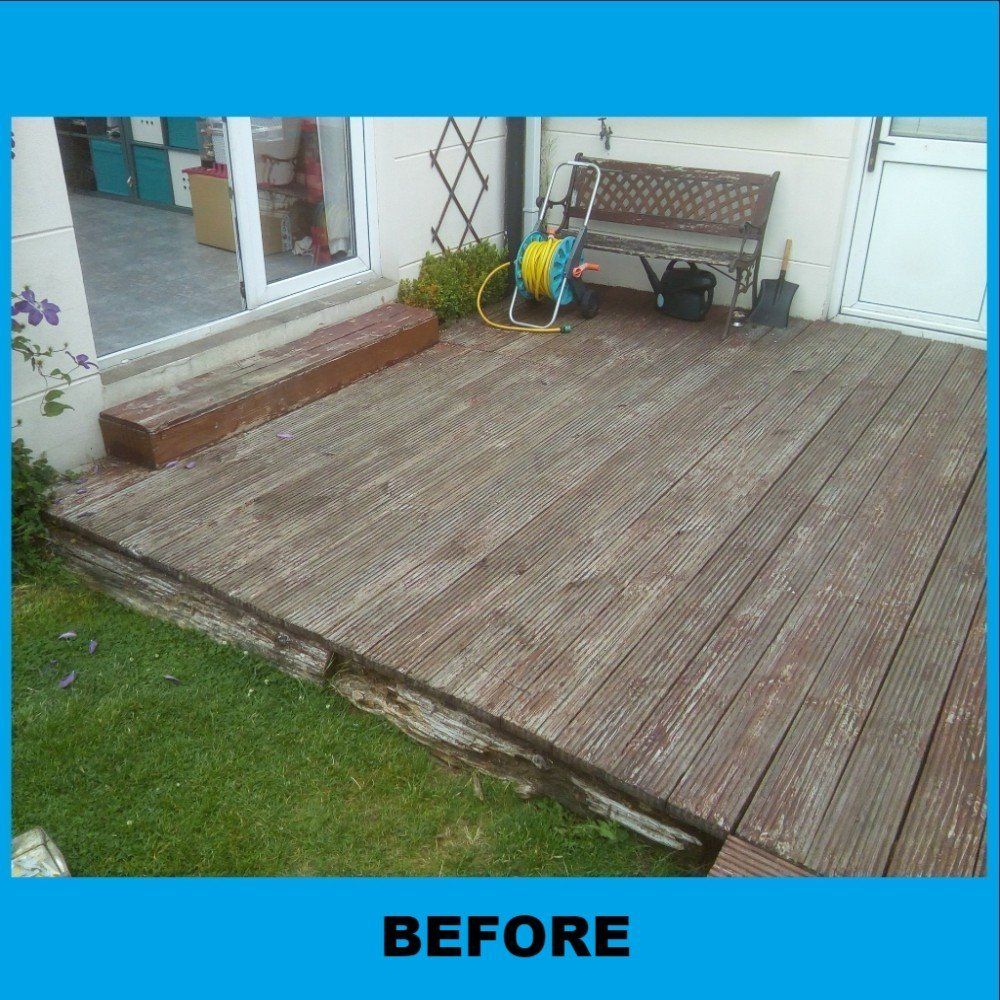

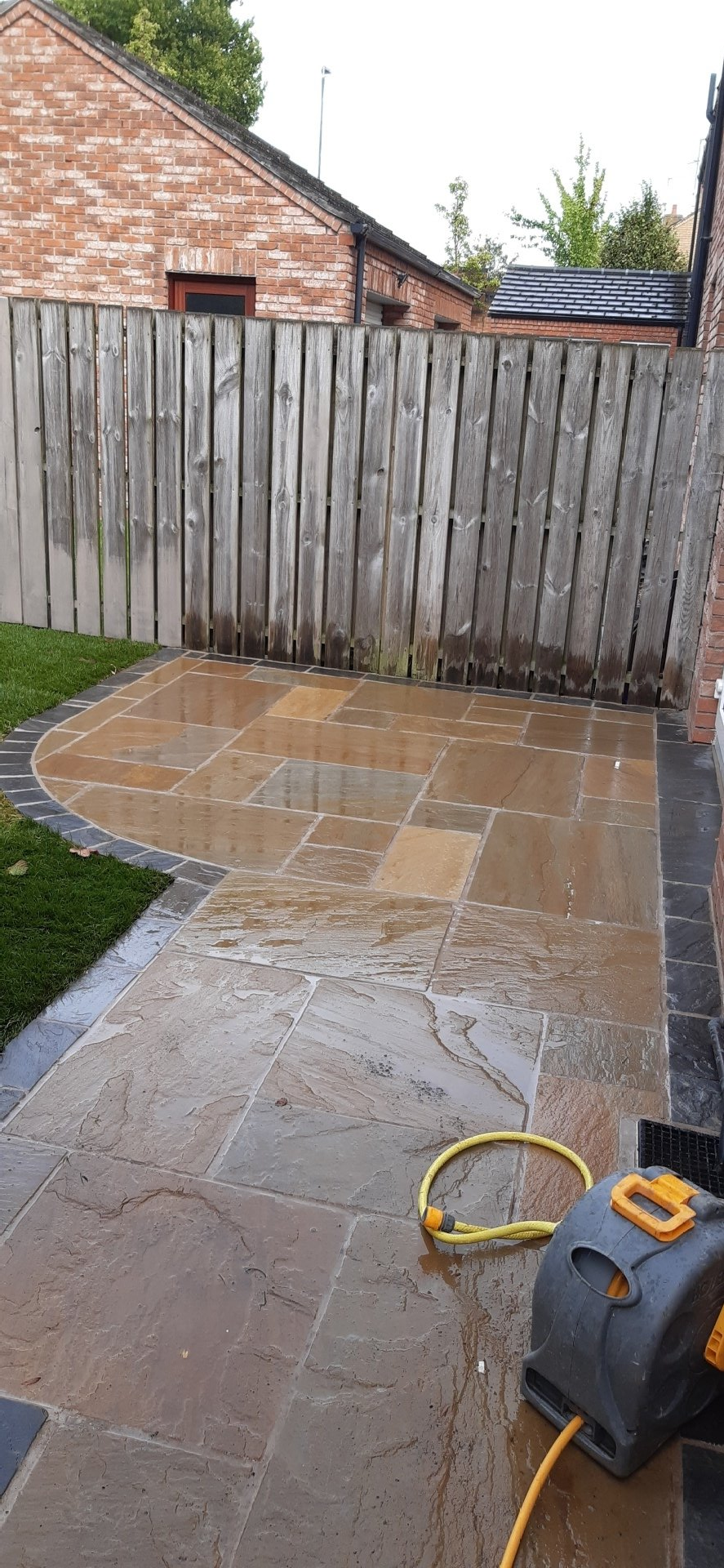

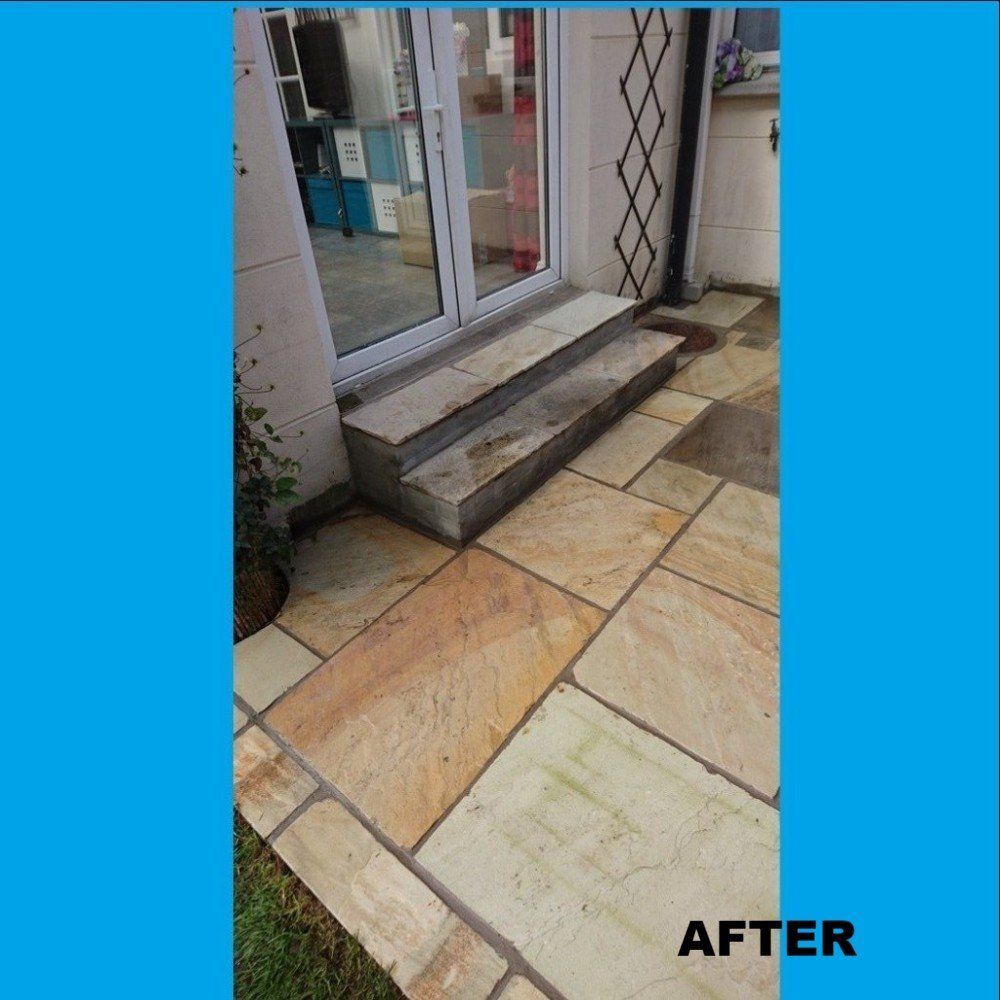

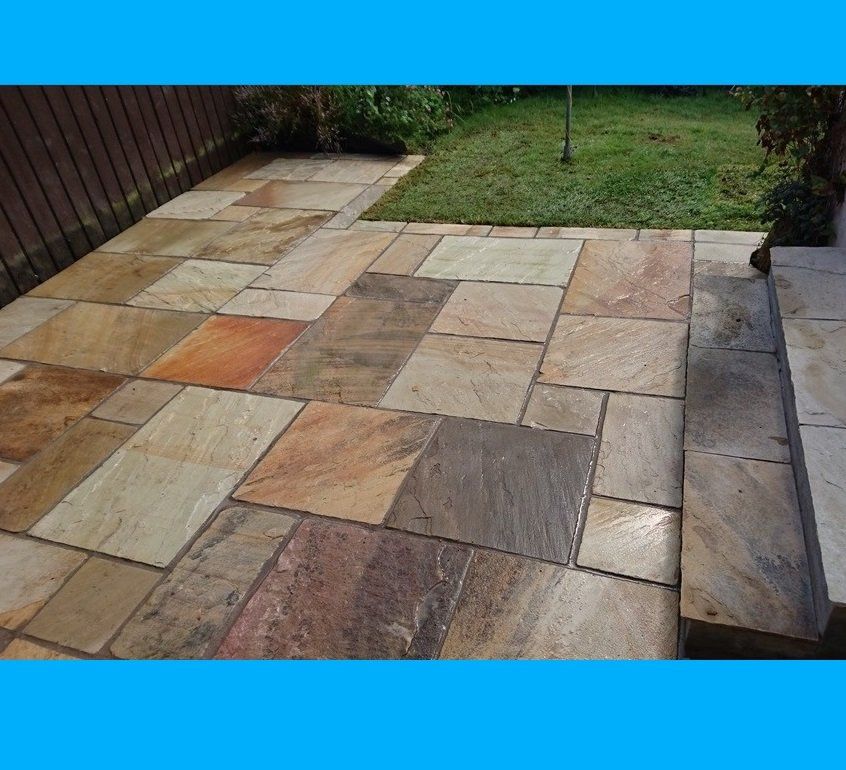

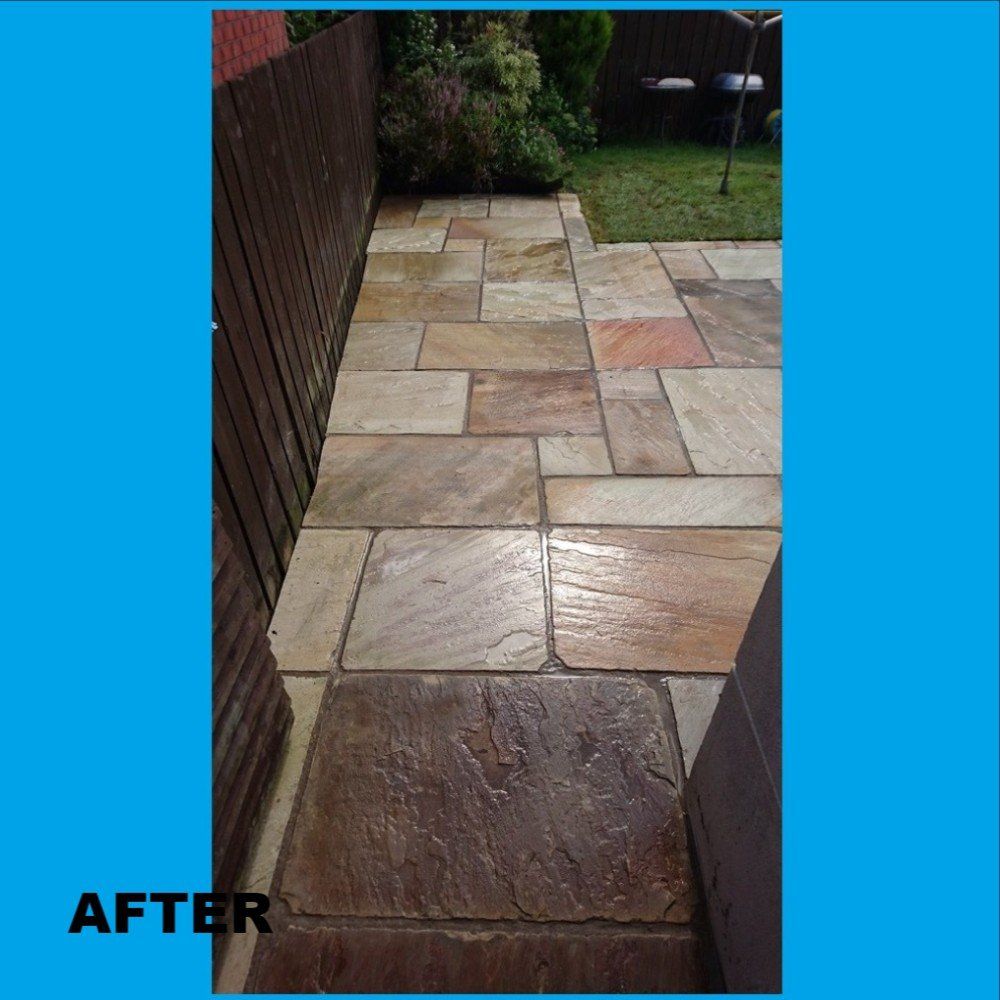

Job completed 15th August. Natural sandstone flags laid to patio area replacing old timber deck.

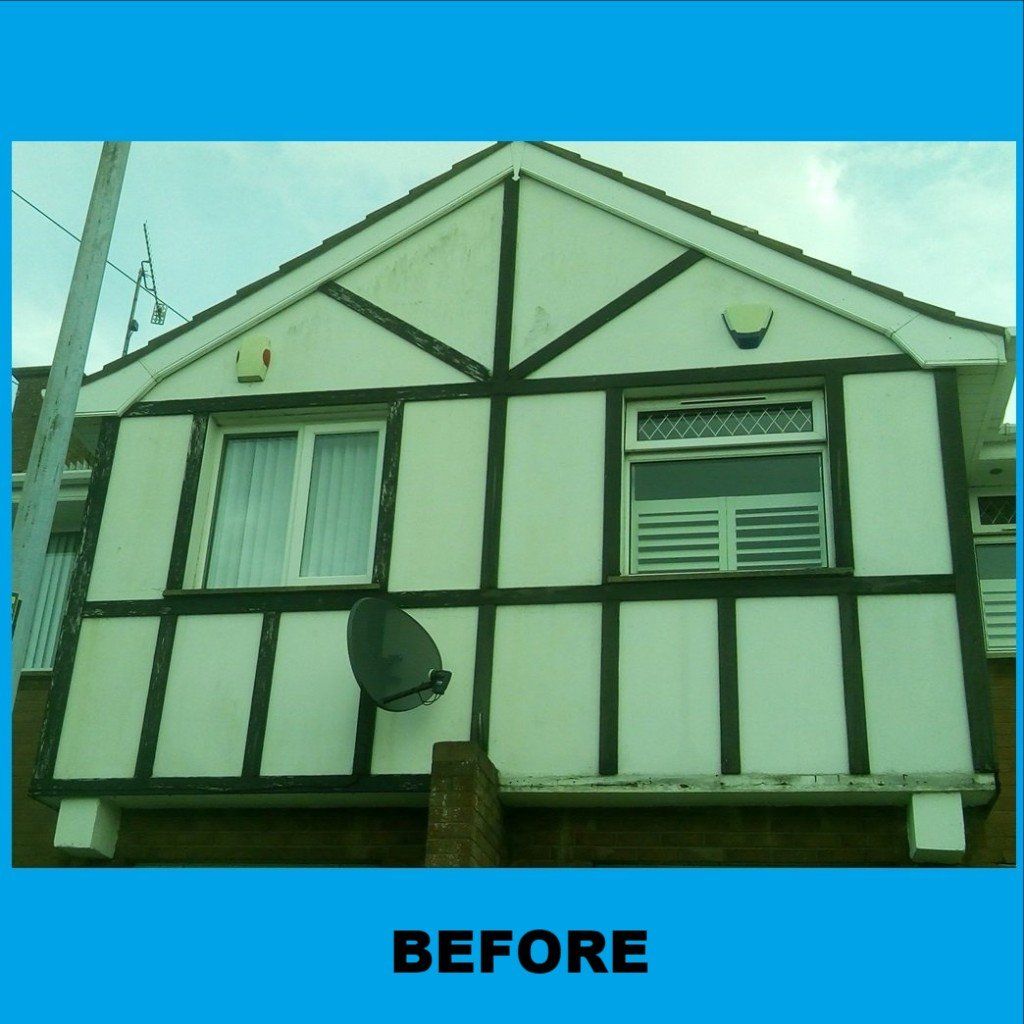

Job completed 6th August. Replace rotting timber with new PVC imitation ash timber by APS which has a 10 year guarantee.

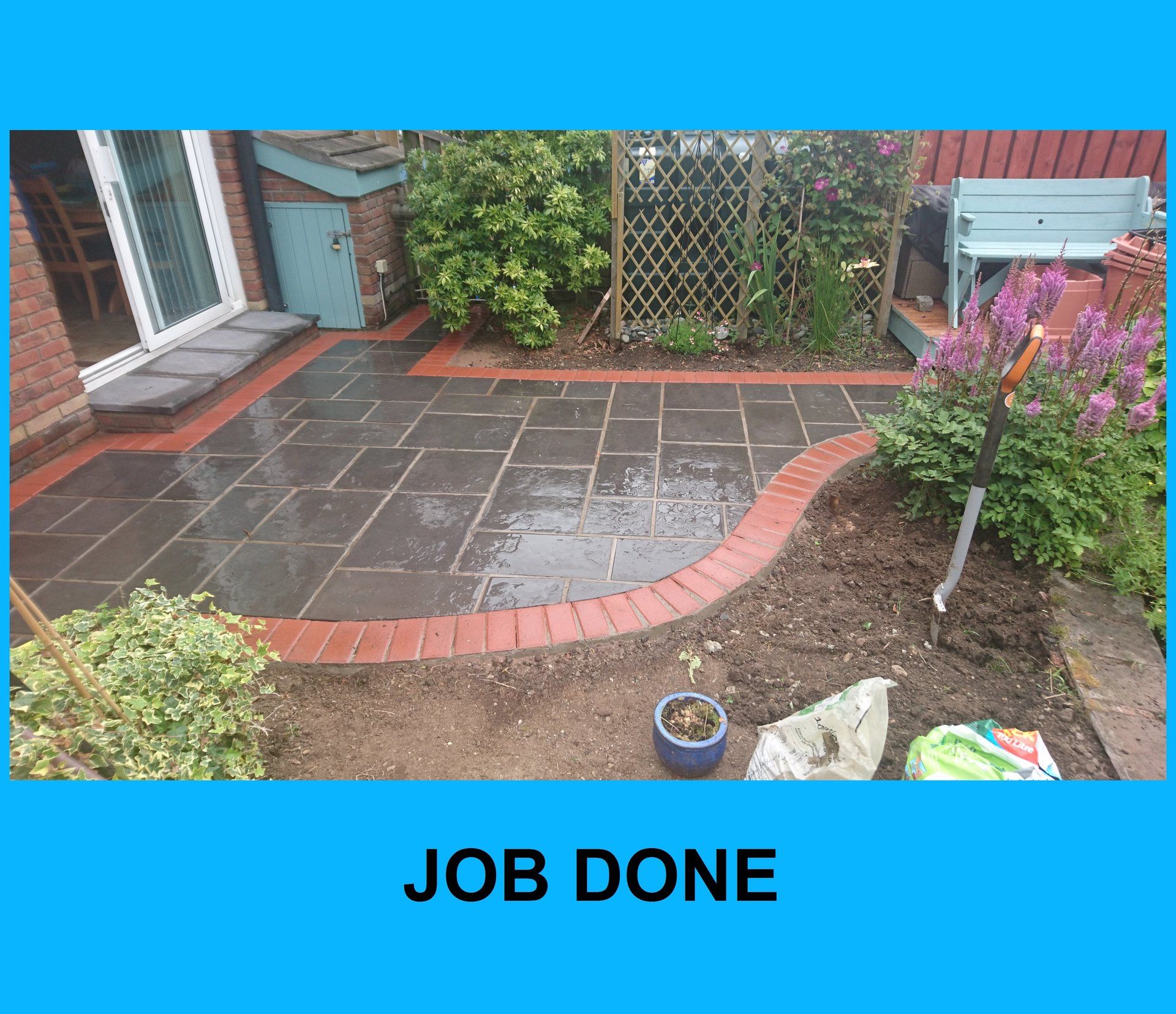

Job completed 30th July. Patioman charcoal flags with red Tobermore pedesta border.
*****
(5 STAR Rating :source Yell.com)
" Work of incredible detail - highly recommended
Renier provided us with a detailed plan and quote for our garden patio. It was great to have his advice regarding layout and choice of paver/edging. His attention to detail throughout the work was incredible. His obvious years of experience meant that he provided work of the highest quality. Renier and his son Reece are a great team who ensured that the finished job exceeded our expectations. They were both such a pleasure to deal with. We cannot recommend this amazing duo highly enough. We certainly will not consider going anywhere else for future works.
BF."

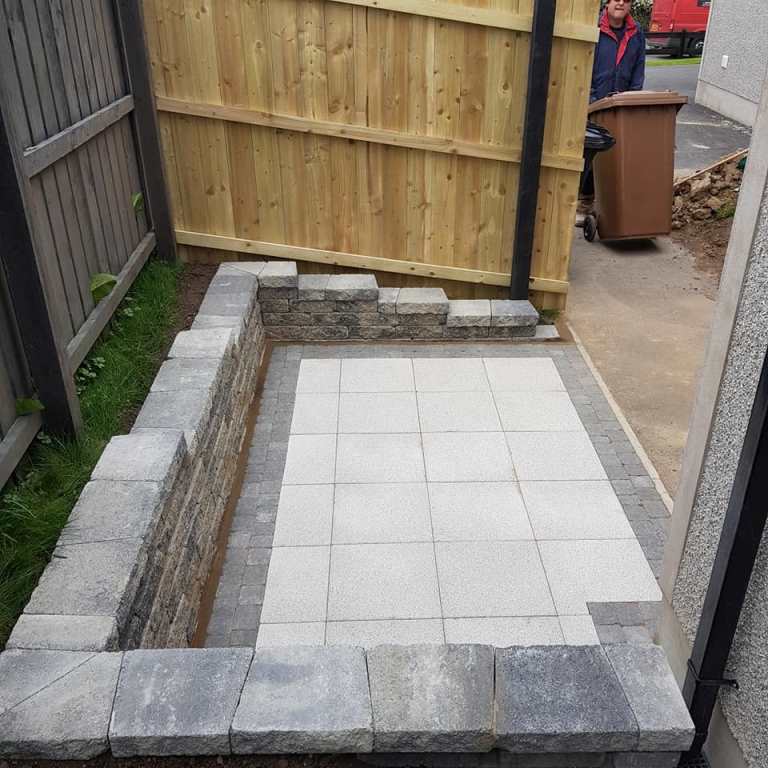

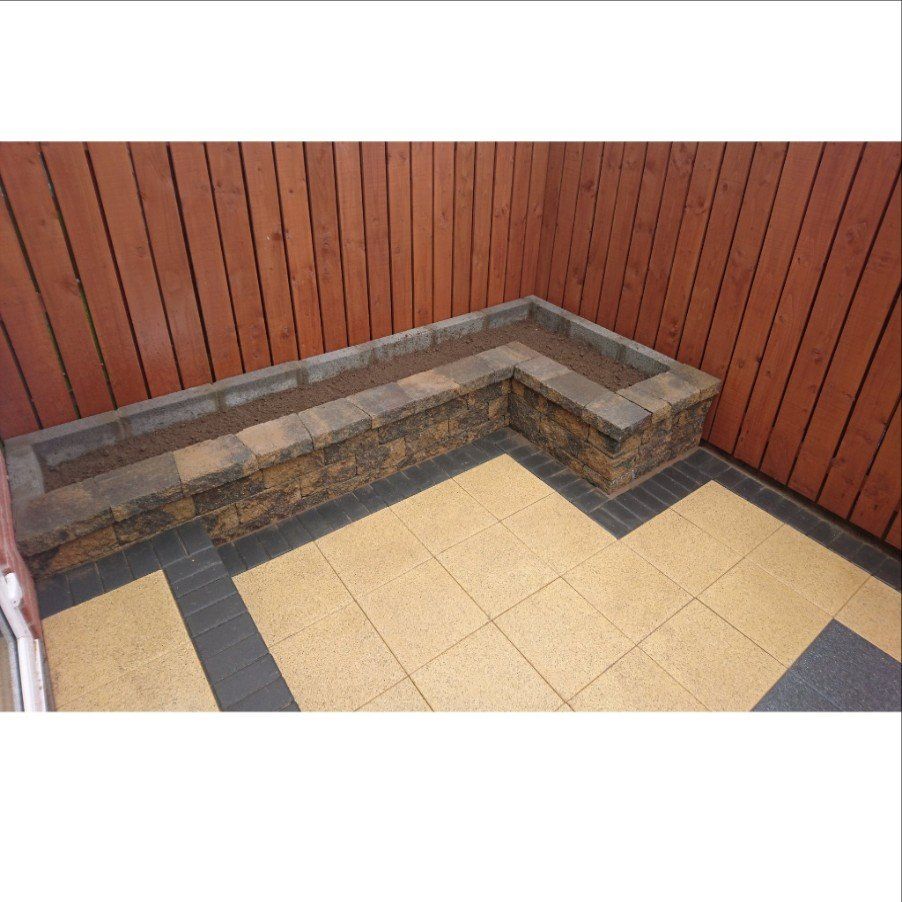

Job completed 20th July. Flower box using Tobermore Garden stone with Mayfair sandstone / charcoal flags for the paved area and step and pedesta charcoal border.
*****
(5 STAR Rating :source Yell.com)
"Back garden revamp and landscaping
Pave Patio and Shed recently landscaped my garden and what fantastic workmanship. Not only did they understand and replicate exactly what I was looking for, their quality of work was superb and they kept in close contact for the duration of the work. I am more than happy with the work and will most certainly have them back when revamping the front of house space. Would highly recommend
FM. "
View more

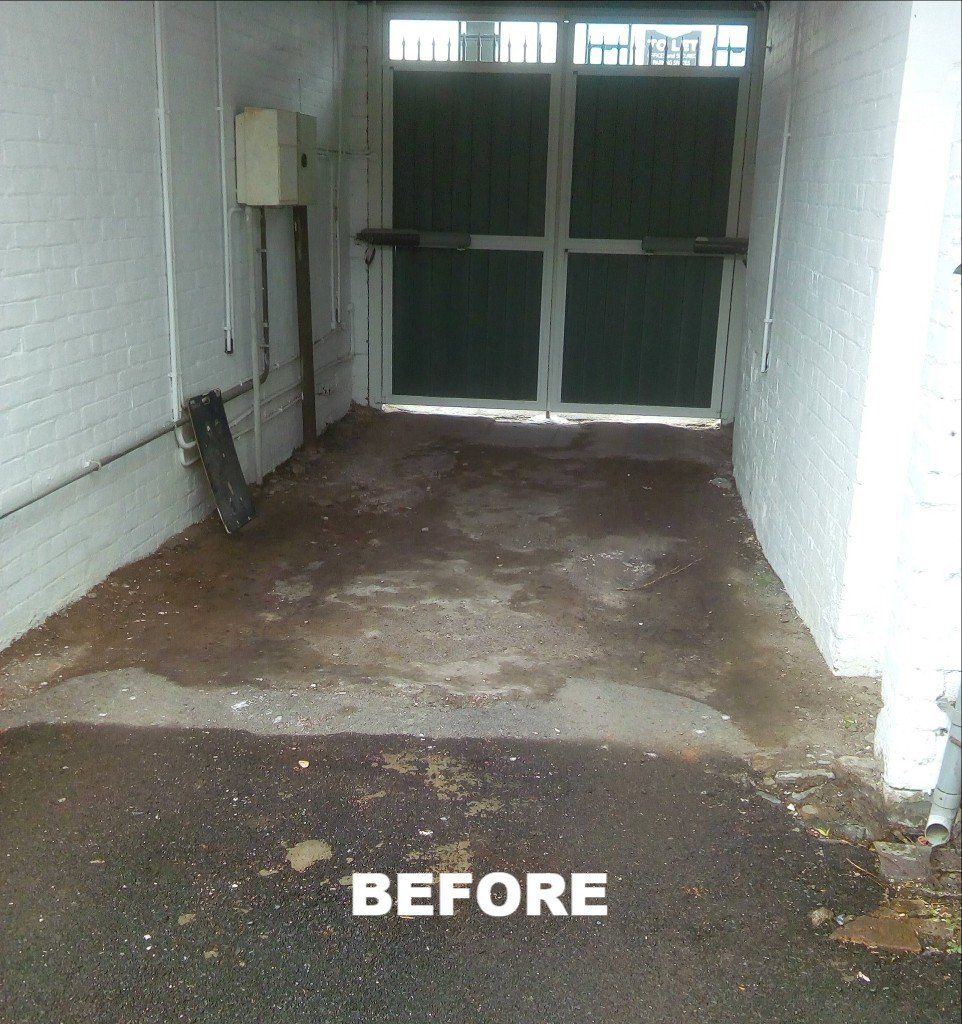

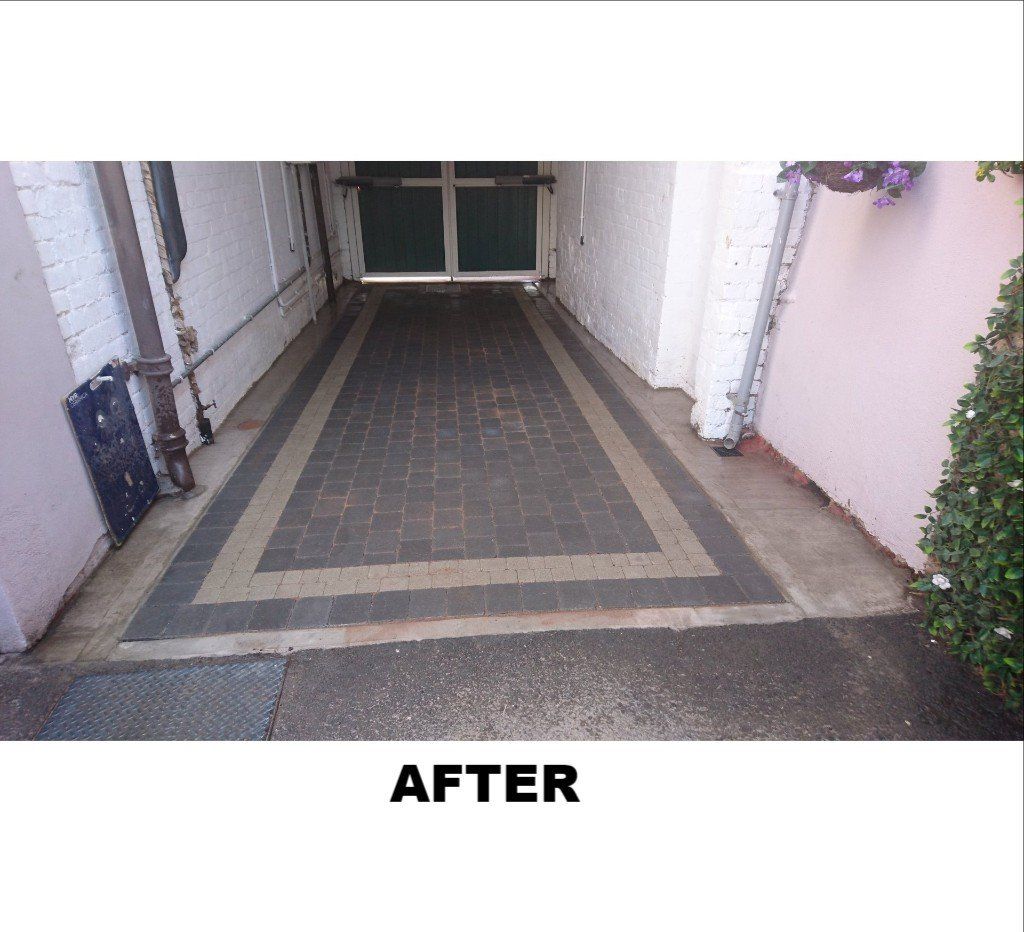

Job completed 14th July. Tobermore Tegula charcoal paving blocks with Tegula grey in-set with poured concrete on either side to even up along the uneven walls.
*****
(5 STAR Rating :source Yell.com)
"Excellent service. Arrived on the day arranged. Very tidy workmanship, did a great job and left the place looking perfect.
OW. "

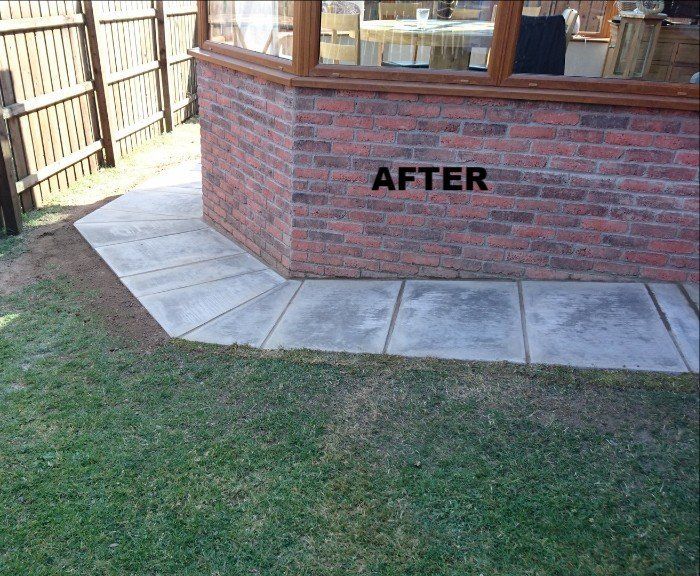

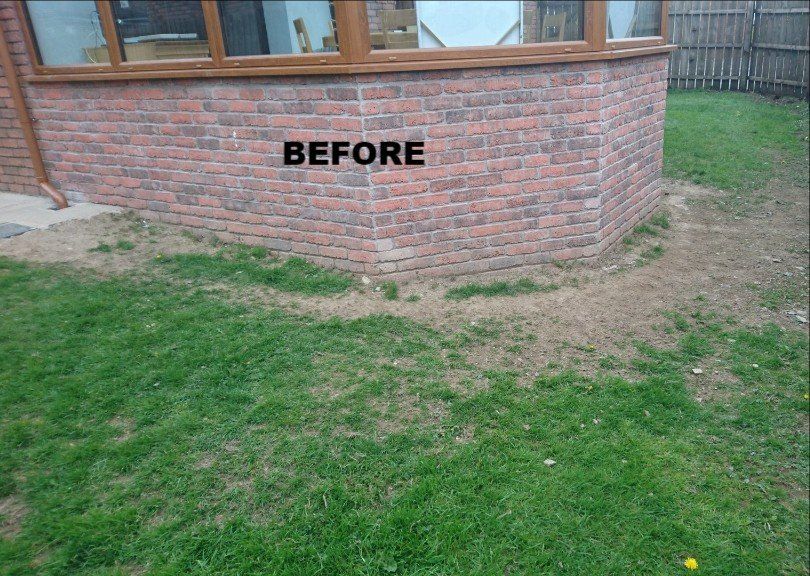

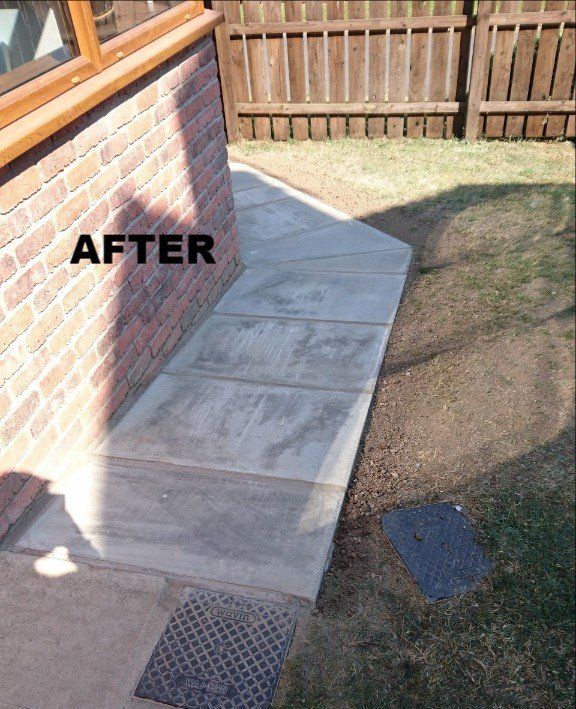

Job completed 28th June. Extend patio flags and lay new flags around conservatory using standard 900mm x 600mm flags.
View more

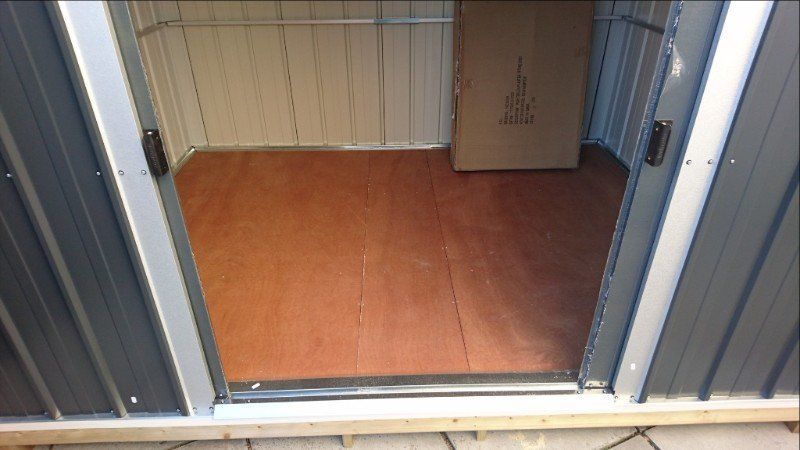

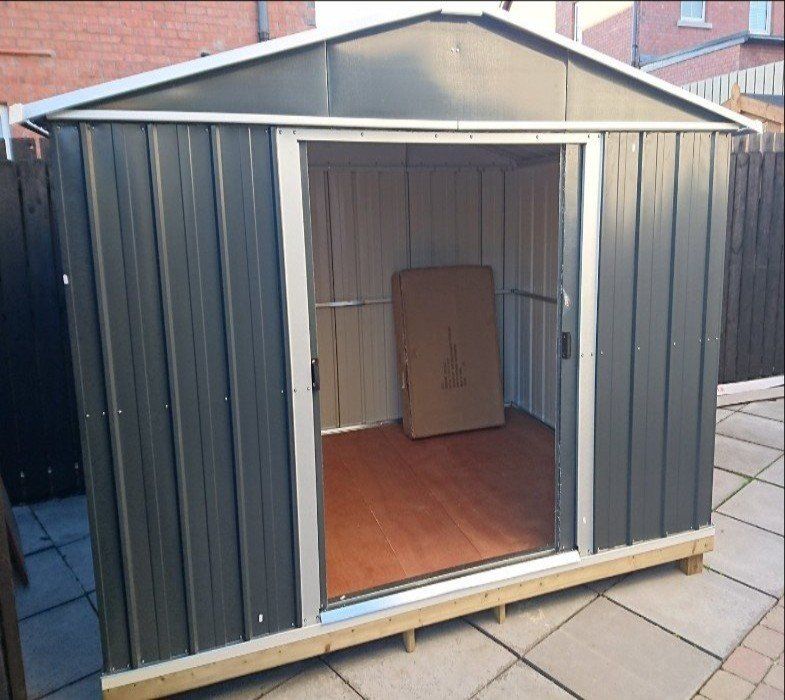

Job completed 22th June. Construct timber shed base and erect Yardmaster 10 x 8ft metal shed
View more

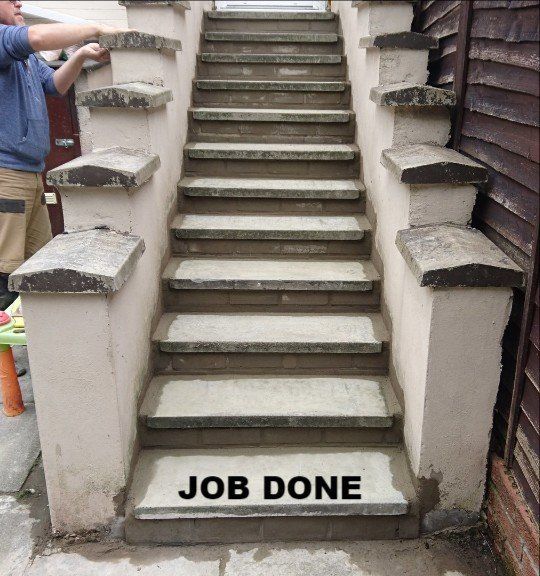

Job completed 20th June. Repair / replace stairs that had become loose and had started to collapse.

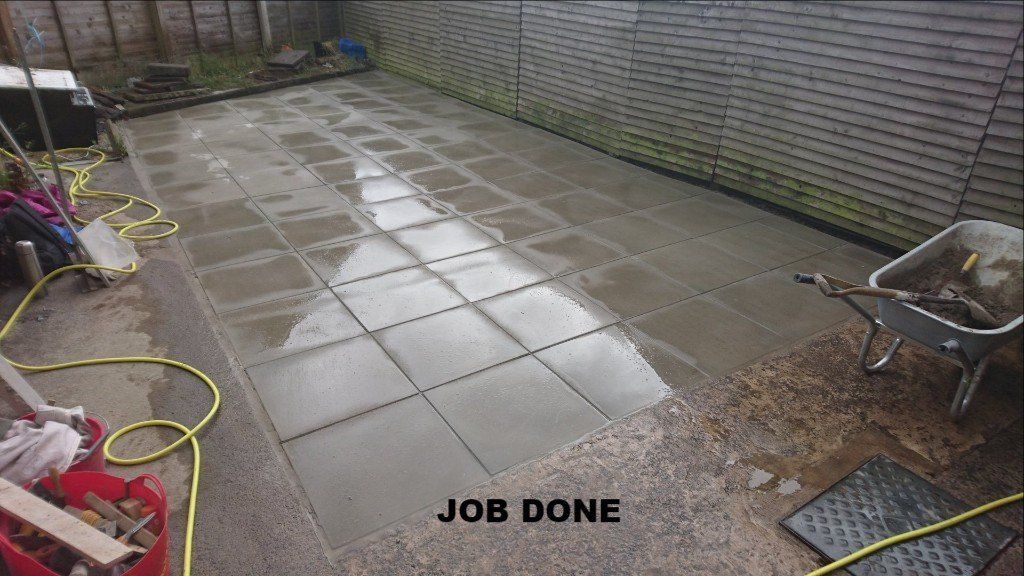

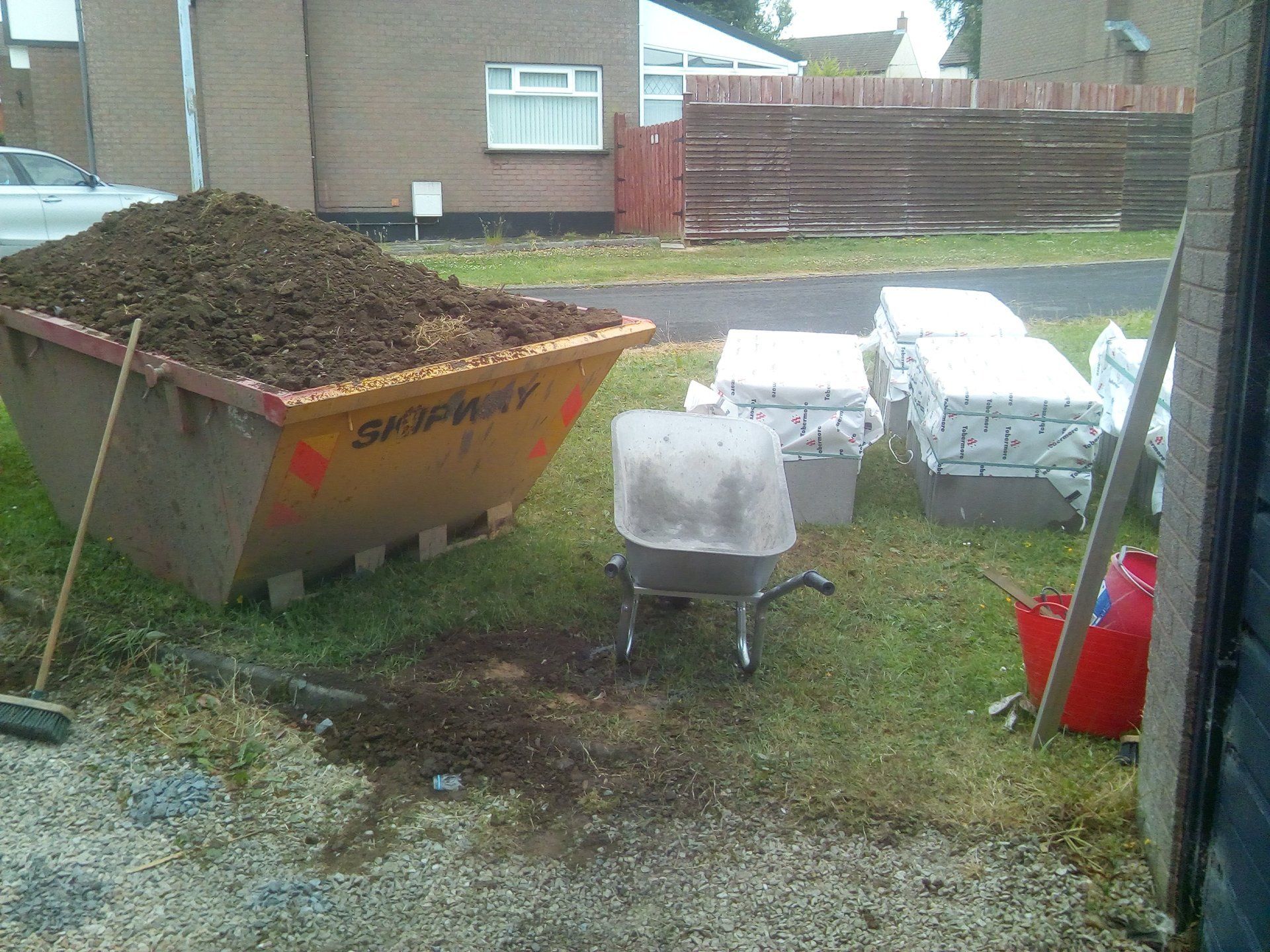

Job completed 15th June. 31 m2 Straight forward 600 x 600 Tobermore standard flags to back yard.

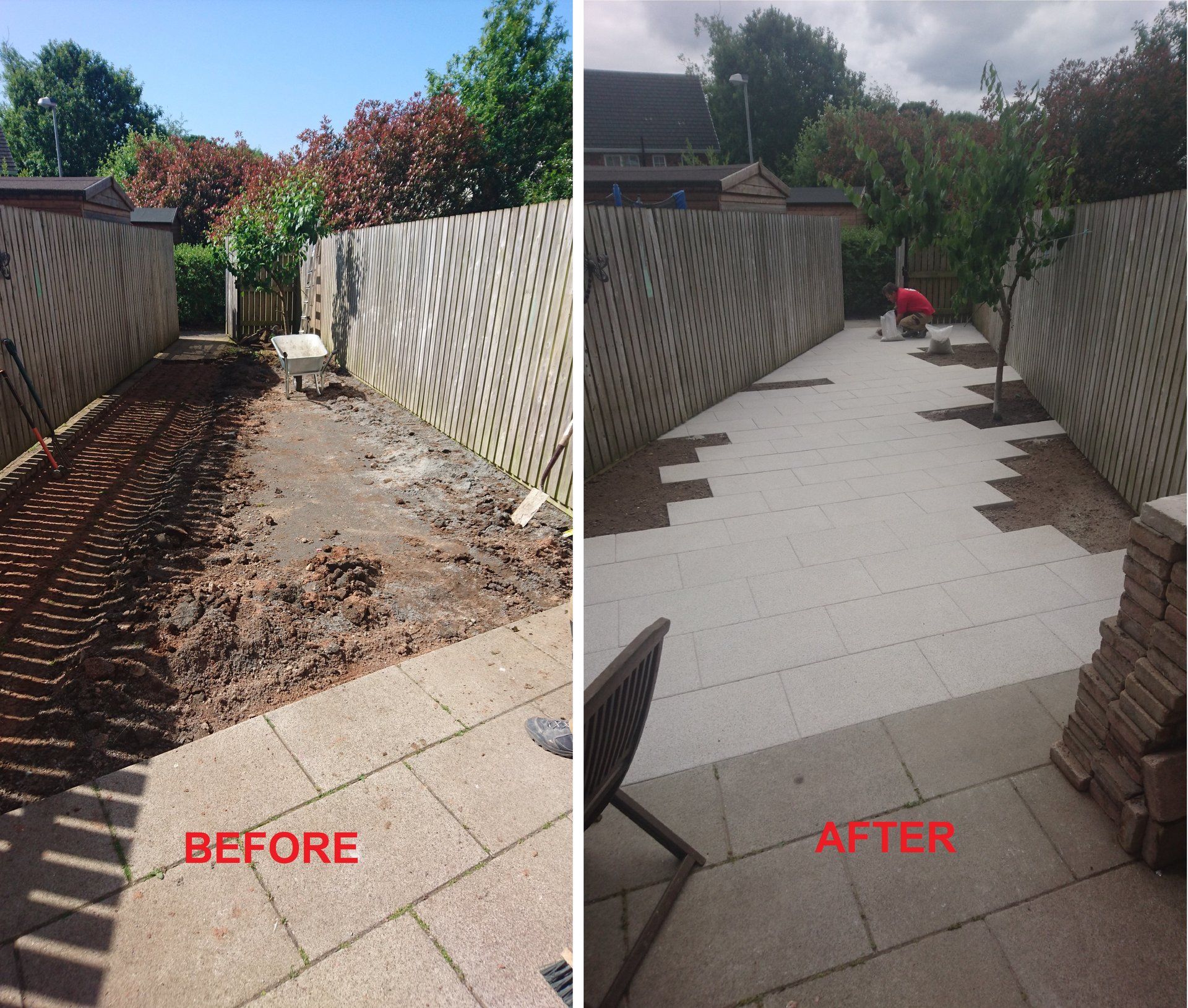

30m2 Tobermore Mayfair flags, silver, laid to back yard and completed 11th June 2018. Very happy client.
*****
"Excellent work ethic. Highly recommend
Renier and Reece are a pleasure to work with. You can tell they love their job, and working together. They share an excellent work ethic, and have a brilliant attention to detail. I cannot recommend them highly enough. I am happy to act as a reference site for them. If you are lucky enough to get them on your job, you won’t regret it
JM. "
44m2 paving to old patio area, new patio, paths, Tobermore Secura lite retaining wall, fence and odds and ends used Charcoal flags by "The Patio Man" completed 1st June 2018. Very happy client.
*****
"1st Class Workmanship
Renier and his two sons are true professionals. I was looking for an old patio replaced, a new retaining wall, a second patio created and new paved paths around my house. I discussed it with Renier, made him aware of my overall budget and he subsequently produced computer generated drawings and images together with a detailed cost breakdown and contract. I proceeded with the work and found the guys delivered exactly what they said. They arrived every day at 8.15am, worked straight through until after 5.30pm for just over 10 days. They kept me informed every step of the way and were meticulous with their work. Their attention to detail was amazing and we're delighted with the finished product. We have no hesitation in recommending them, they are brilliant and lovely people as well.
DM. "

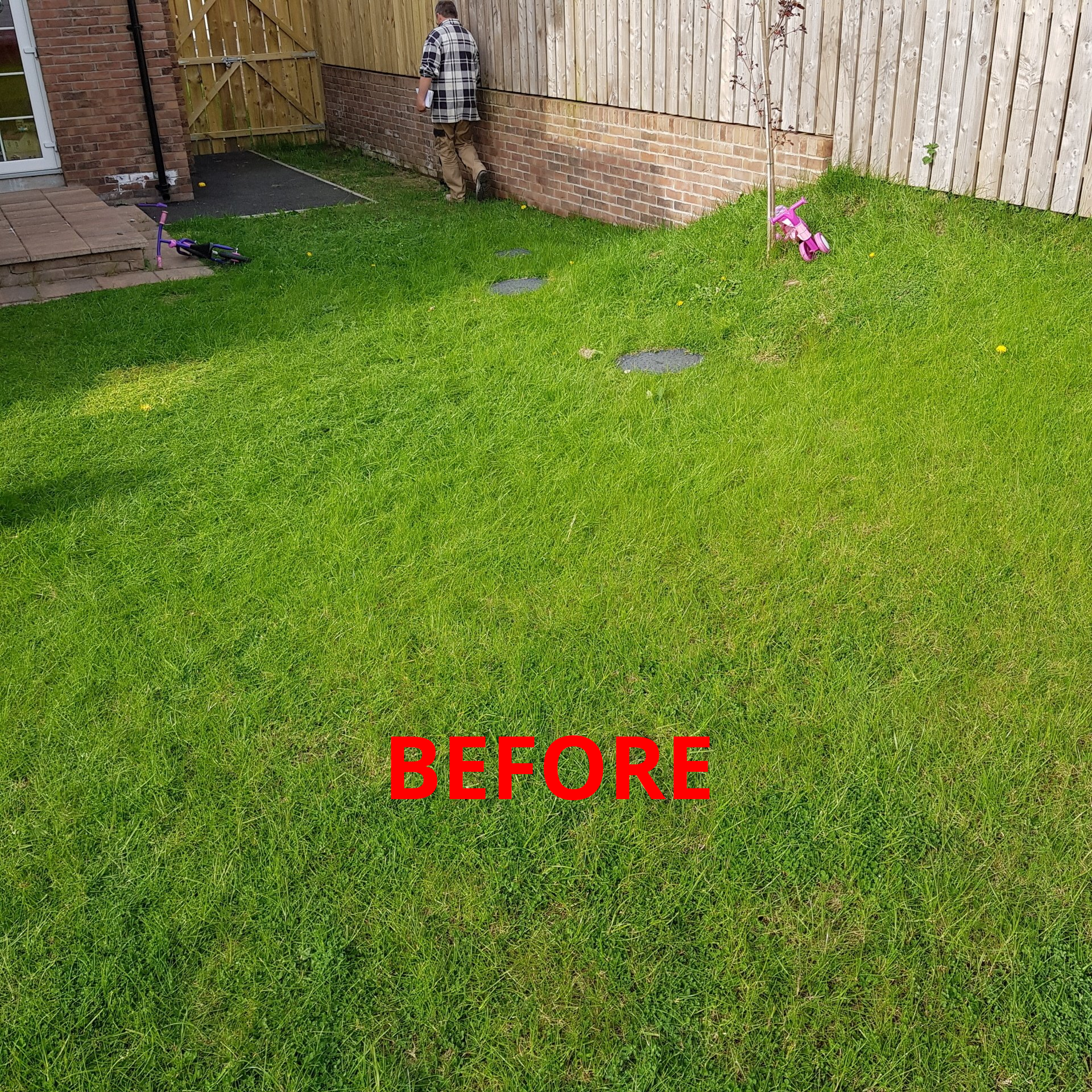

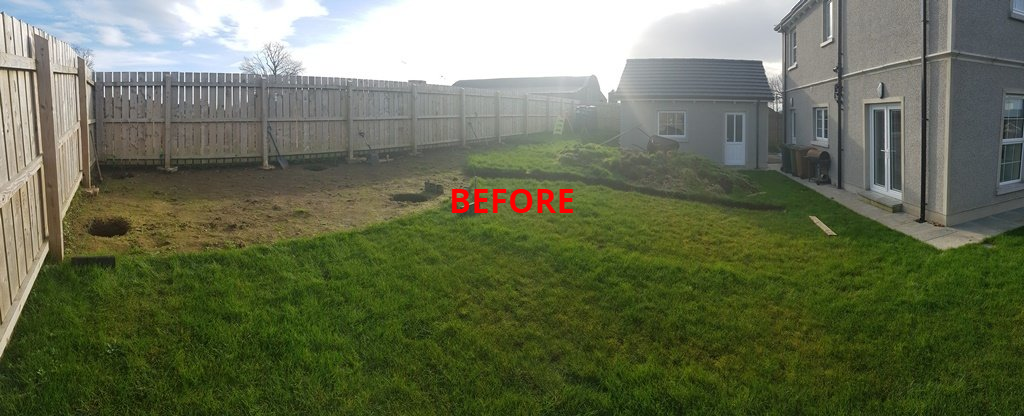

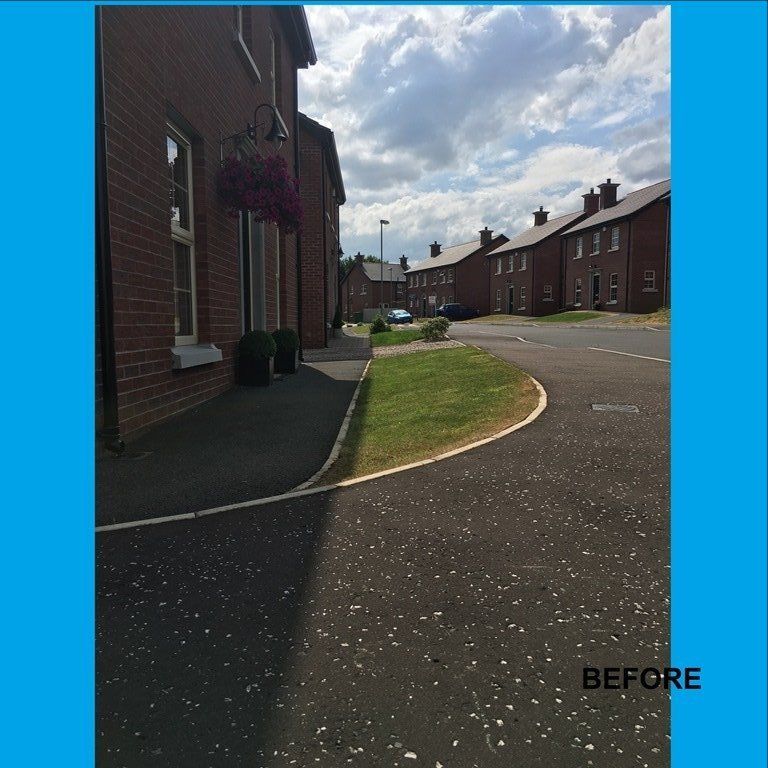

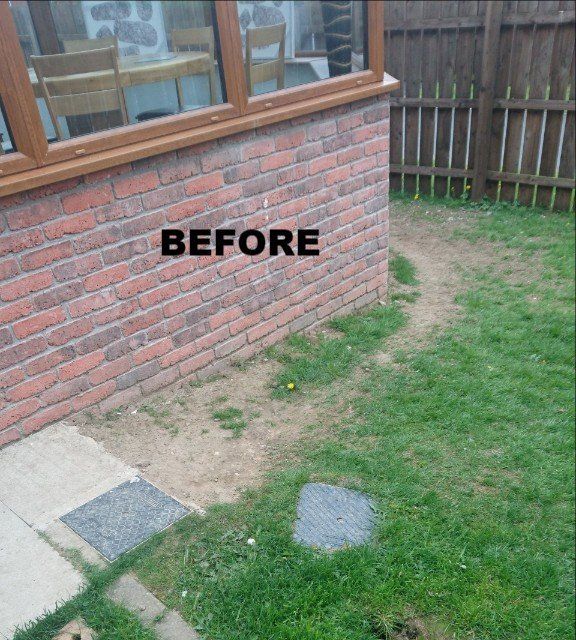

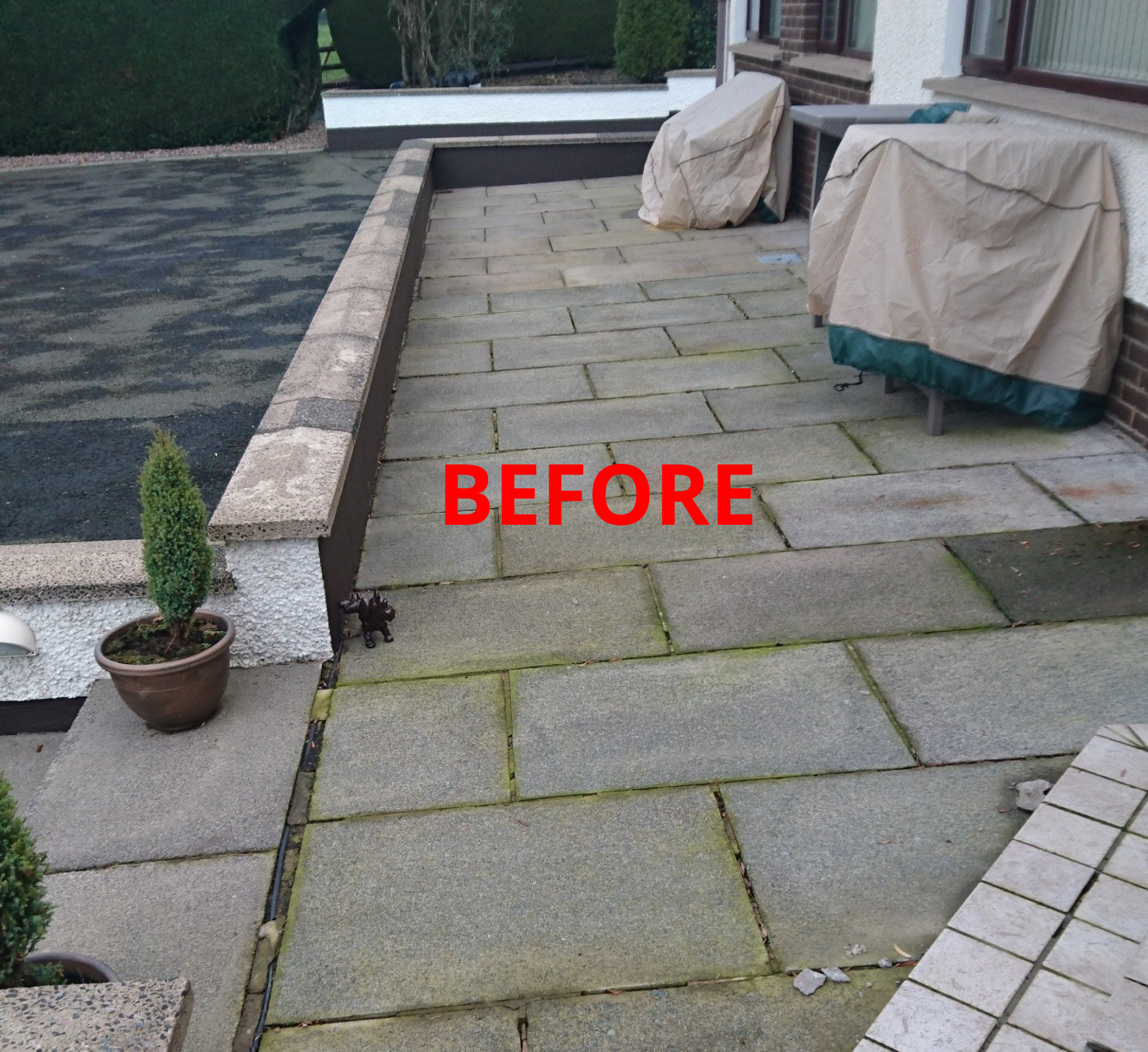

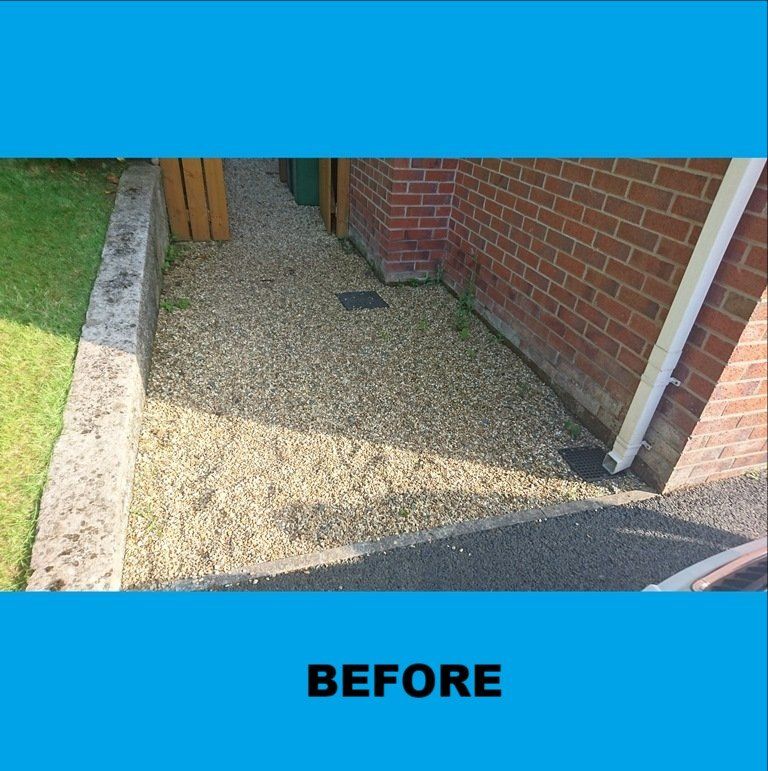

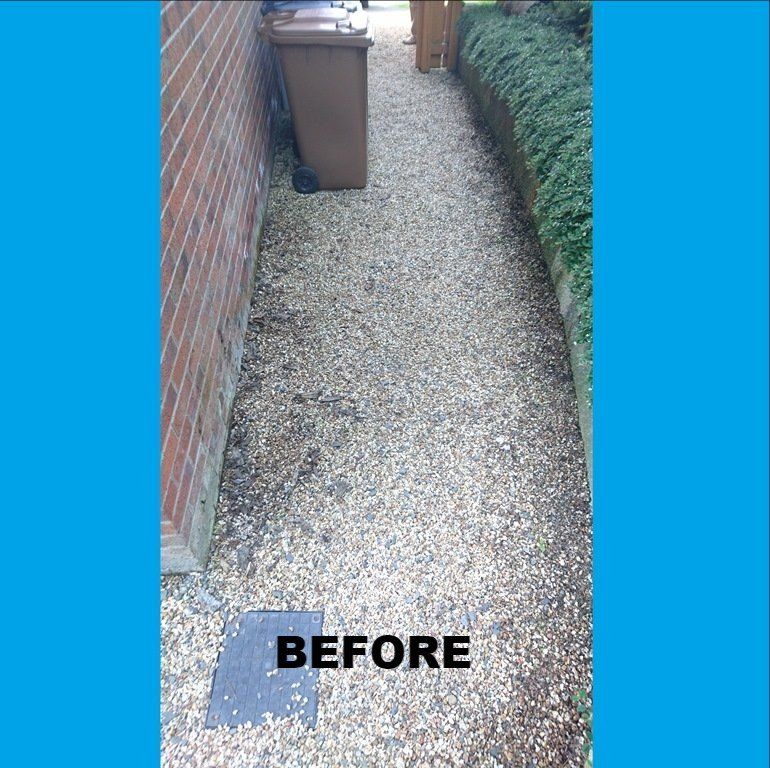

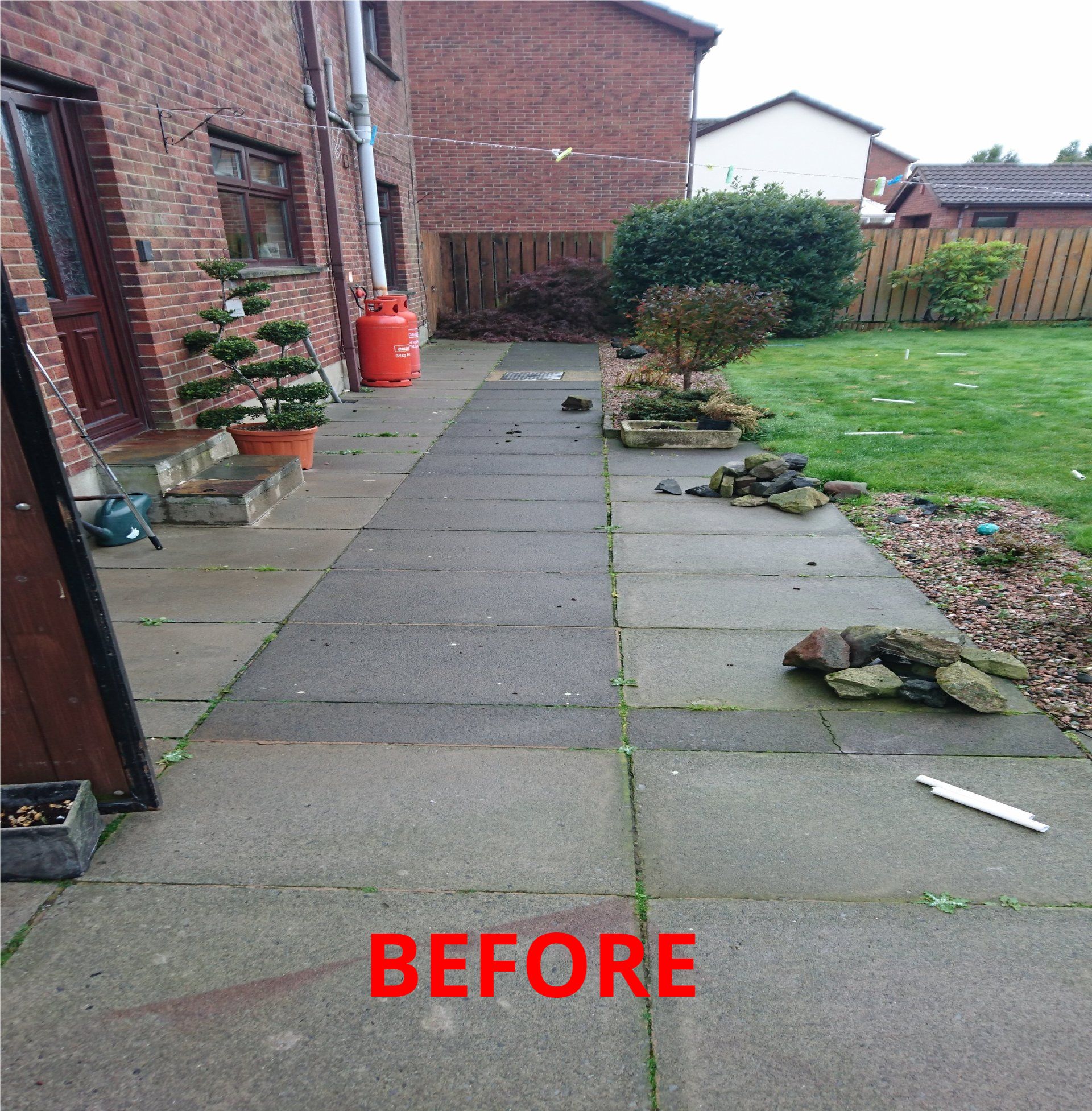

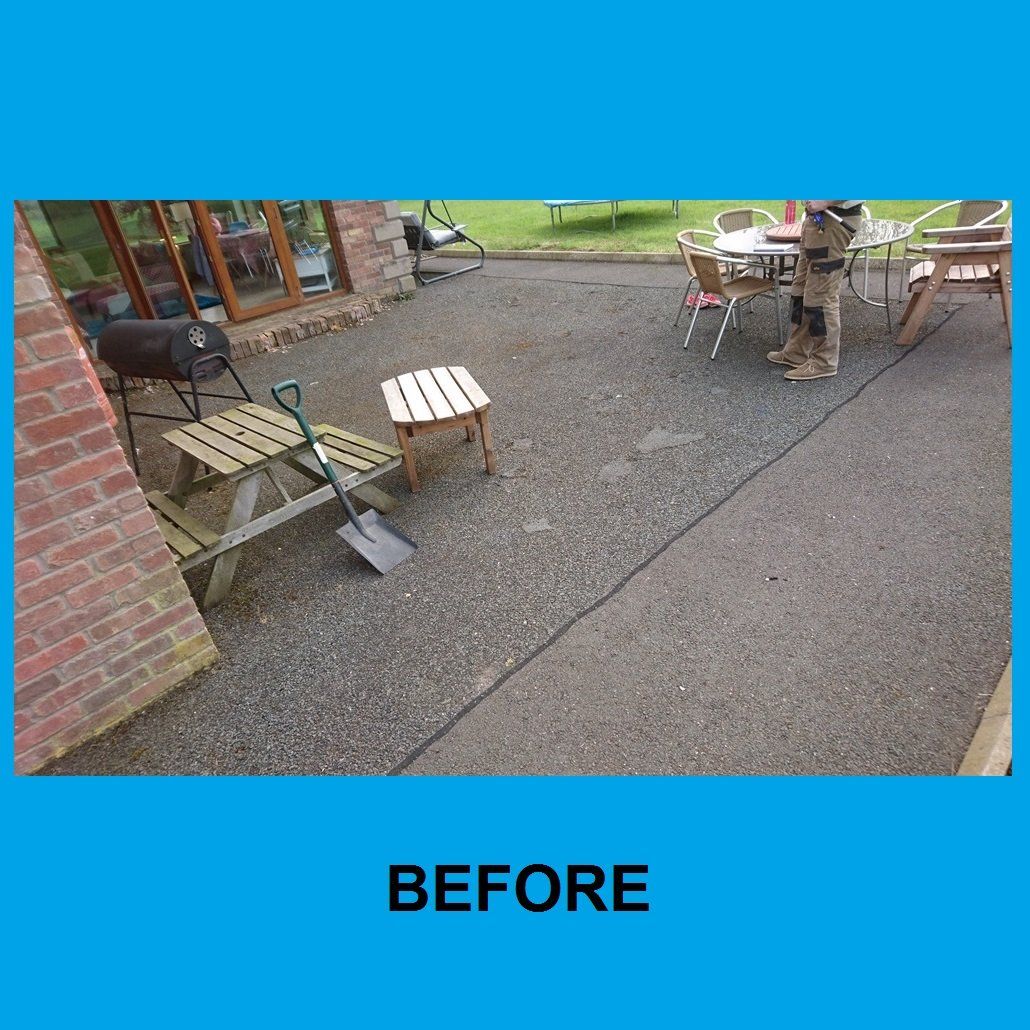

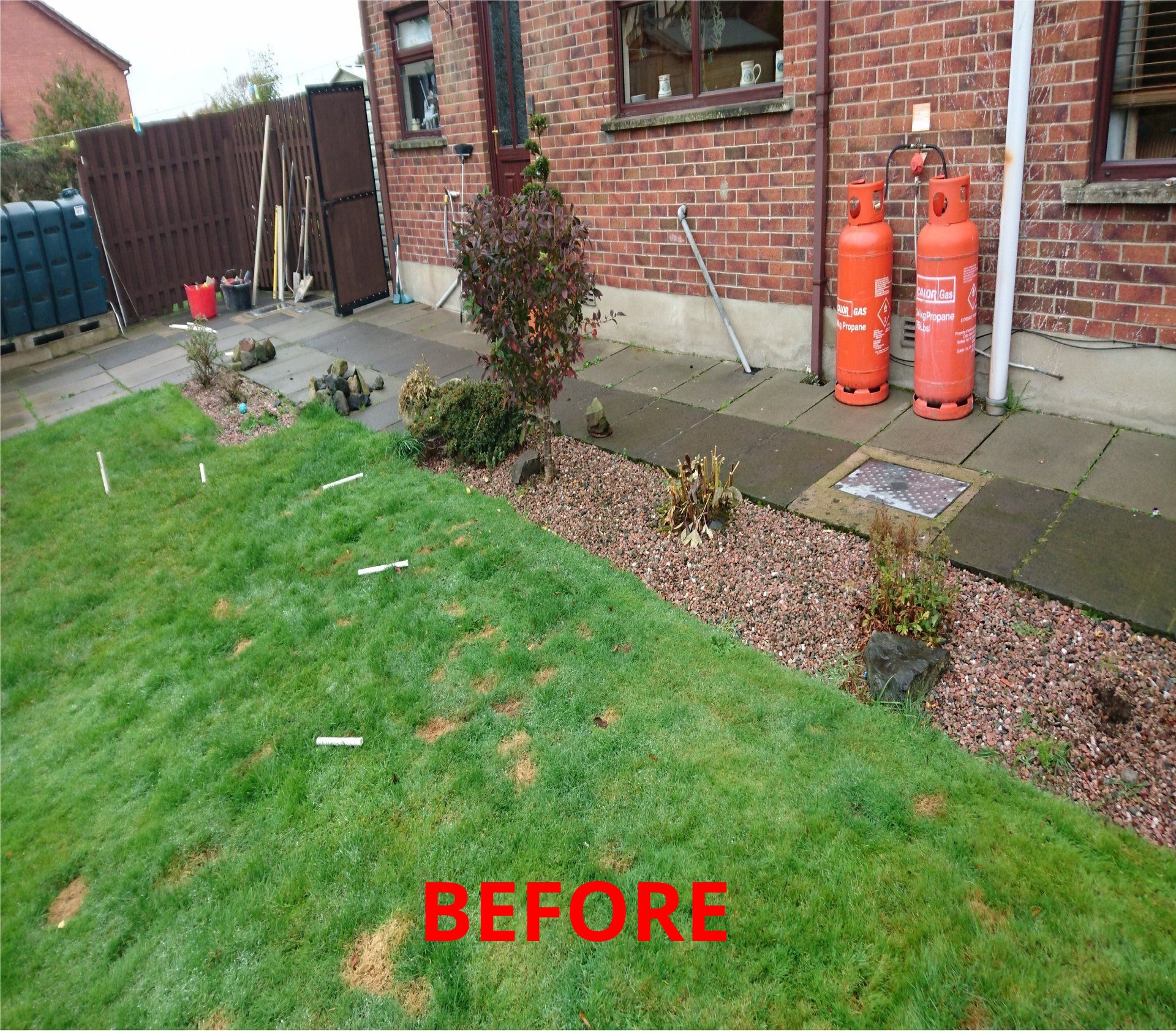

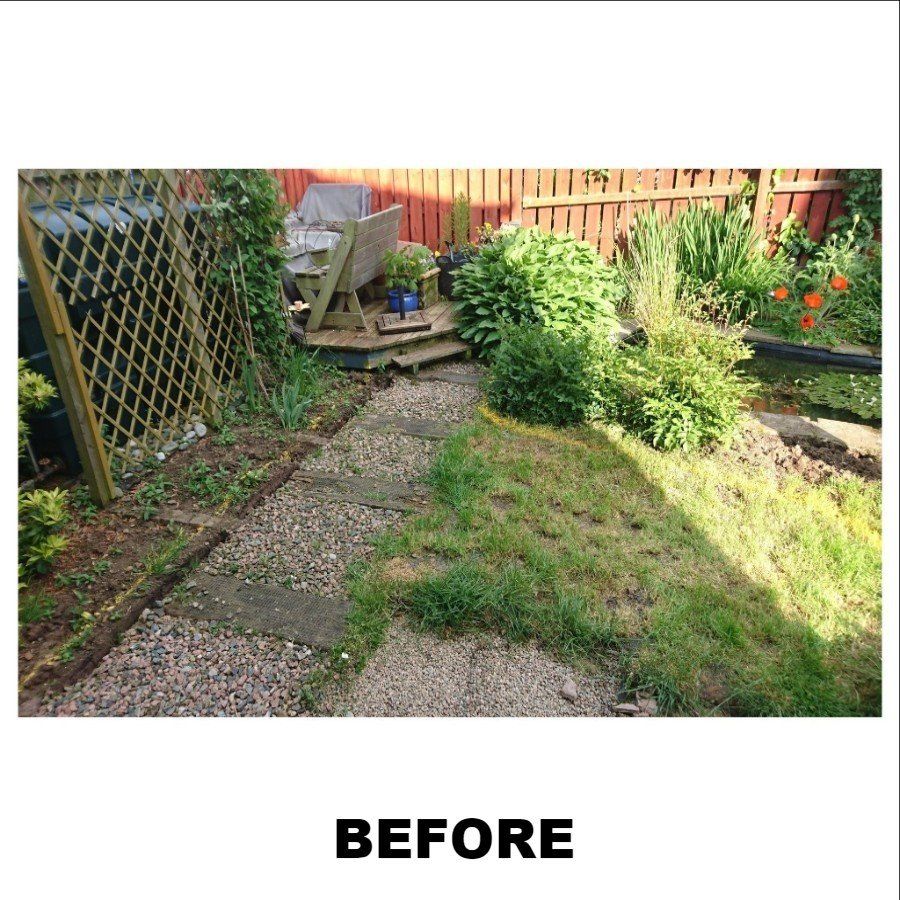

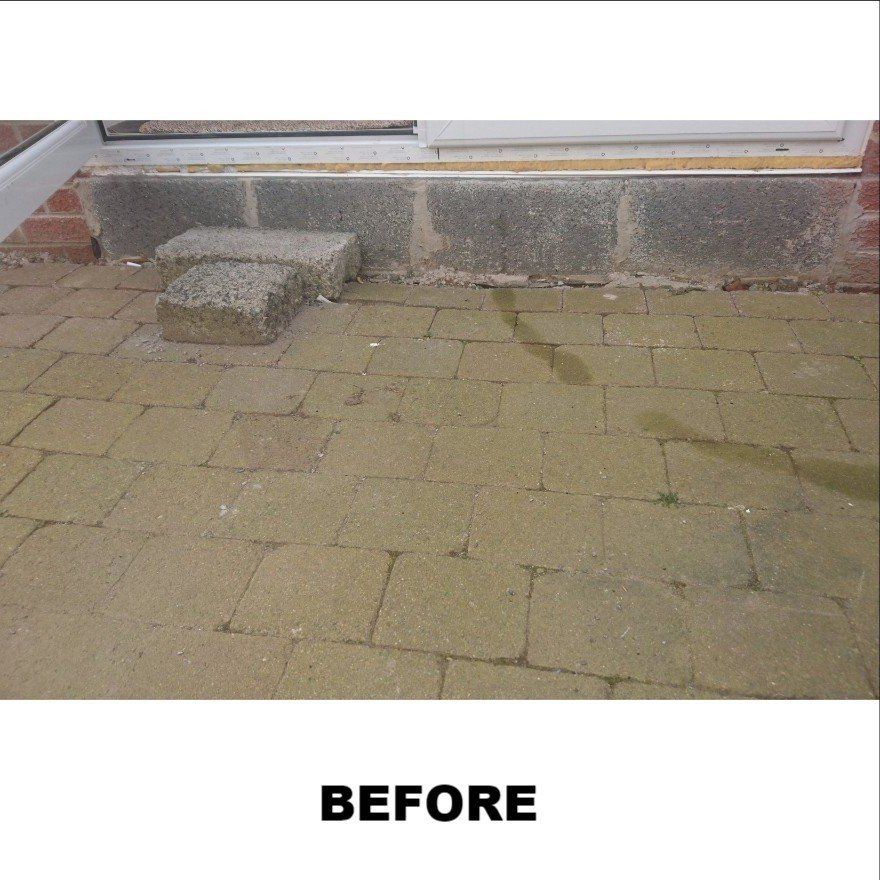

BEFORE

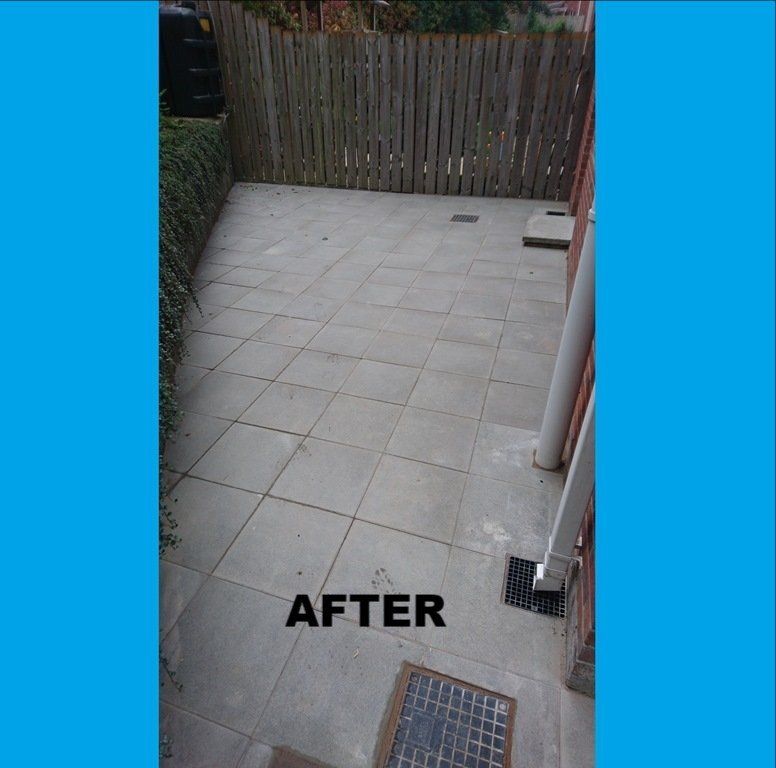

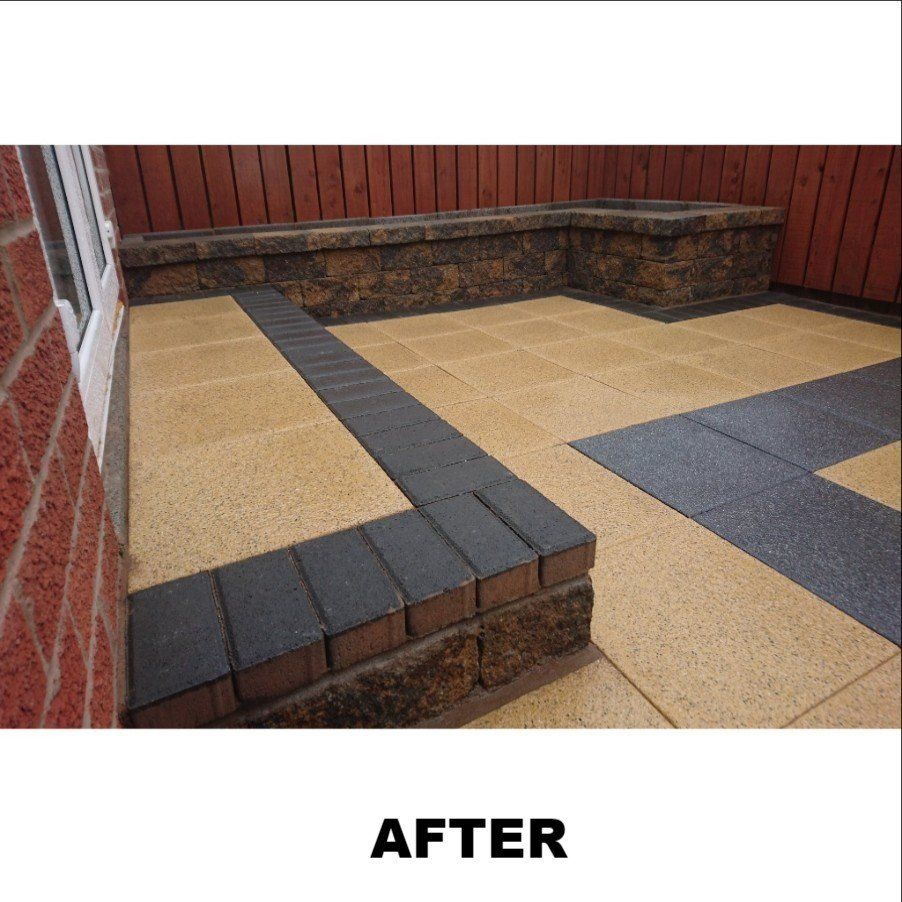

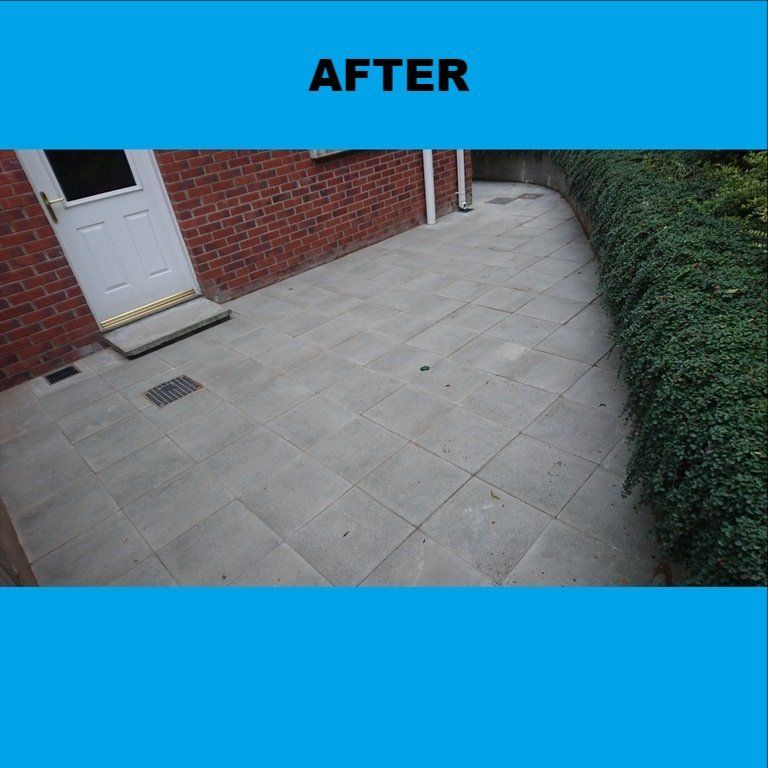

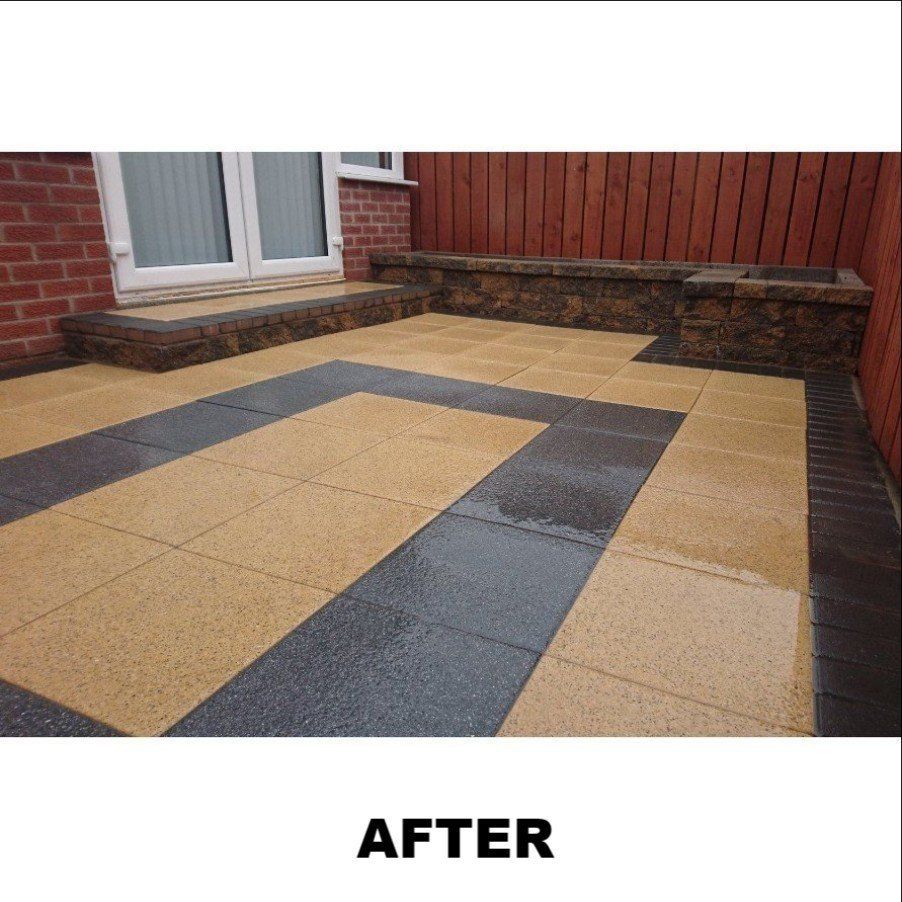

AFTER
Tobermore Tegula Heather - Driveway extension completed 8th May 2018

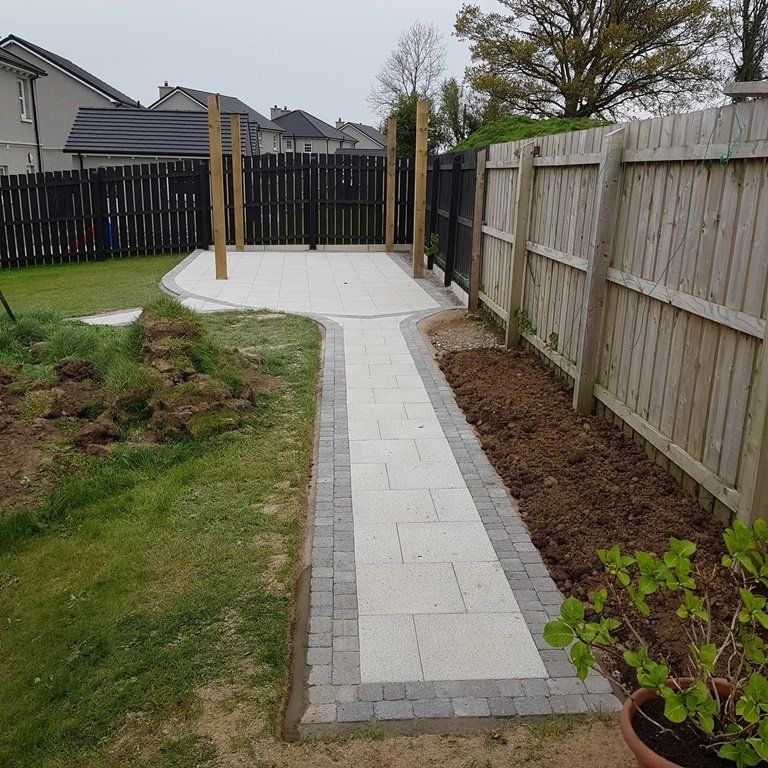

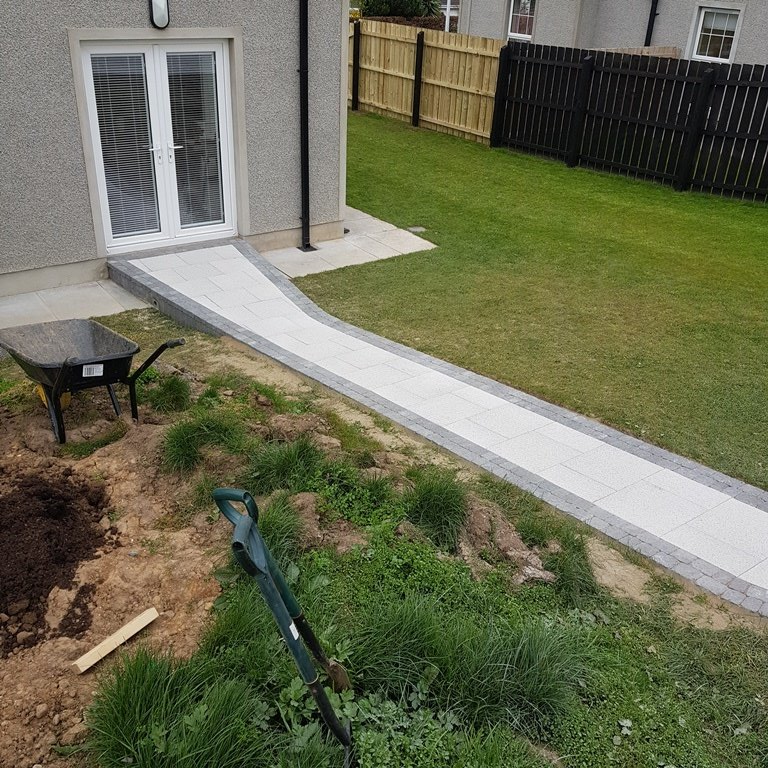

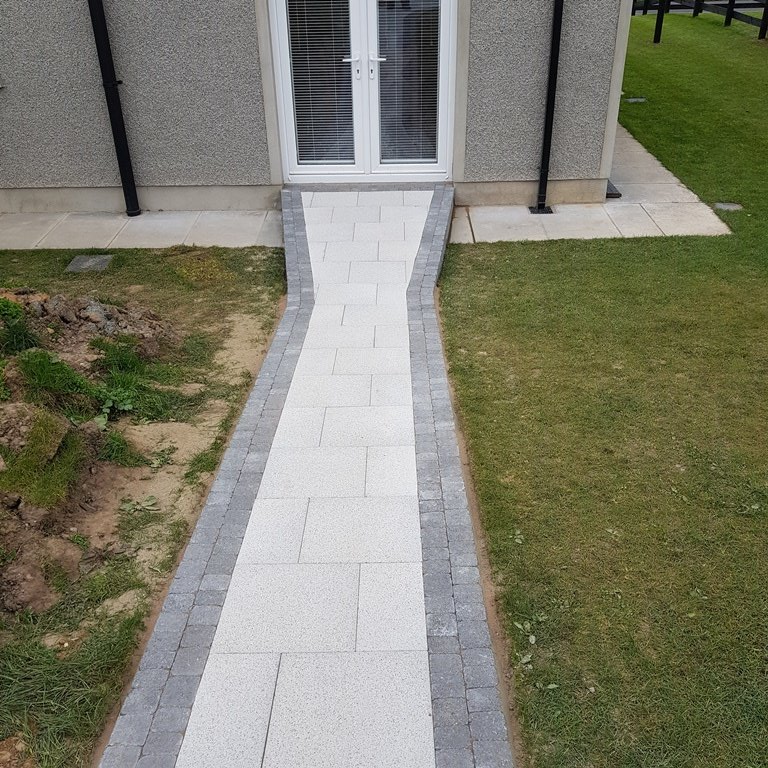

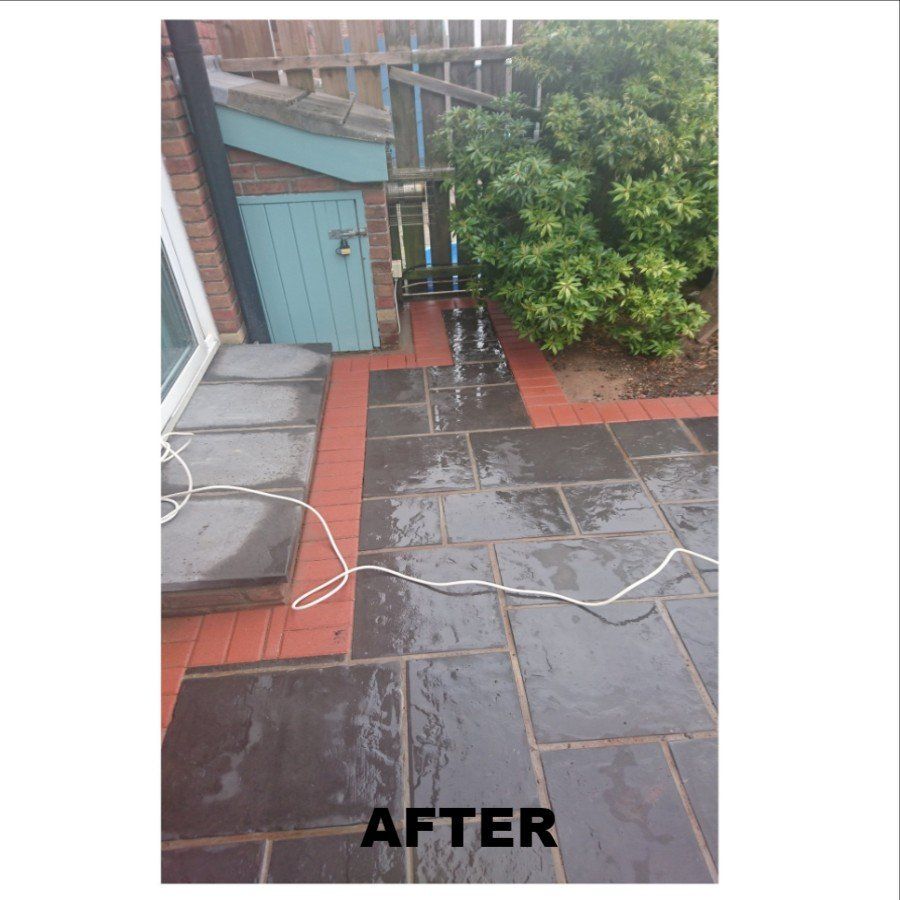

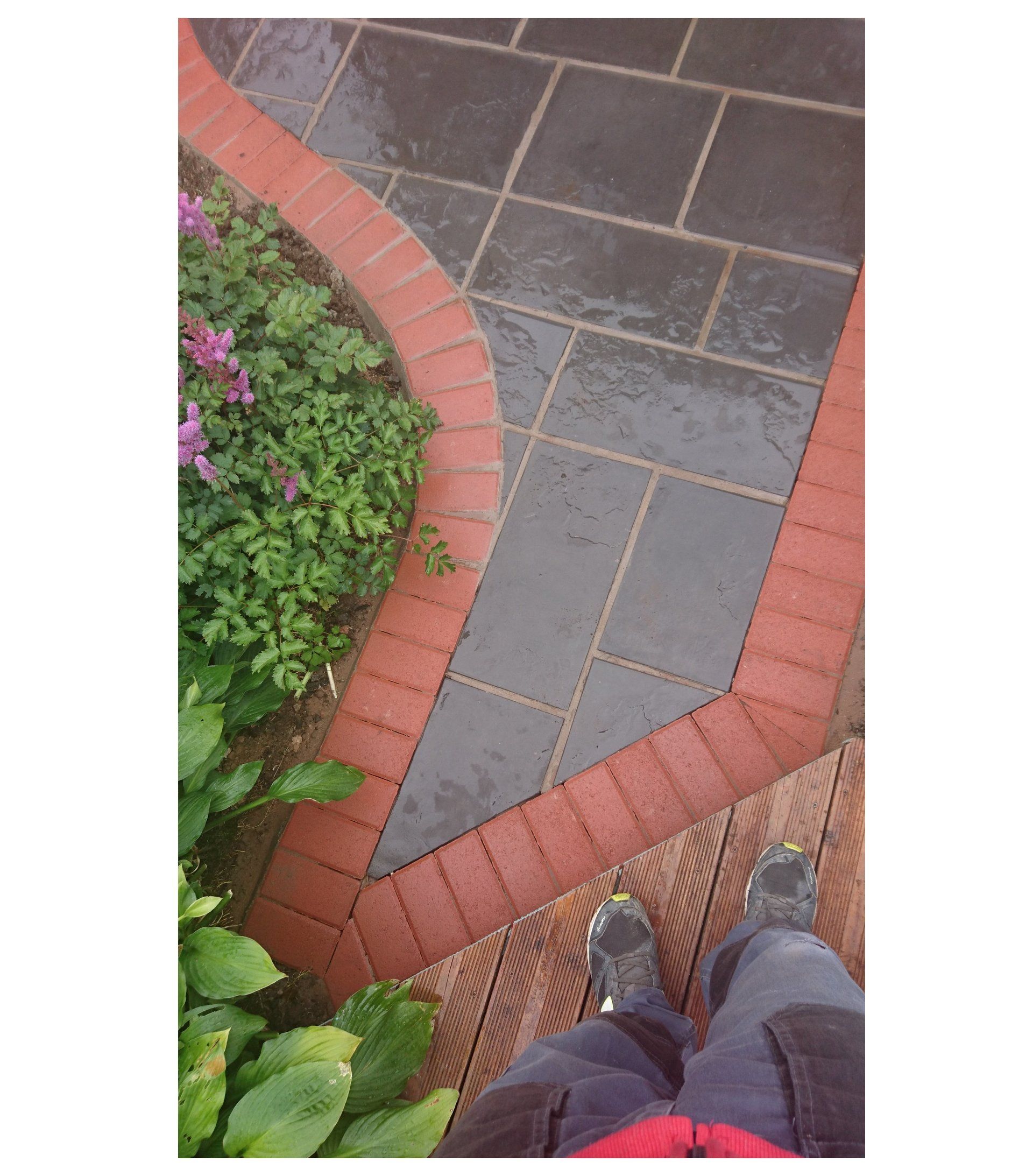

New Path to outdoor shed started 10th May 2018. Standard 3ft x 2ft flags flanked by plum slate decorative stone separated by red 200x100mm red block paving borders. Completed 12 may 2018
PAVING - How it's done

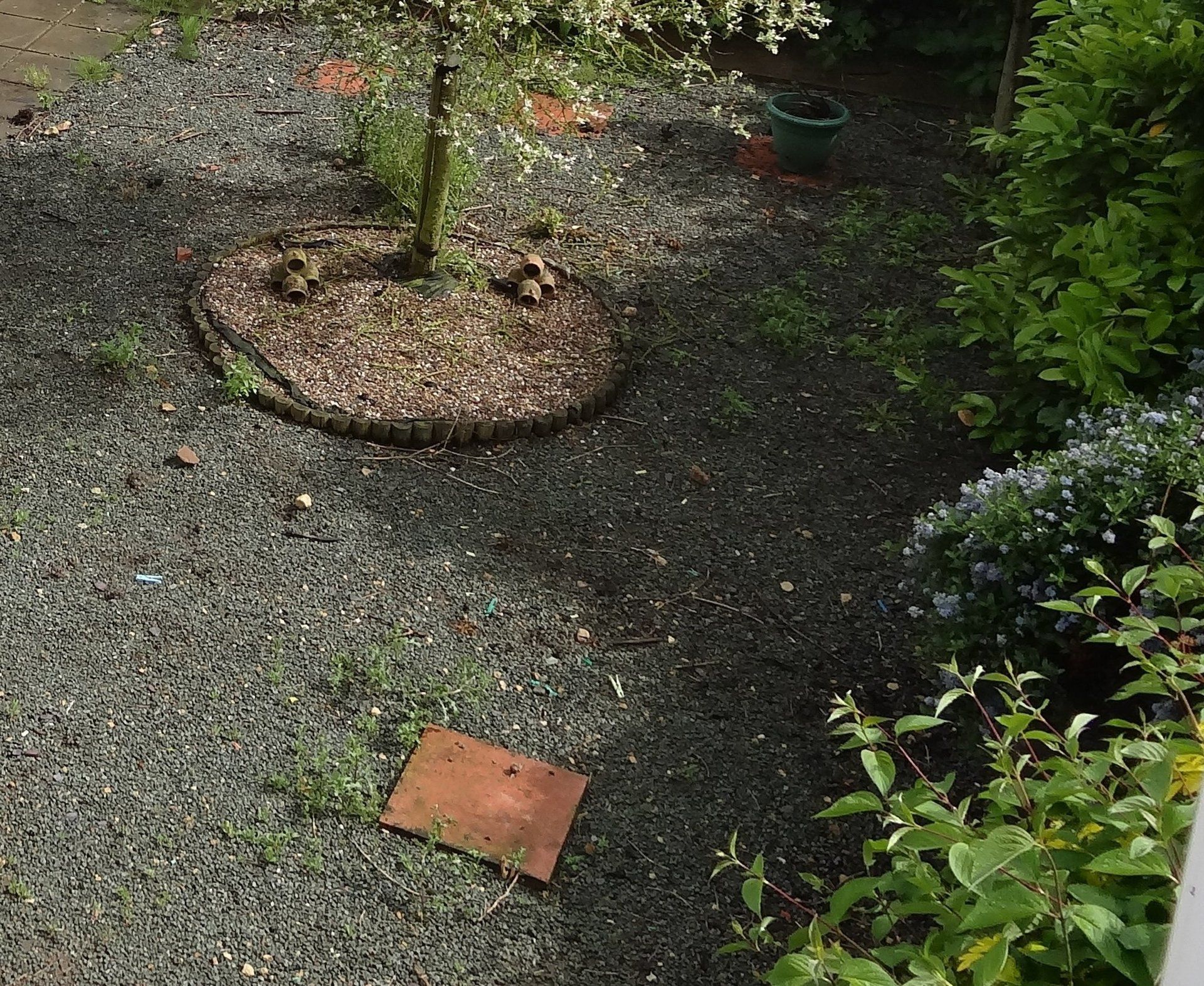

THE AREA TO PAVE
Firstly you need to make sure the area you have chosen is where you want the paving to be. Then you need to assess the ground conditions so that the correct foundation layers can be determined to ensure a solid stable foundation for the paving layer.
If the area has bad drainage, is water logged or the storm water run off is likely flow onto a public area then it is a requirement to install drains that connect into the storm water system or into a soak away.

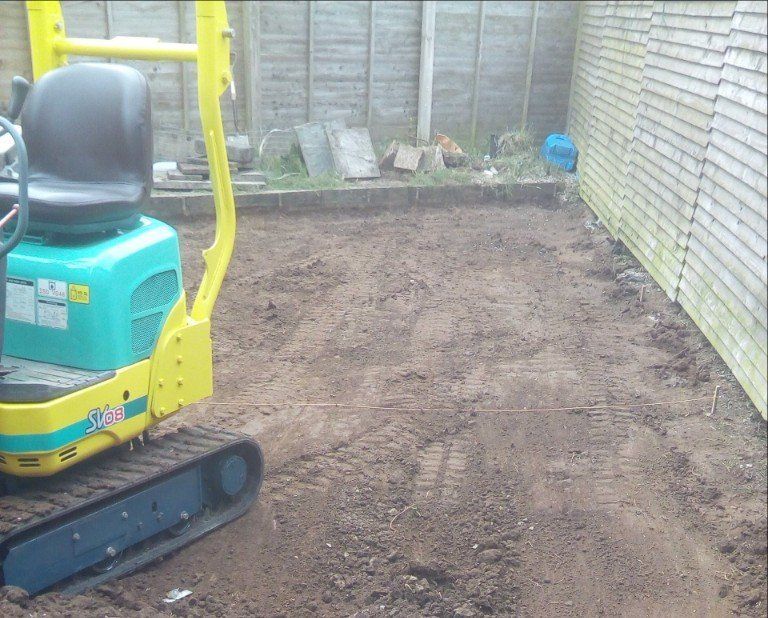

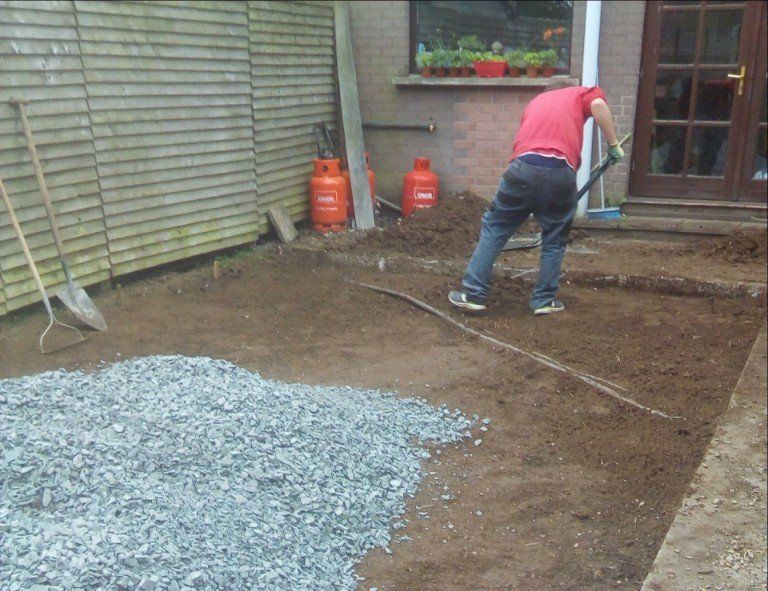

EXCAVATION
Once the area has been determined then the area is excavated to allow for all the different layers to be placed.
The layer design is dependent on the ground conditions and will be determined by your paving specialist but general rule of thumb is 75mm sub-base for areas with no heavy traffic and 150mm for driveways with traffic loads less than 3000kg. Remember once the excavation is at the correct depth it must be leveled and compacted to the correct falls.
LAYERWORKS
On completion of the excavation stage the excavation for the soak away must be dug and the geo-fabric basket must be installed together with pipe work and installation of drainage channels or catch pits. Once the sub-base has been compacted to levels, a layer of geo-fabric is then laid and on top of this the layer of base course is leveled and compacted. A cross section can be seen below.

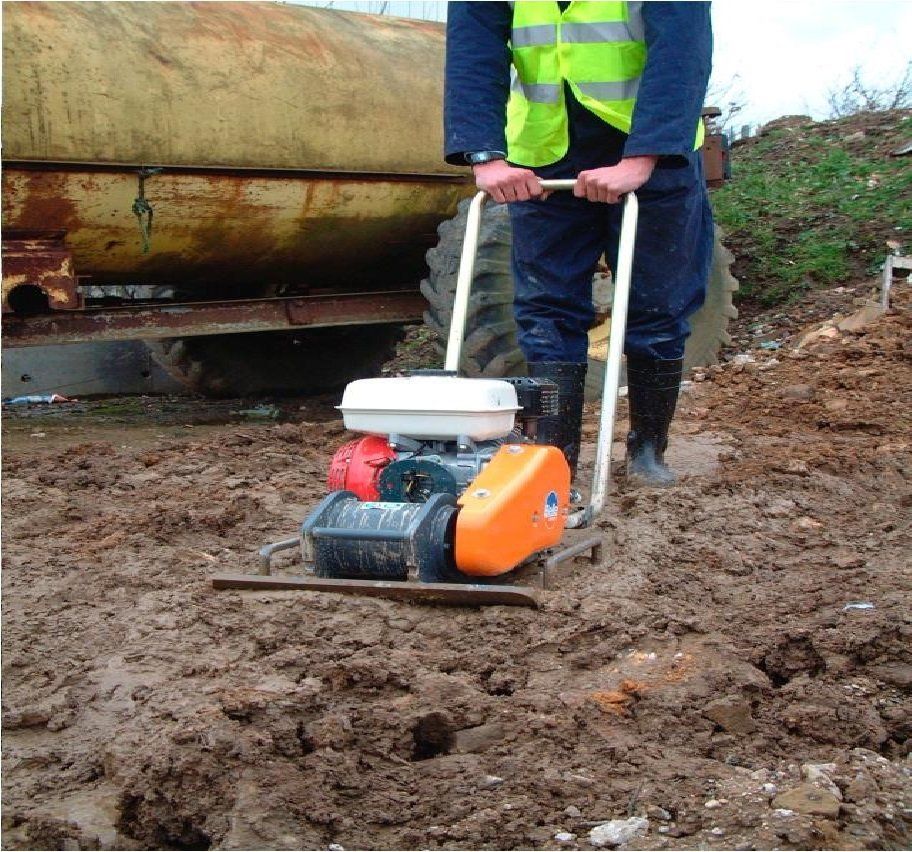

COMPACTION
Compaction is carried out on the sub-grade layer (In-situ ground), then again to the base course layer, the bedding layer then finally over the paved layer, if Paving blocks are used. Flags need to be bedded onto a mortar layer and bedded using a rubber mallet, There are a few variations to the above but generally these are the steps to ensure good compaction and prevent settlement and movement of the paving layer.
KERBING
After the base course layer has been compacted to levels and falls it's time to install a border or kerbing to retain the paving in place. This can be either specific kerbs that have been manufactured for this purpose or you can use a paving block header course as above.

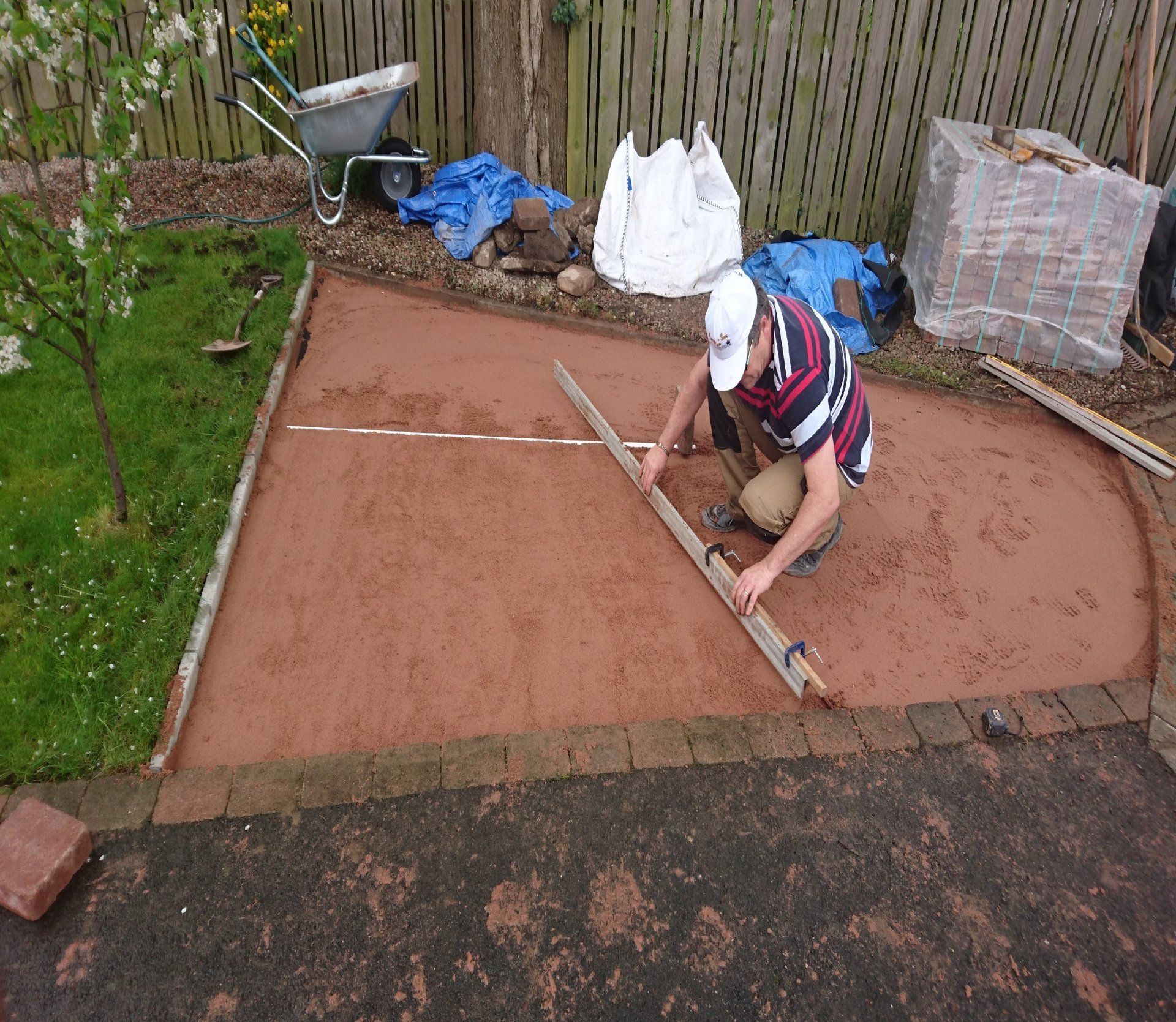

BEDDING LAYER
Once the kerbing has been installed, the sand bedding layer is then placed and leveled with the edge kerb's, remembering that if you want the paving to be level (flush) with the top of the kerb / header coarse, to leave the paver's slightly higher to allow settlement once the final compaction of the paver's is carried out.

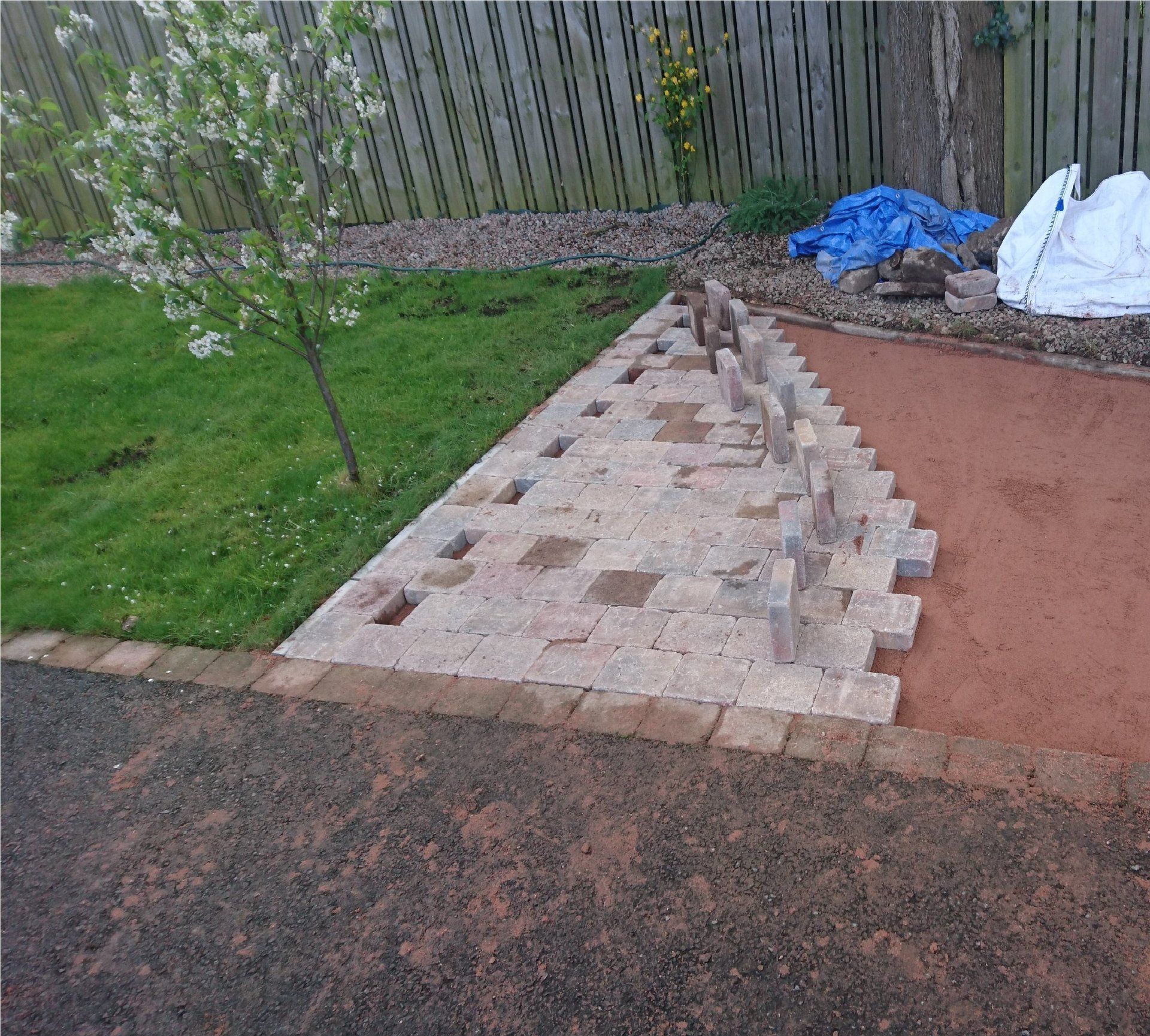

LAYING THE PAVERS
At this stage the paving is laid according to your design and the once boring drab (high maintenance) area is now transformed into a beautiful, low maintenance area whether it's a driveway, patio, path or an area just to get away from mowing the lawn.
FINAL COMPACTION

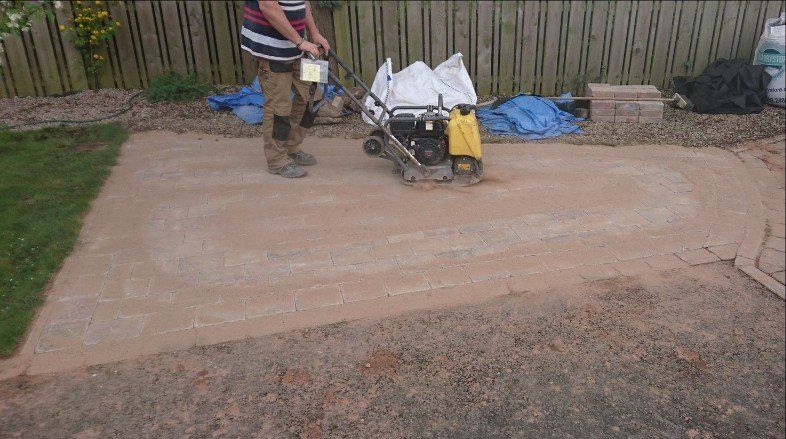

Once the laying of the paving is complete a plate compactor is used to bed and level the pavers into the sand layer. Kiln dried sand is spread over the surface of the paving and after completion of the compaction the fine sand is swept into the joints to lock up the paving. When all the joints have been filled the paving can be hosed down.

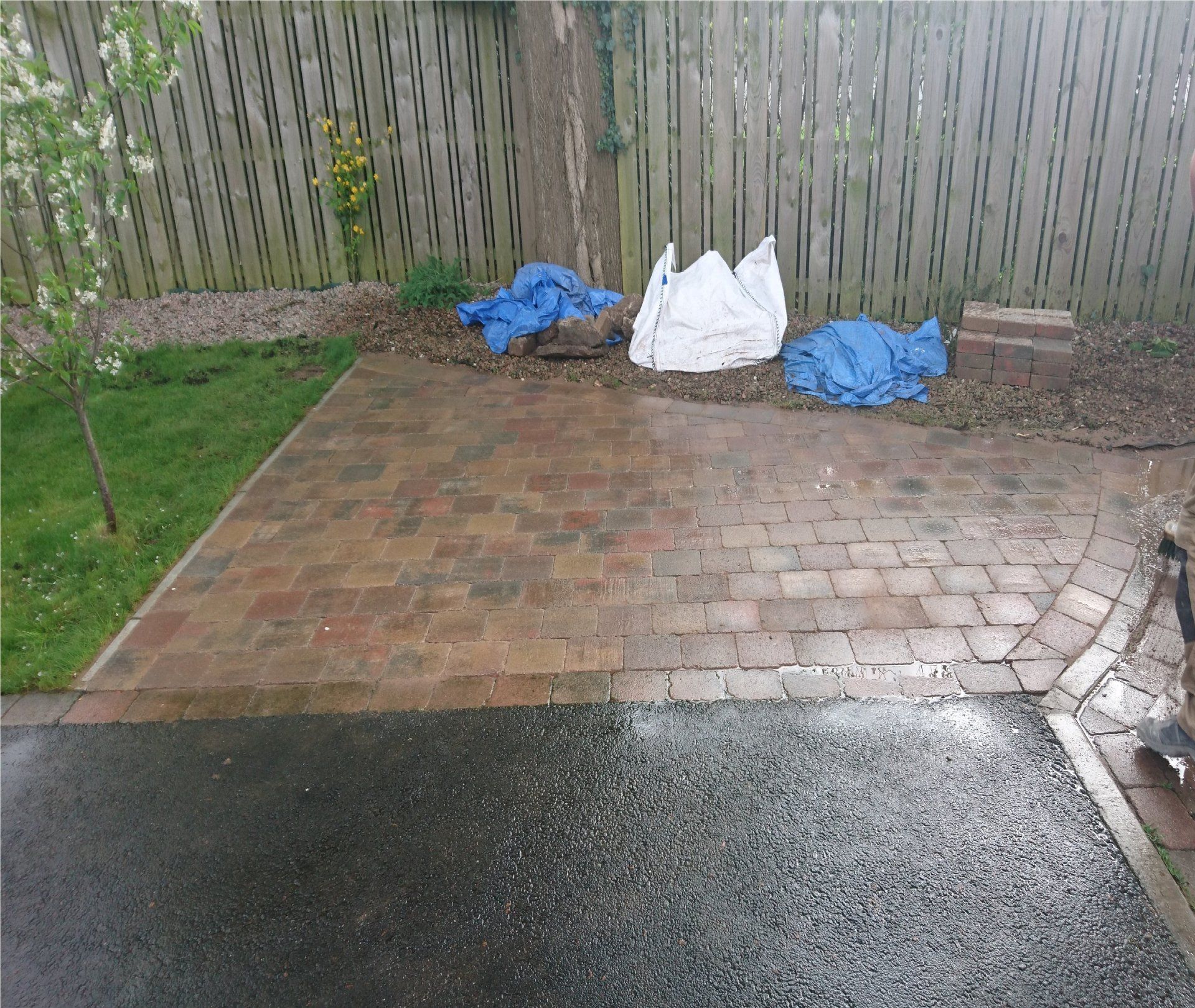

THE FINISHED PRODUCT
